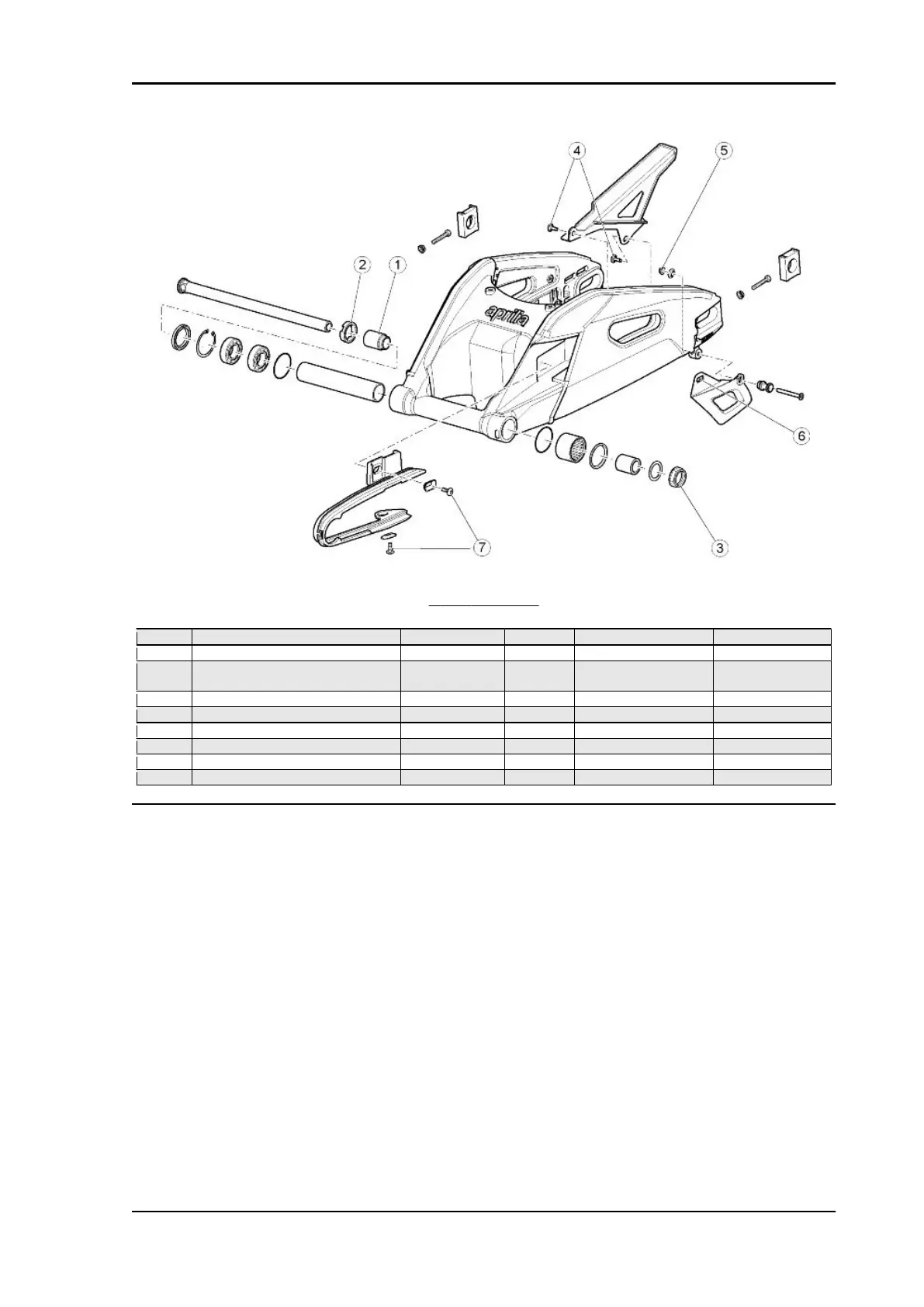

REAR SWINGARM
pos. Description Type Quantity Torque Notes
1 Swingarm regulator bushing M30x1.5 1 12 Nm (8.85 lb ft) -
2 Swingarm ferrule M30x1.5 1 60 Nm (44.25 lb ft) -
3 Fork pin nut M20x1.5 1 65 Nm (47.94 lb ft) AGIP GREASE
SM2
4 Chain guard fastening screws M5 2 4 Nm (2.95 lb ft) -
5 Front chain guide fixing screw M5 1 4 Nm (2.95 lb ft) -
6 Chain guide rear fastening nut M6 1 7 Nm (5.16 lb ft) -
7 Chain feeder shoe fastening screws M5 2 2 Nm (1.48 lb ft) -
- Lower chain shoe fastening screws M6 2 10 Nm (7.38 lb ft) -
- Chain guide fastening screw M6 1 8 Nm (5.90 lb ft) -
