APRILIA TUONO V4 R a-PRC ABS User Manual

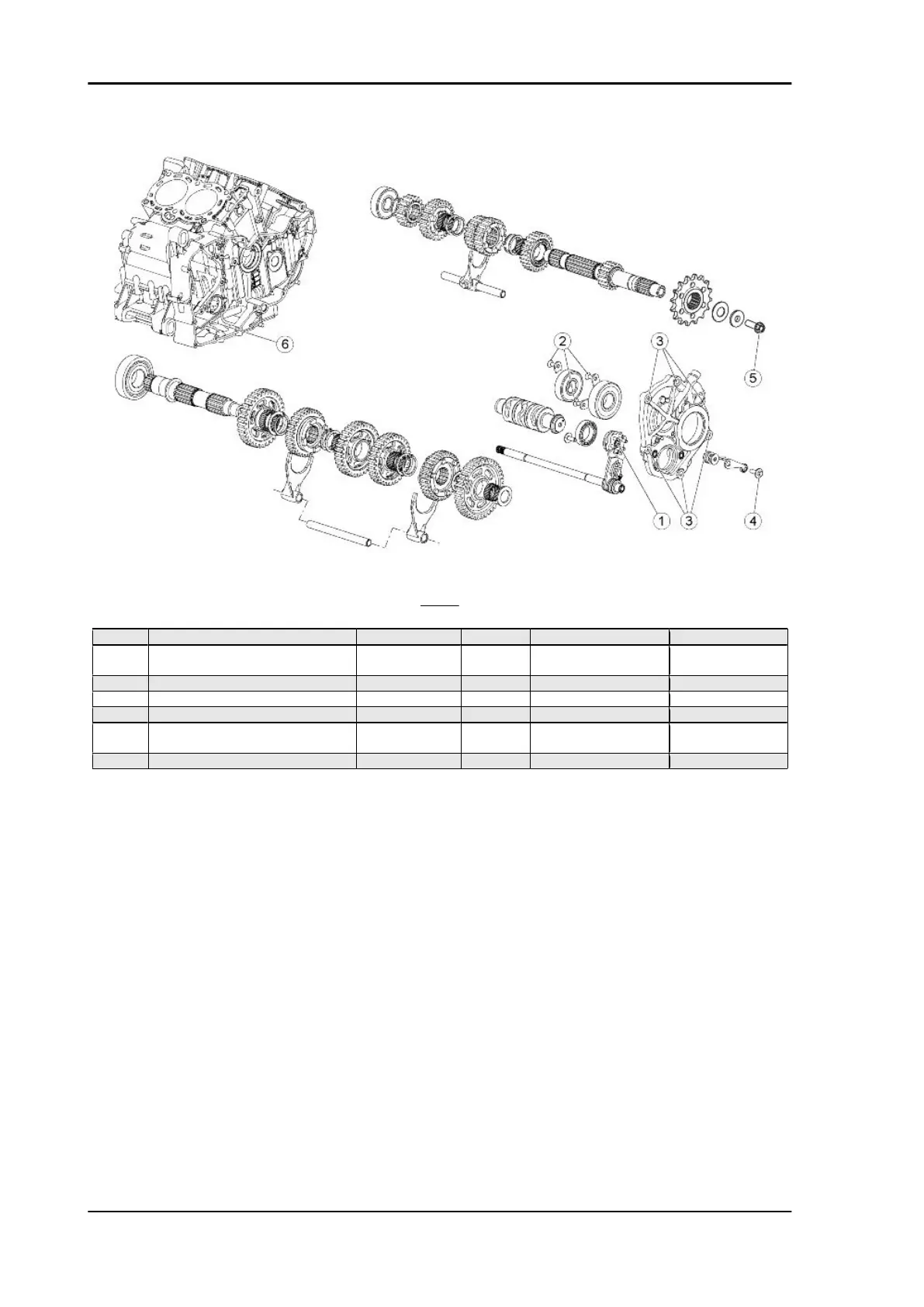

GEAR
pos. Description Type Quantity Torque Notes
1 Star fastening screw M6x20 1 10 Nm (7.38 lb ft) Loct. 243
2 Bearing retaining plate fastening
screw
M6x16 3 10 Nm (7.38 lb ft) Loct. 243
3 Flange fastening screws M8x25 6 25 Nm (18.44 lb ft) -
4 Index lever fixing screw M6 1 10 Nm (7.38 lb ft) Loct. 243
5 Pinion fastening - 1 50 Nm (36.88 lb ft) Loct. 243
6 Screw retaining pre-selector on
crankcase
- 1 25 Nm (18.44 lb ft) Loct. 270
- Gear indicator fixing screw M5x15 2 6 Nm (4.42 lbf ft) -
