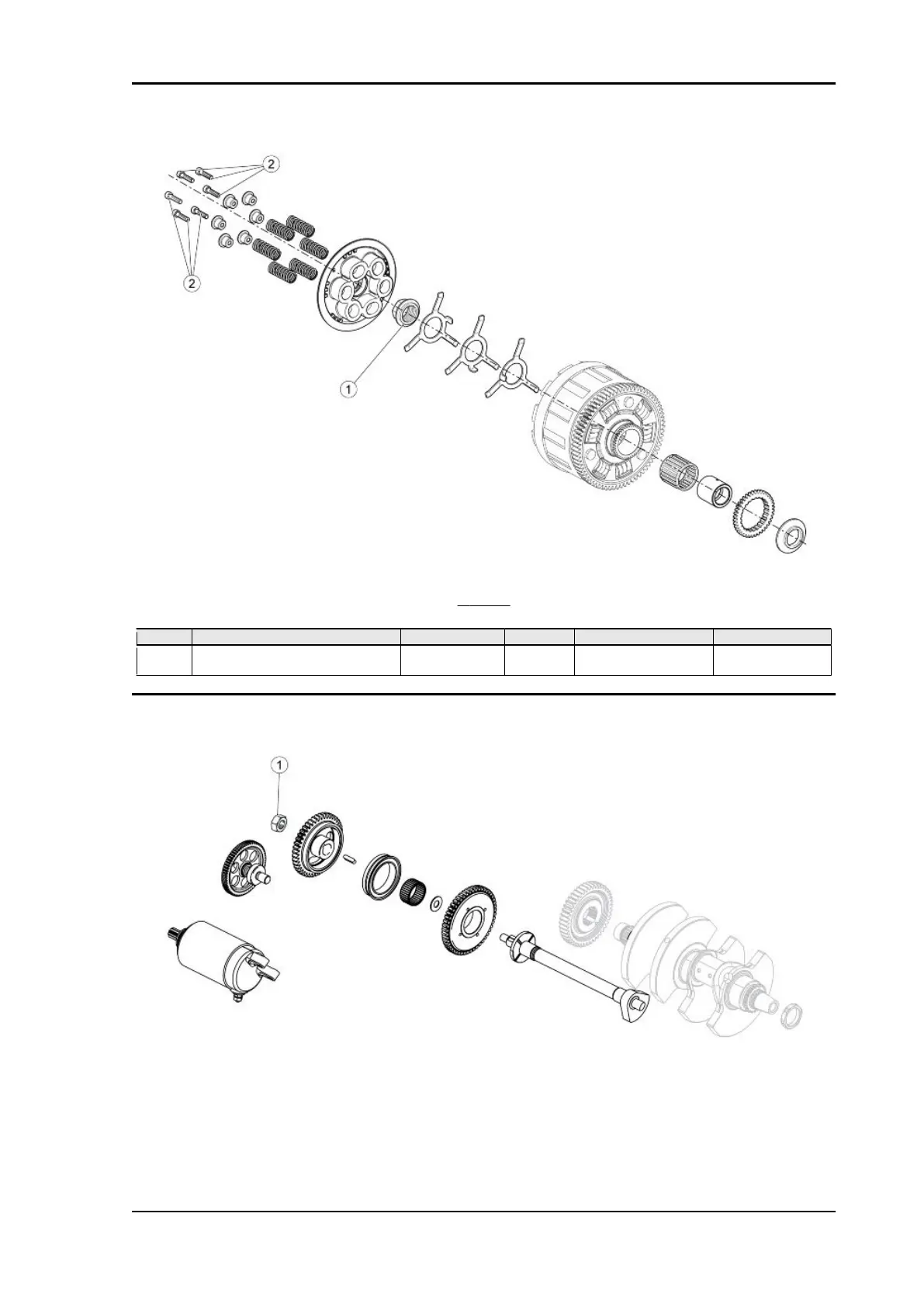

C
LUTCH
pos.
Description
Type
Quantity
Torque
Notes
1
Clutch nut
-
1
150 Nm (110.63 lb ft)
Loct. 243
2
Clutch spring fastener screw
M6
6
10 - 12 Nm (7.38 - 8.85
lb ft)
-
TUONO V4 R a-PRC ABS
Characteristics
CHAR - 47
46
48
