IGNITION UNIT
pos. Description Type Quantity Torque Notes
1 Hex headed nut cl.10 type 2 iso 8674 M10x1 1 50 Nm (36.88 lb ft) Loct. 243

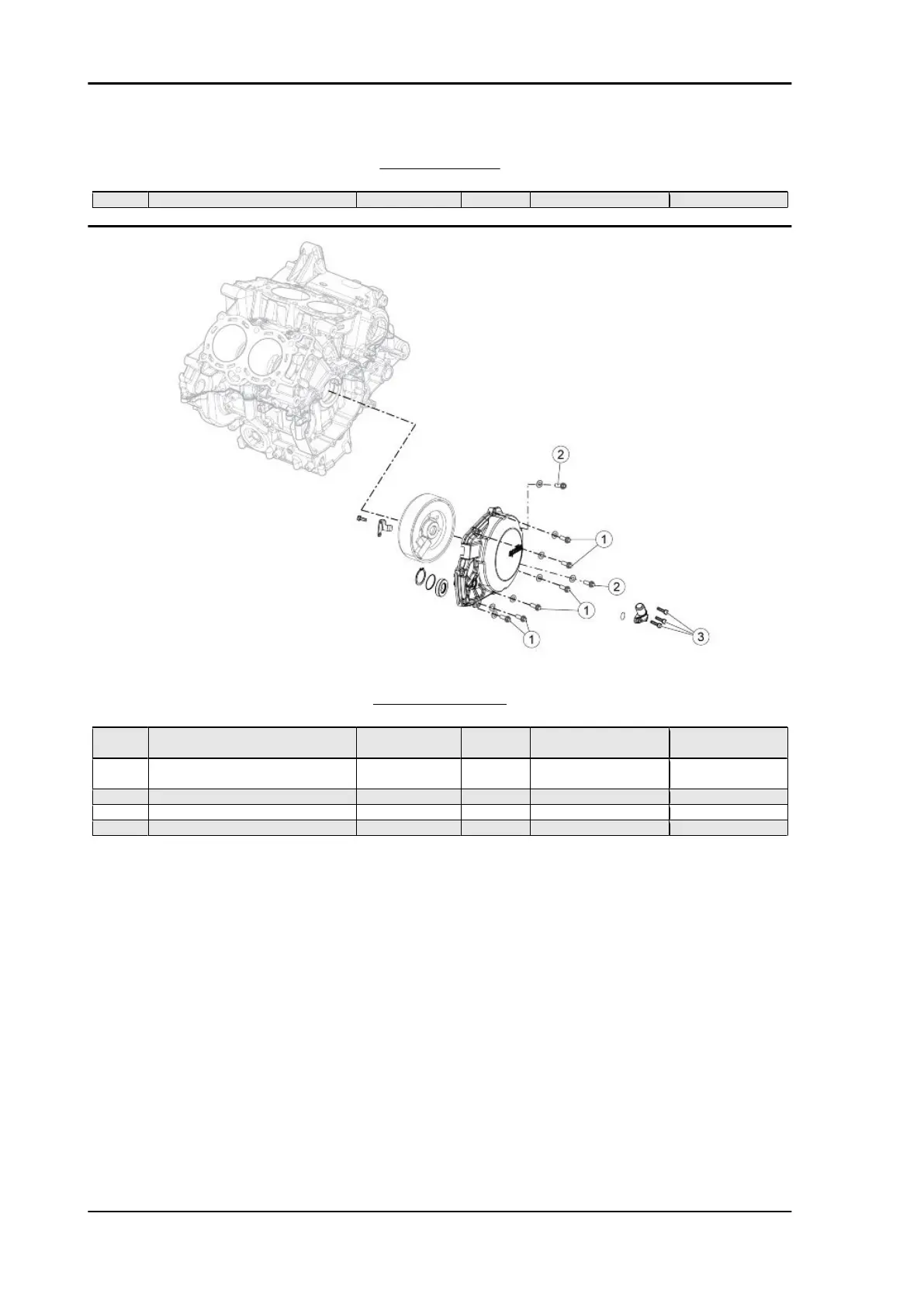

ALTERNATOR COVER
pos. Description Type Quantity Torque Notes
1 Screws fastening cover onto centre
pins
M6x25 6 12 Nm (8.85 lbf ft) -
2 Cover fastener screws, alternator
side
M6x40 2 12 Nm (8.85 lbf ft) -
3 Blow-by union fastener screws M5x16 3 7 Nm (5.16 lb ft) -
- Stator fixing screw UNI 5931 CL8.8 M6x25 3 10 Nm (7.37 lbf ft) Loct. 243
- Flanged screw M5x12 1 6 Nm (4.42 lbf ft) Loct. 243
