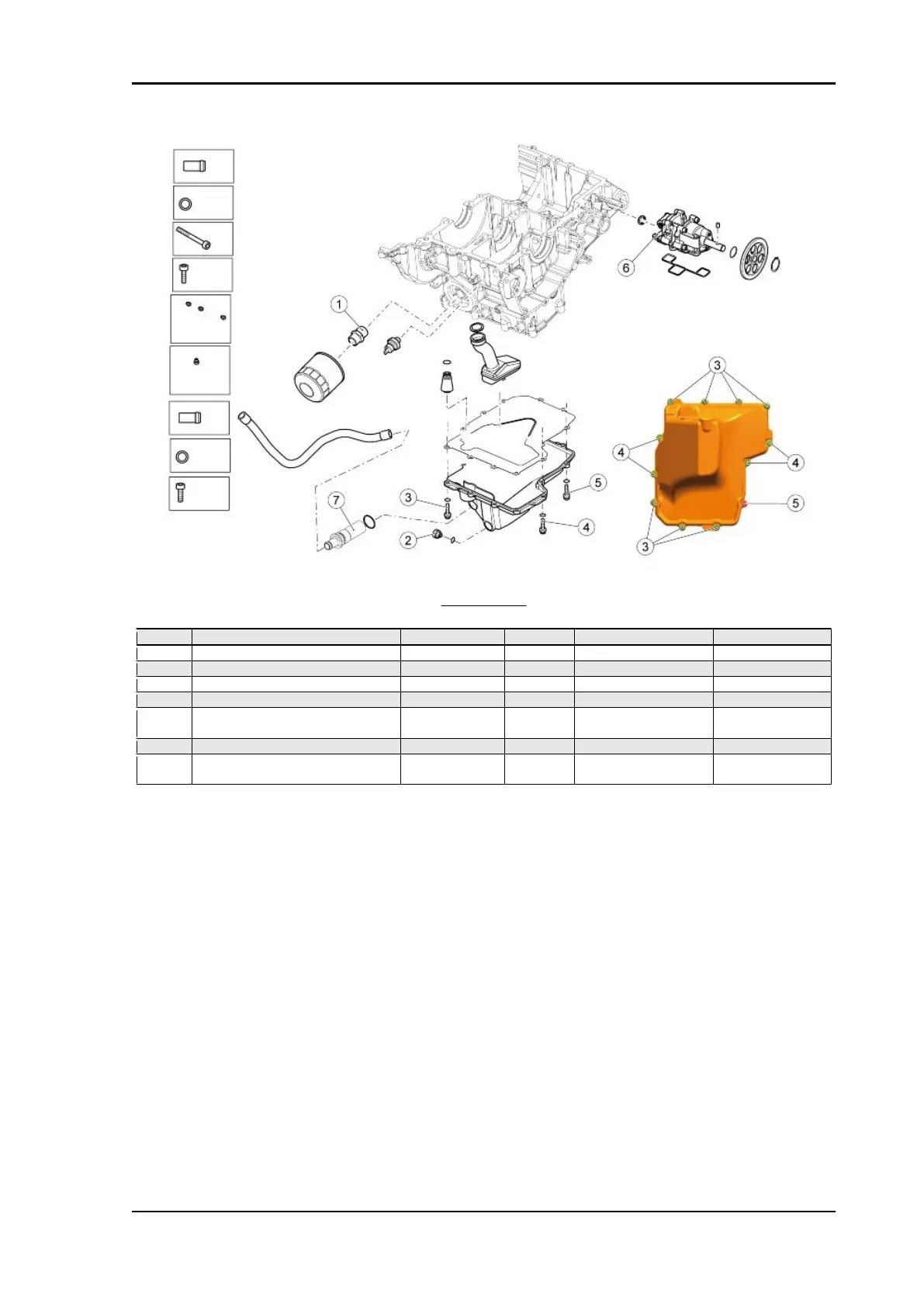

LUBRICATION
pos. Description Type Quantity Torque Notes
1 Oil filter coupling fastening screw - 1 30 Nm (22.13 lb ft) -
2 Oil drainage plug - 1 30 Nm (22.13 lb ft) -
3 Oil sump fixing screws M6x30 7 12 Nm (8.85 lb ft) -
4 Oil sump fixing screws M6x22 4 12 Nm (8.85 lb ft) -
5 Oil sump fixing screws M6x25 1 12 Nm (8.85 lb ft) -
6 Screws fastening the pump to the
crankcase
M6 5+1 10 Nm (7.37 lb ft) -
7 Oil pipe union fixing screw M6 1 8 Nm (5.90 lb ft) Loct. 243
- Screw fastening the diffuser in the oil
sump
- 1 10 Nm (7.38 lb ft) -
TUONO V4 R a-PRC ABS Characteristics
CHAR - 49
