Integration Test Registers
ARM DDI 0363G Copyright © 2006-2011 ARM Limited. All rights reserved. 13-8
ID073015 Non-Confidential

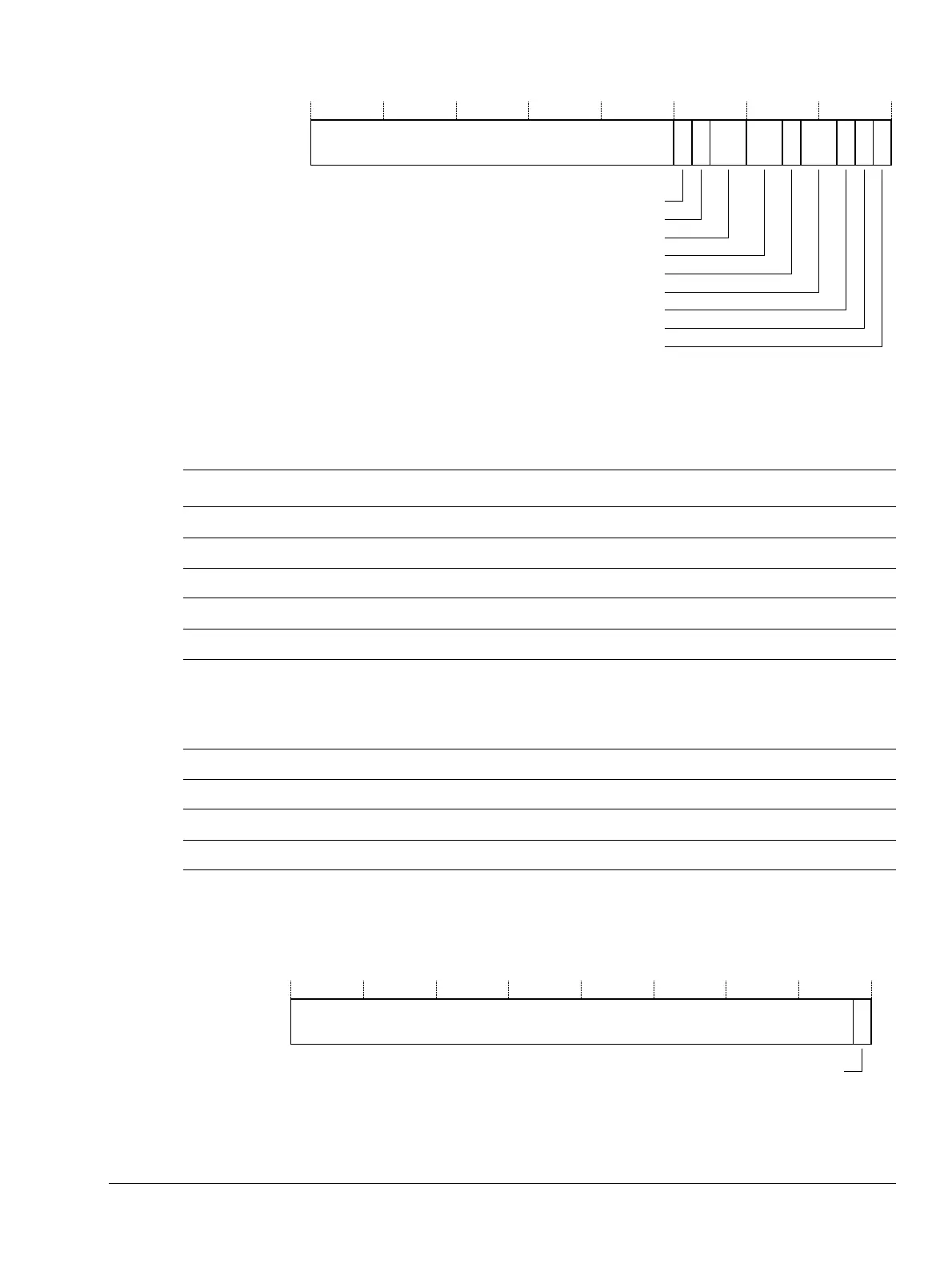

Figure 13-3 DBGITMISCIN Register bit assignments
Table 13-6 lists the register bit assignments for the DBGITMISCIN Register.
13.3.6 Integration Mode Control Register
The DBGITCTRL Register, register
0x3C0
at offset
0xF00
, is read/write. Figure 13-4 shows the
register bit assignments.
Figure 13-4 DBGITCTRL Register bit assignments
Reserved
31 10 9 8 7 4 3 2 0
ETMEXTOUT[1:0]
65
Reserved
nETMWFIREADY
Reserved
nFIQ
nIRQ
EDBGRQ
Reserved
DBGRESTART
1112 1
Table 13-6 DBGITMISCIN Register bit assignments
Bits Name Function
[31:12] - Reserved. Read Undefined.
[11] DBGRESTART Read value of the DBGRESTART input pin.
[10] - Reserved. Read Undefined.
[9:8] ETMEXTOUT Read value of the ETMEXTOUT[1:0] input pins.
[7:6] - Reserved. Read Undefined.
[5] nETMWFIREADY Reads the nETMWFIREADY input pin. Although this pin is active LOW, the value of
this bit matches the physical state of the signal:
0 = input pin is LOW (asserted)
1 = input pin is HIGH (deasserted).
[4:3] - Reserved. Read Undefined.
[2] nFIQ Read value of nFIQ input pin.
[1] nIRQ Read value of nIRQ input pin.
[0] EDBGRQ Read value of EDBGRQ input pin.
Reserved
31 0
1
INTMODE
