11.1.5.2 Monitoring

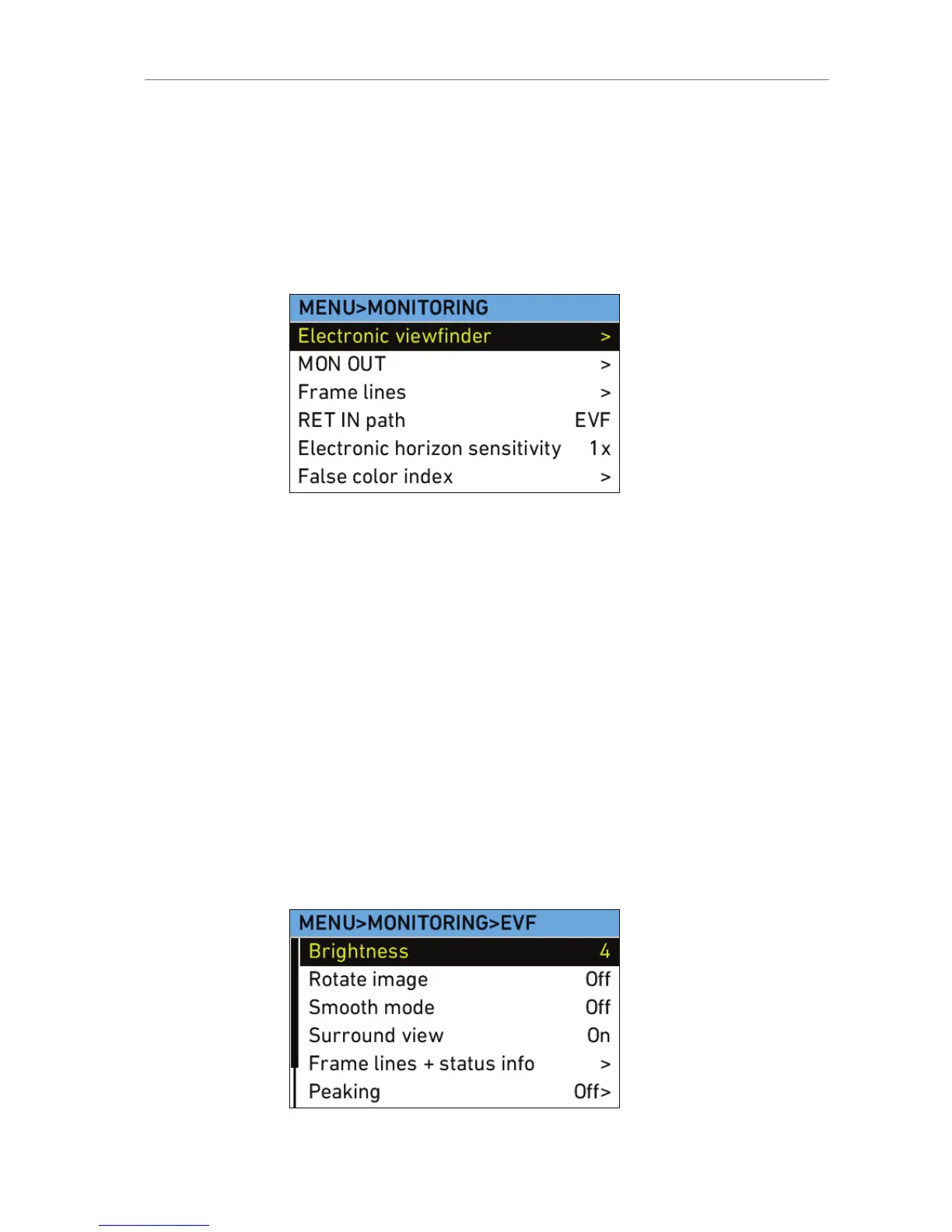

Select the Monitoring submenu to adjust parameters for monitoring on
the EVF-1 and over the MON OUT output. These outputs are meant for
monitoring and not recording.
Frame lines set in the Frame lines submenu apply to both MON OUT
and EVF-1. Select the Electronic viewfinder and MON OUT submenus to
switch the set frame lines on or off individually.
Electronic
viewfinder
Select to adjust EVF-1 settings.
MON OUT Select to adjust MON OUT settings.
Frame lines Select to set up frame lines.
RET IN path Select to set which of the monitoring output paths
carries the signal at the RET IN connector as
Return in active is toggled via a USER button.
Electronic
horizon
sensitivity
Select to adjust the sensitivity of the electronic
horizon.
Note: Available on ALEXA Plus, ALEXA Plus 4:3,
ALEXA Studio , ALEXA M, ALEXA XT Plus, ALEXA
XT M, ALEXA XT Studio and ALEXA HD Plus only
False color
index
Select to open the FALSE COLOR INDEX screen
which has a reference chart explaining the false
color coding for EVF and MON OUT.
Electronic Viewfinder

ARRI ALEXA Series Specifications

General

Dynamic Range	14+ stops
Resolution	4.5K (ALEXA LF), 6.5K (ALEXA 65)
Recording Formats	ARRIRAW, Apple ProRes
Lens Mount	PL mount
Viewfinder	Optional EVF (Electronic Viewfinder)
Sensor Size	Super 35 (most models), Large Format (ALEXA LF, ALEXA 65)
ISO Range	EI 160 - EI 3200 (Base ISO 800)
