Connector Pin Outs Appendix 253

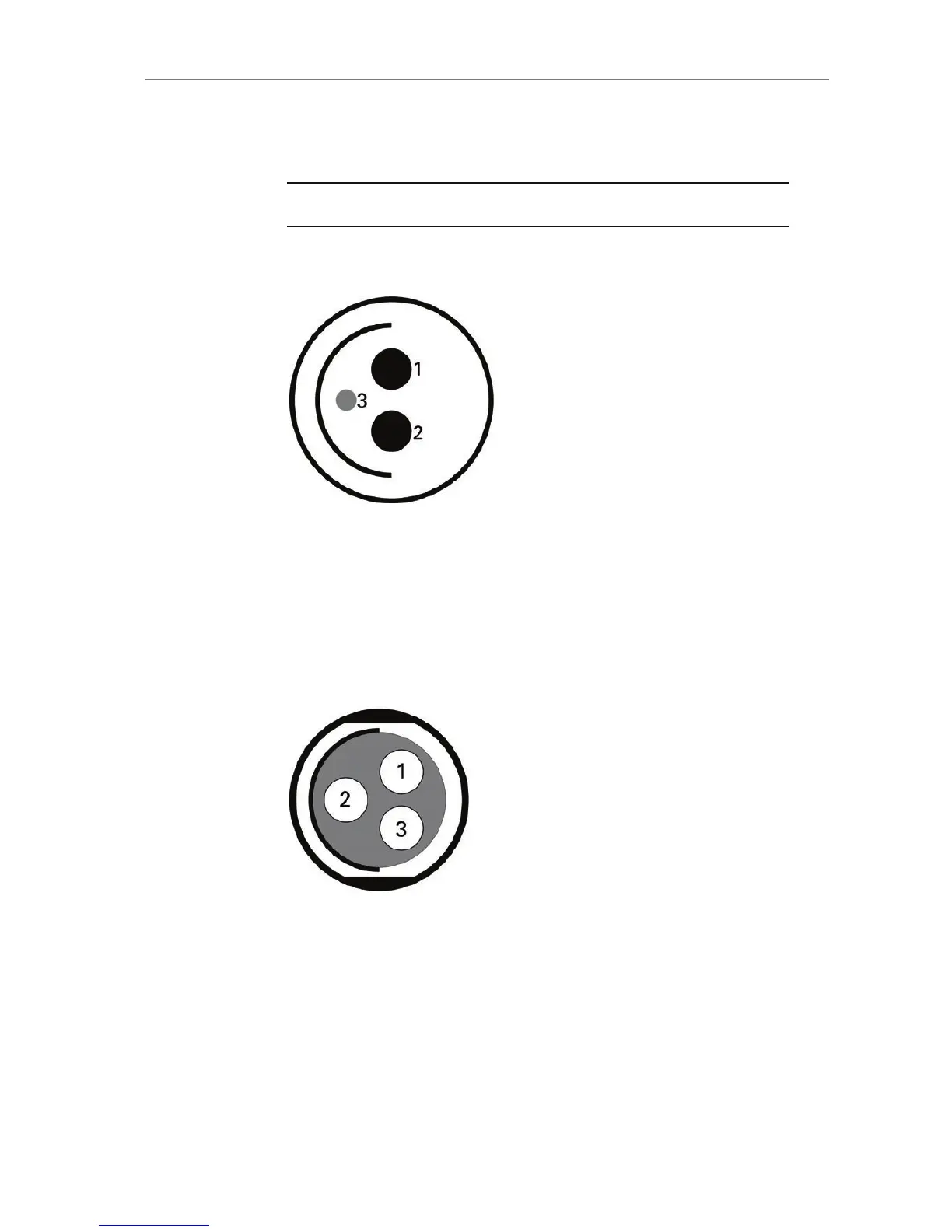

A.2 Connector Pin Outs
Note: The drawings of the connectors are not to scale.
BAT
1 GND
2 +24V
3 BAT-COM
RS
1 GND
2 24V-AUX
3 R/S
