ARRI ALEXA Series User Manual

Main Controls 95

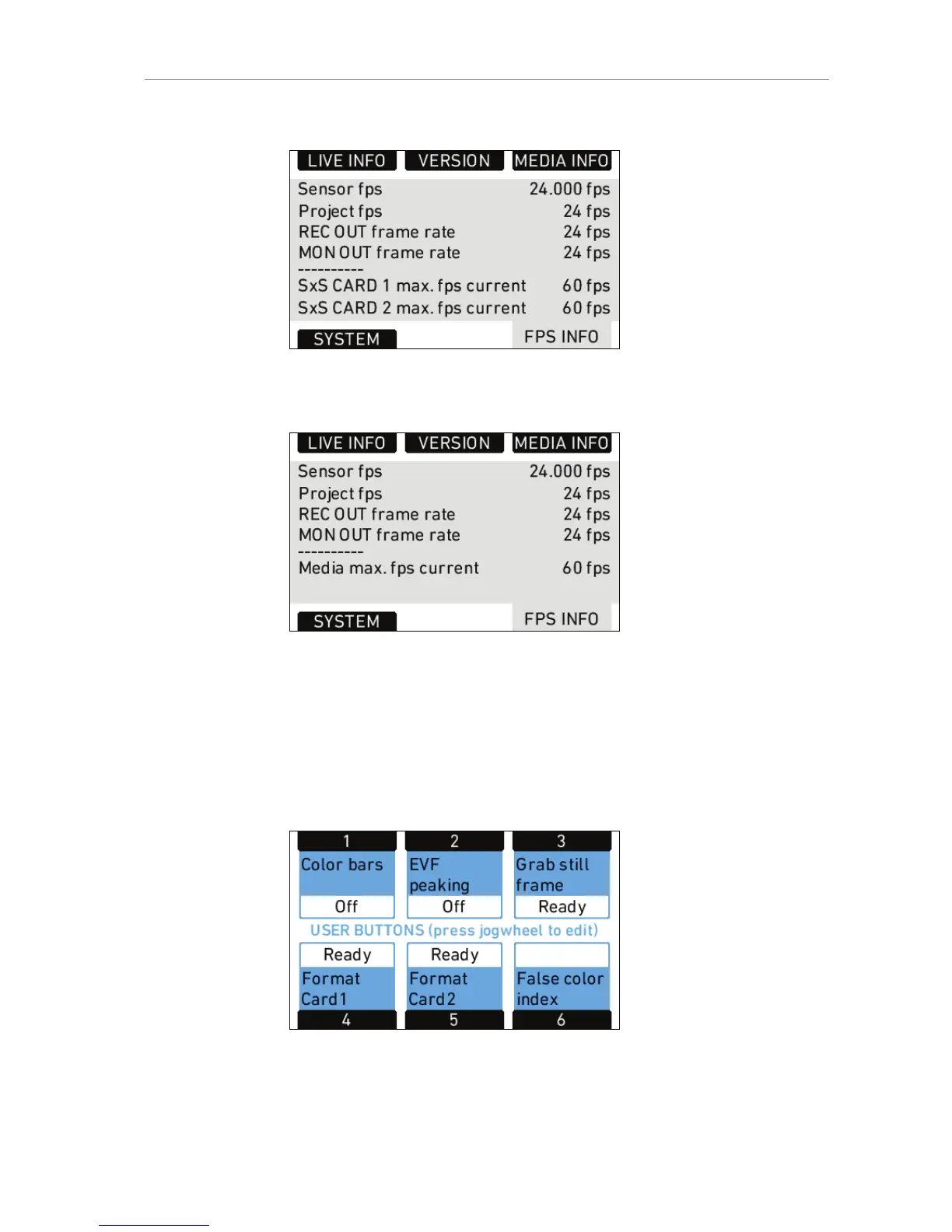

Figure 66: FPS Info screen with SxS module
Figure 67: FPS Info screen with XR module
11.1.4.3 USER
Press the USER button to open the USER BUTTONS screen. There are
six assignable user buttons. Buttons 1, 2 and 3 are shared with User
Buttons 1, 2, and 3 in the operator controls. Press the jogwheel to see a
complete list of user button options.
Figure 68: USER BUTTONS screen

ARRI ALEXA Series Specifications

General

Dynamic Range	14+ stops
Resolution	4.5K (ALEXA LF), 6.5K (ALEXA 65)
Recording Formats	ARRIRAW, Apple ProRes
Lens Mount	PL mount
Viewfinder	Optional EVF (Electronic Viewfinder)
Sensor Size	Super 35 (most models), Large Format (ALEXA LF, ALEXA 65)
ISO Range	EI 160 - EI 3200 (Base ISO 800)
