ARRI ALEXA Series User Manual

94 Camera Controls
Sensor
temperature
Current temperature of image sensor. Target is
35°C in standard mode, 40°C in high humidity
mode.
IP address IP address of the camera's Ethernet port.
Operating
time
Shows the total operating time of the camera in
hours (since first installation of SUP 4.0 or higher)

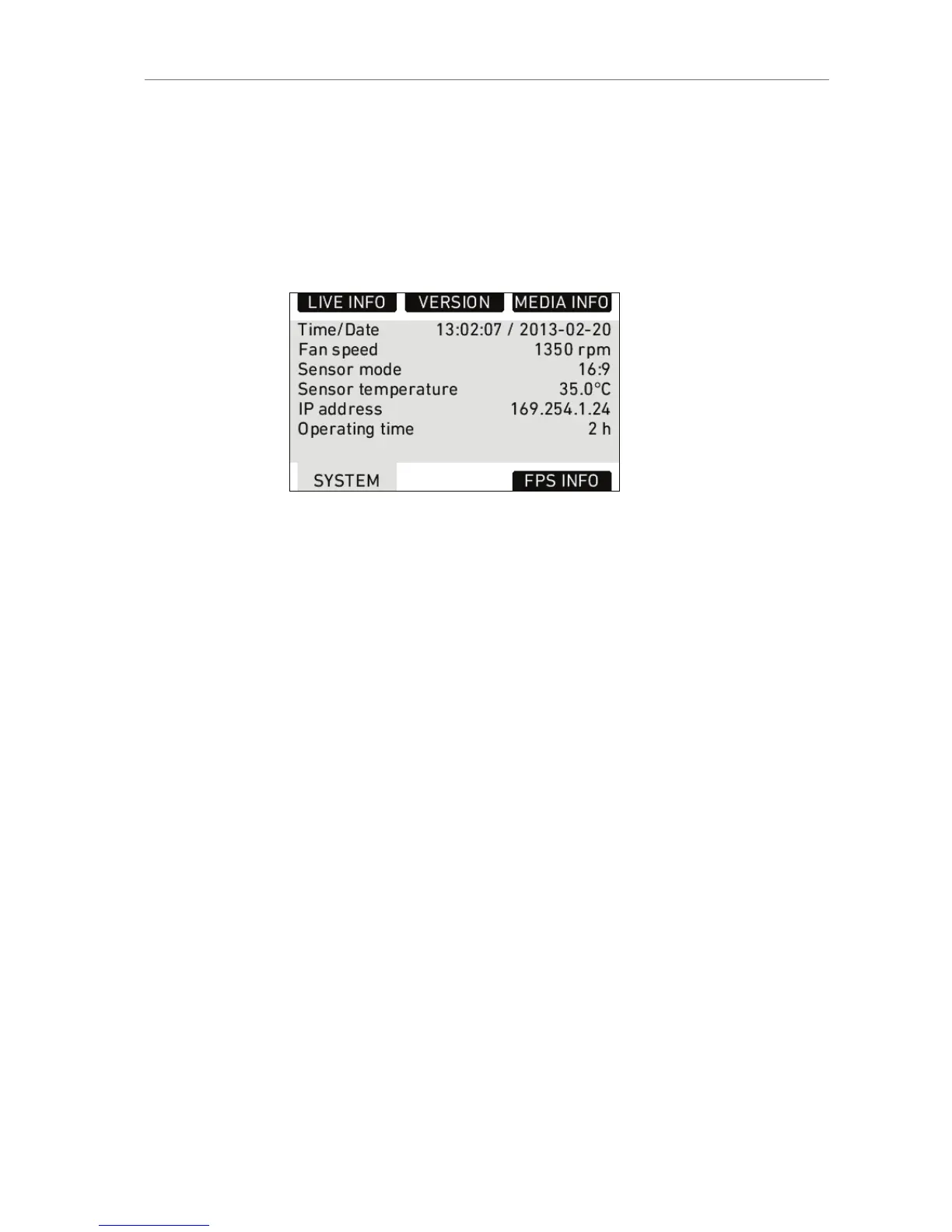

Figure 65: SYSTEM info screen
FPS Info
The FPS Info screen displays an overview of the current frame rates set
in the camera and the maximum frame rate possible on the media
loaded in the camera at the current settings.
Sensor fps Frames per second generated by the sensor
Project fps Time base the camera will use for counting
timecode and the frame rate used for on-camera
playback of internally recorded clips
REC OUT
frame rate
Frame rate output over the REC OUT HD-SDI
MON OUT
frame rate
Frame rate output over the MON OUT HD-SDI
SxS CARD
1/2/Media
max. fps
current
Maximum frame rate the loaded media can
record at the current codec.

ARRI ALEXA Series Specifications

General

Dynamic Range	14+ stops
Resolution	4.5K (ALEXA LF), 6.5K (ALEXA 65)
Recording Formats	ARRIRAW, Apple ProRes
Lens Mount	PL mount
Viewfinder	Optional EVF (Electronic Viewfinder)
Sensor Size	Super 35 (most models), Large Format (ALEXA LF, ALEXA 65)
ISO Range	EI 160 - EI 3200 (Base ISO 800)
