ARRI ALEXA Series User Manual

Main Controls 93
Free
capacity
Free storage space displayed as a percentage.
Max. fps
current
Maximum frame rate with current codec.
Media size Total available storage space on media

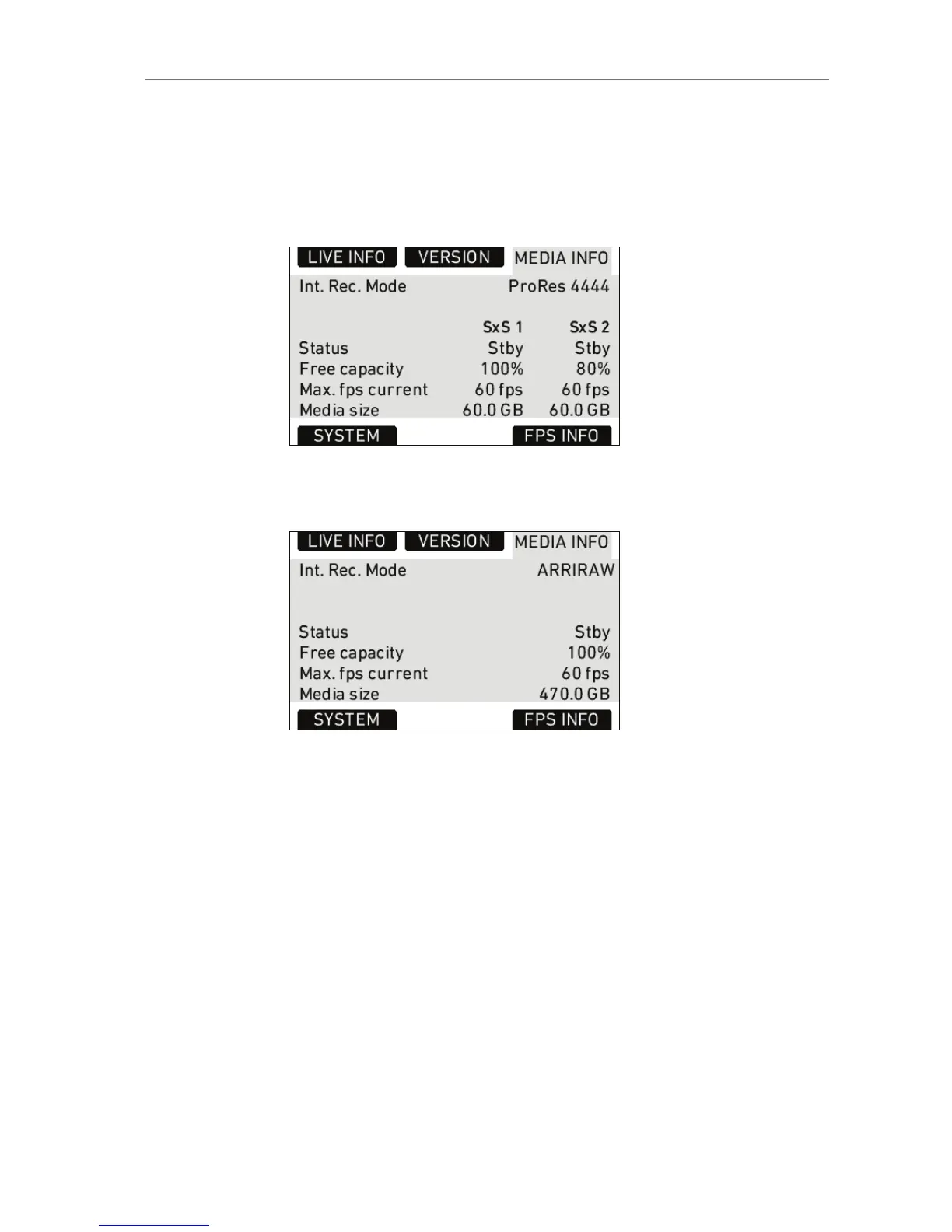

Figure 63: MEDIA INFO screen with SxS module
Figure 64: MEDIA INFO screen with XR module
SYSTEM Info
Time/Date Current date and time. To set the date and time,
press the MENU button, select SYSTEM and
select DATE/TIME.
Fan speed Speed of the camera’s cooling fan in rotations per
minute.
Sensor
mode
Shows the active sensor mode: 16:9, 4:3 or Open
Gate.
4:3 mode is available on ALEXA Plus 4:3, ALEXA
M, ALEXA Studio, ALEXA XT, ALEXA XT Plus,
ALEXA XT M and ALEXA XT Studio.

ARRI ALEXA Series Specifications

General

Dynamic Range	14+ stops
Resolution	4.5K (ALEXA LF), 6.5K (ALEXA 65)
Recording Formats	ARRIRAW, Apple ProRes
Lens Mount	PL mount
Viewfinder	Optional EVF (Electronic Viewfinder)
Sensor Size	Super 35 (most models), Large Format (ALEXA LF, ALEXA 65)
ISO Range	EI 160 - EI 3200 (Base ISO 800)
