ARRI ALEXA Series User Manual

ALEXA M Camera Head 211

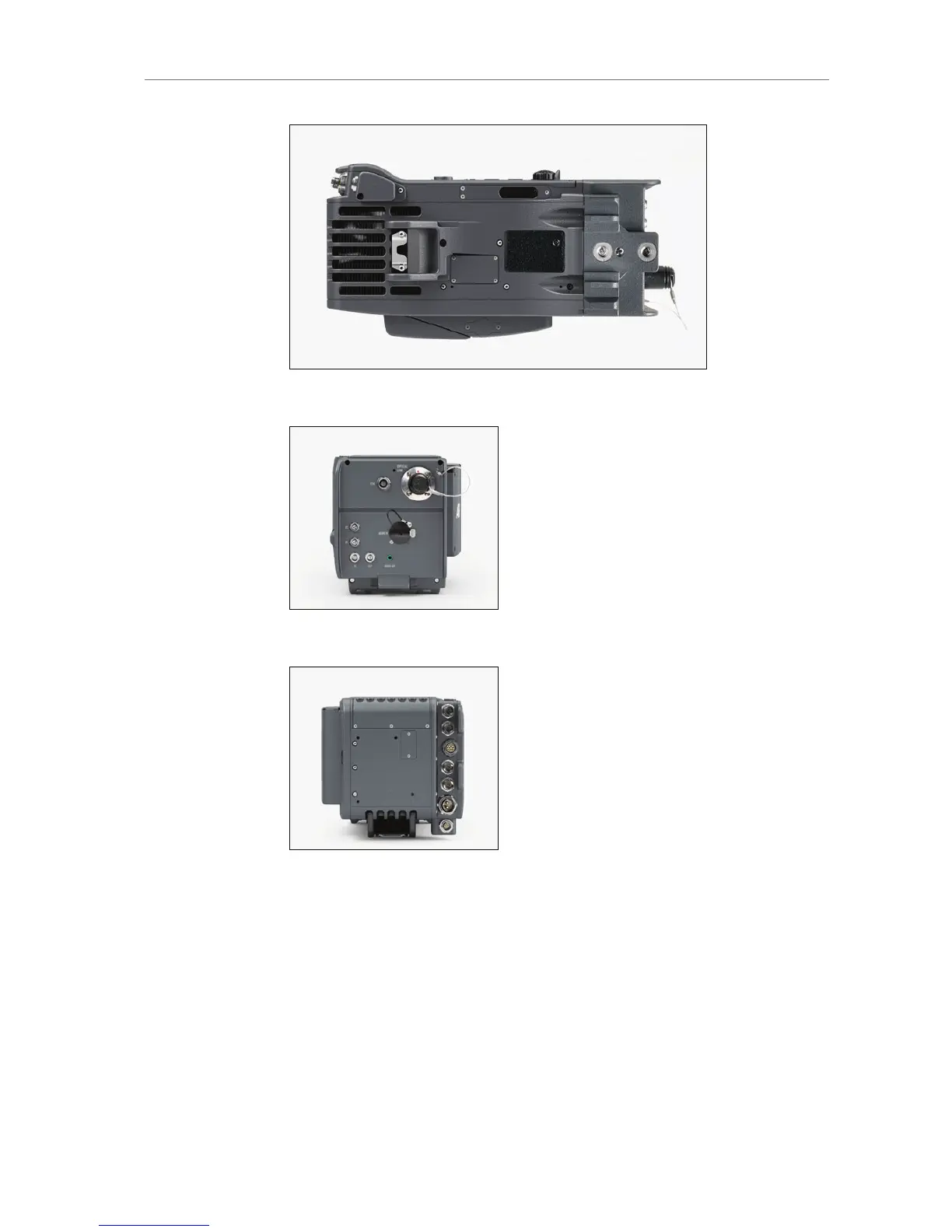

Figure 131: ALEXA M body bottom
Figure 132: ALEXA M body front
Figure 133: ALEXA M body back
16.2 ALEXA M Camera Head
The ALEXA M camera head contains the image sensor and parts of the
image processing. Images are transmitted to the body via fibre cable.
The fibre connection is bi-directional and returns the EVF image to the
camera head from the body.

ARRI ALEXA Series Specifications

General

Dynamic Range	14+ stops
Resolution	4.5K (ALEXA LF), 6.5K (ALEXA 65)
Recording Formats	ARRIRAW, Apple ProRes
Lens Mount	PL mount
Viewfinder	Optional EVF (Electronic Viewfinder)
Sensor Size	Super 35 (most models), Large Format (ALEXA LF, ALEXA 65)
ISO Range	EI 160 - EI 3200 (Base ISO 800)
