ARRI ALEXA Series User Manual

134 Camera Controls

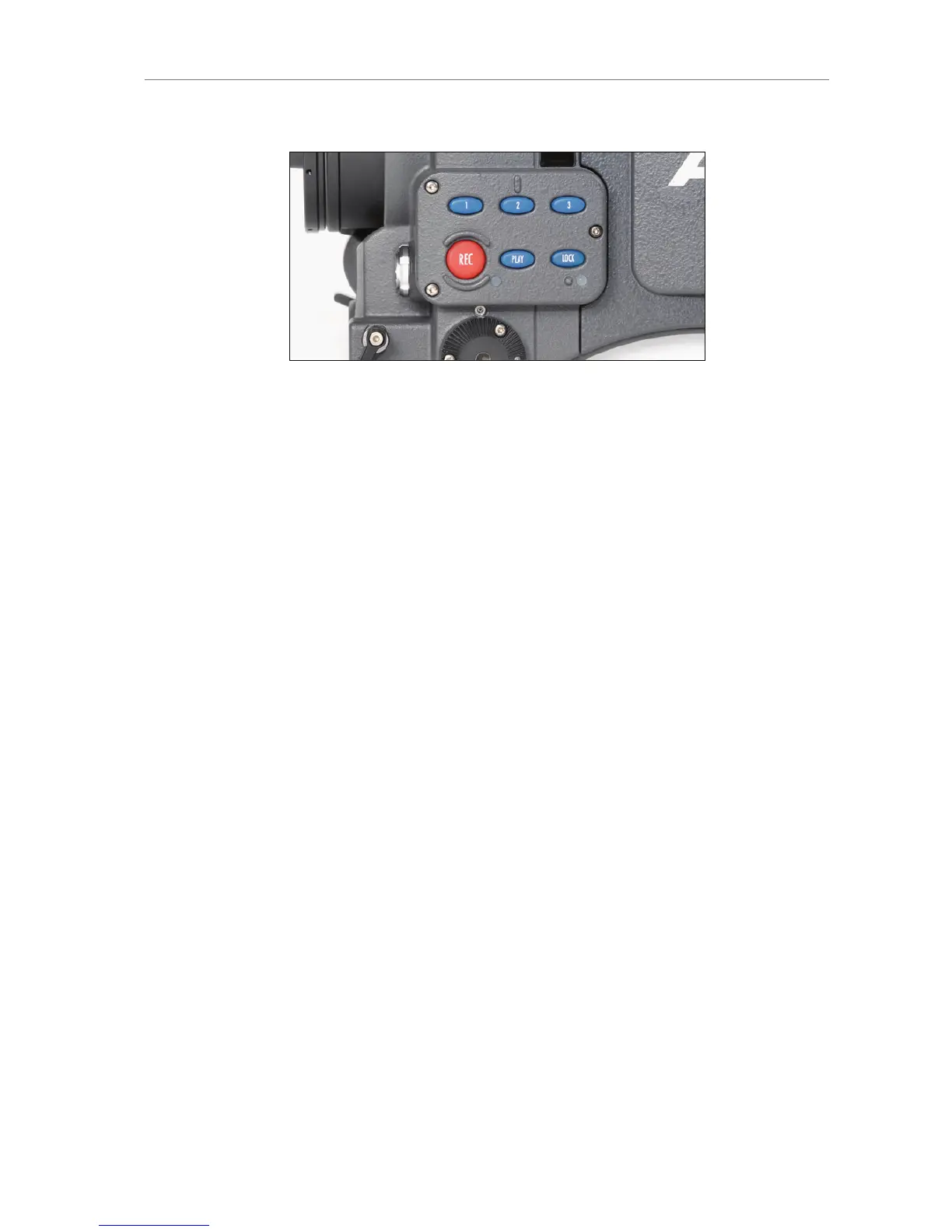

Figure 75: Operator UI
11.3 EVF-1 Controls
The EVF-1 controls are located on the electronic viewfinder. They
consist of a number of function buttons and a jogwheel.
CAM Press the CAM button to open the EVF-1's CAM
menu.
EVF Press the EVF button to open the EVF-1's EVF
menu.
ZOOM
Press the ZOOM button to magnify the EVF-1
image 2.25x for focus check. The magnification
ratio is 1:1, or one sensor pixel to one EVF-1
display pixel. Active magnification is indicated by
an orange frame around the image. Frame lines
are deactivated while zoom is active.
EXP Press the EXP button (EXP = EXPOSURE) to
toggle false color display on and off.

ARRI ALEXA Series Specifications

General

Dynamic Range	14+ stops
Resolution	4.5K (ALEXA LF), 6.5K (ALEXA 65)
Recording Formats	ARRIRAW, Apple ProRes
Lens Mount	PL mount
Viewfinder	Optional EVF (Electronic Viewfinder)
Sensor Size	Super 35 (most models), Large Format (ALEXA LF, ALEXA 65)
ISO Range	EI 160 - EI 3200 (Base ISO 800)
