ARRI ALEXA Series User Manual

168 ALEXA Plus
Apart from the LDS feature, the same procedures as with the LA-PL-1
(on page 60) apply.

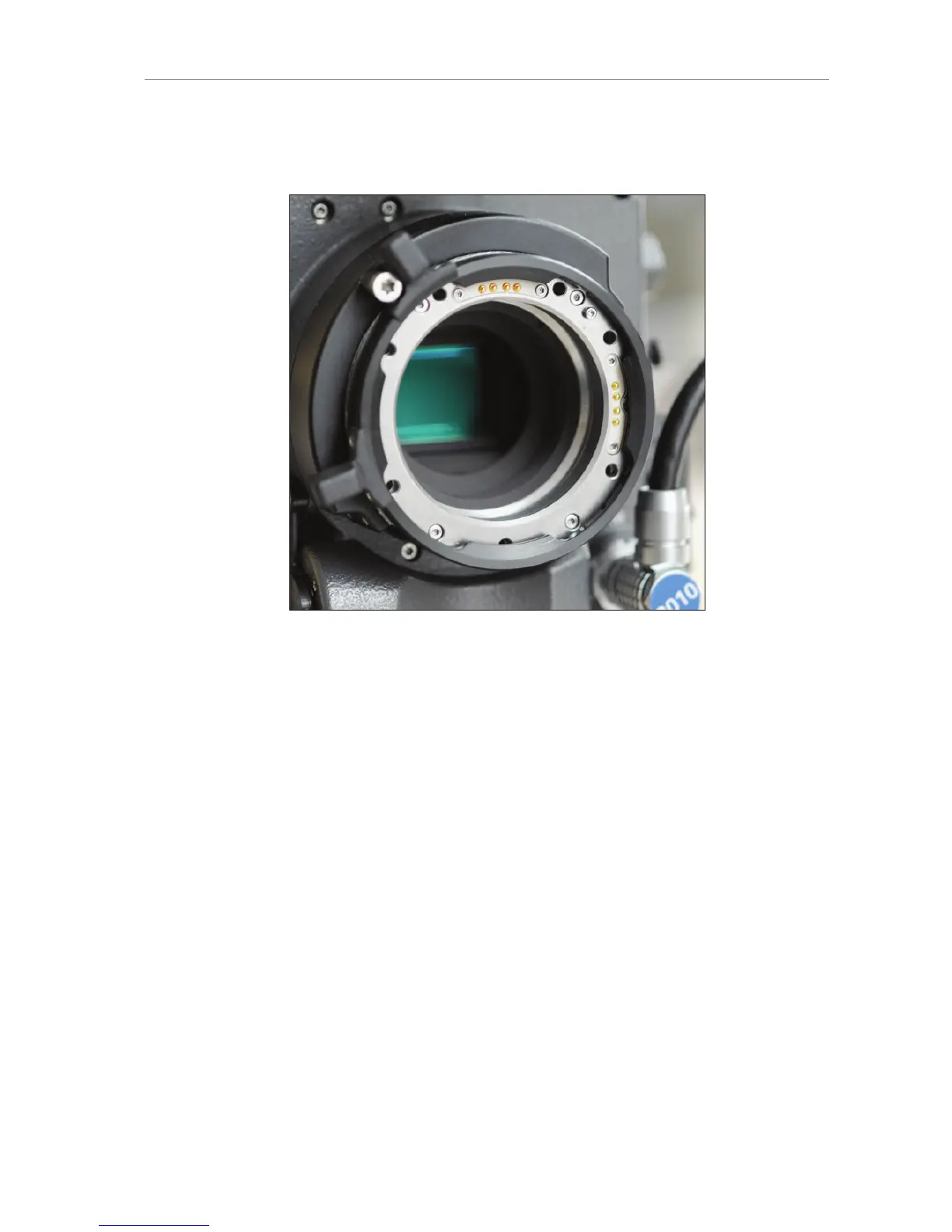

Figure 79: Lens adapter PL-Mount LA-PL-2 (with LDS)
13.2 Radio System
The ALEXA Plus module contains a radio unit that enables wireless lens
control, lens data communication and remote control of basic camera
functions. The radio system is called white radio and it can be identified
by a white ring at the base of the antenna mount point. It offers 8
channels to choose from:

ARRI ALEXA Series Specifications

General

Dynamic Range	14+ stops
Resolution	4.5K (ALEXA LF), 6.5K (ALEXA 65)
Recording Formats	ARRIRAW, Apple ProRes
Lens Mount	PL mount
Viewfinder	Optional EVF (Electronic Viewfinder)
Sensor Size	Super 35 (most models), Large Format (ALEXA LF, ALEXA 65)
ISO Range	EI 160 - EI 3200 (Base ISO 800)
