ARRI ALEXA Series User Manual

Main Controls 87
Note: If the gray card is significantly over- or underexposed, the ALEXA
may not be able to calculate a white balance value and will display an
error message.
To rename a white balance:
1. On the HOME screen, press the WB button.
2. Using the jogwheel, select the name of the white balance you wish
to rename.
3. Press the RENAME button.
4. Use the jogwheel to enter a new name.
5. Press the DONE button to save the new name.

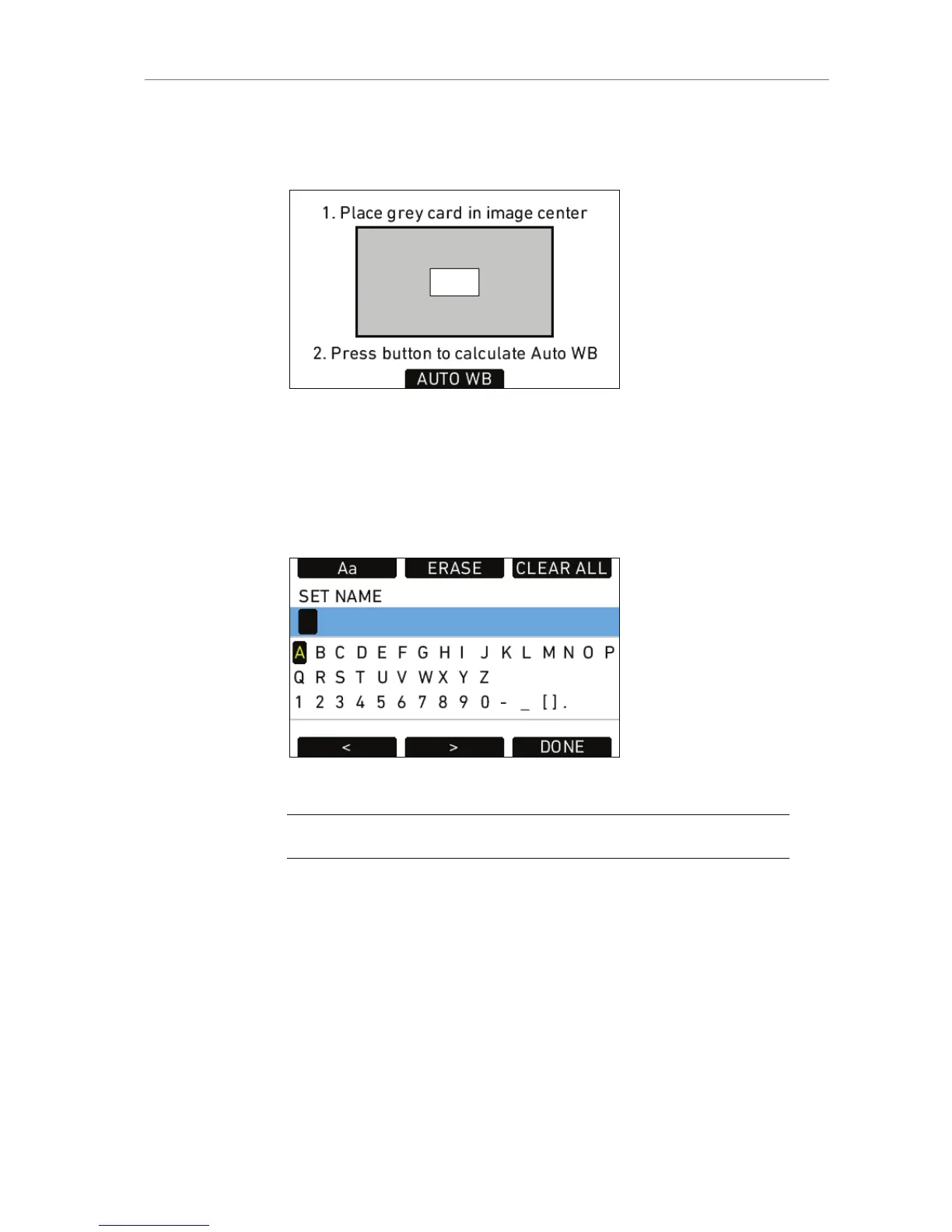

Figure 59: WB SET NAME screen
Note: Default white balance values cannot be renamed.
11.1.4 Function Buttons
The main controls feature the following function buttons:
ON/OFF Press once to switch the camera on. Press and
hold for 5 seconds to switch off the camera. A
countdown will be displayed on the HOME
screen. If the button is released before the
countdown has elapsed, the camera does not
switch off.

ARRI ALEXA Series Specifications

General

Dynamic Range	14+ stops
Resolution	4.5K (ALEXA LF), 6.5K (ALEXA 65)
Recording Formats	ARRIRAW, Apple ProRes
Lens Mount	PL mount
Viewfinder	Optional EVF (Electronic Viewfinder)
Sensor Size	Super 35 (most models), Large Format (ALEXA LF, ALEXA 65)
ISO Range	EI 160 - EI 3200 (Base ISO 800)
