ARRI ALEXA Series User Manual

Shoulder Pad SP-3 47
9 Connectors
Camera back

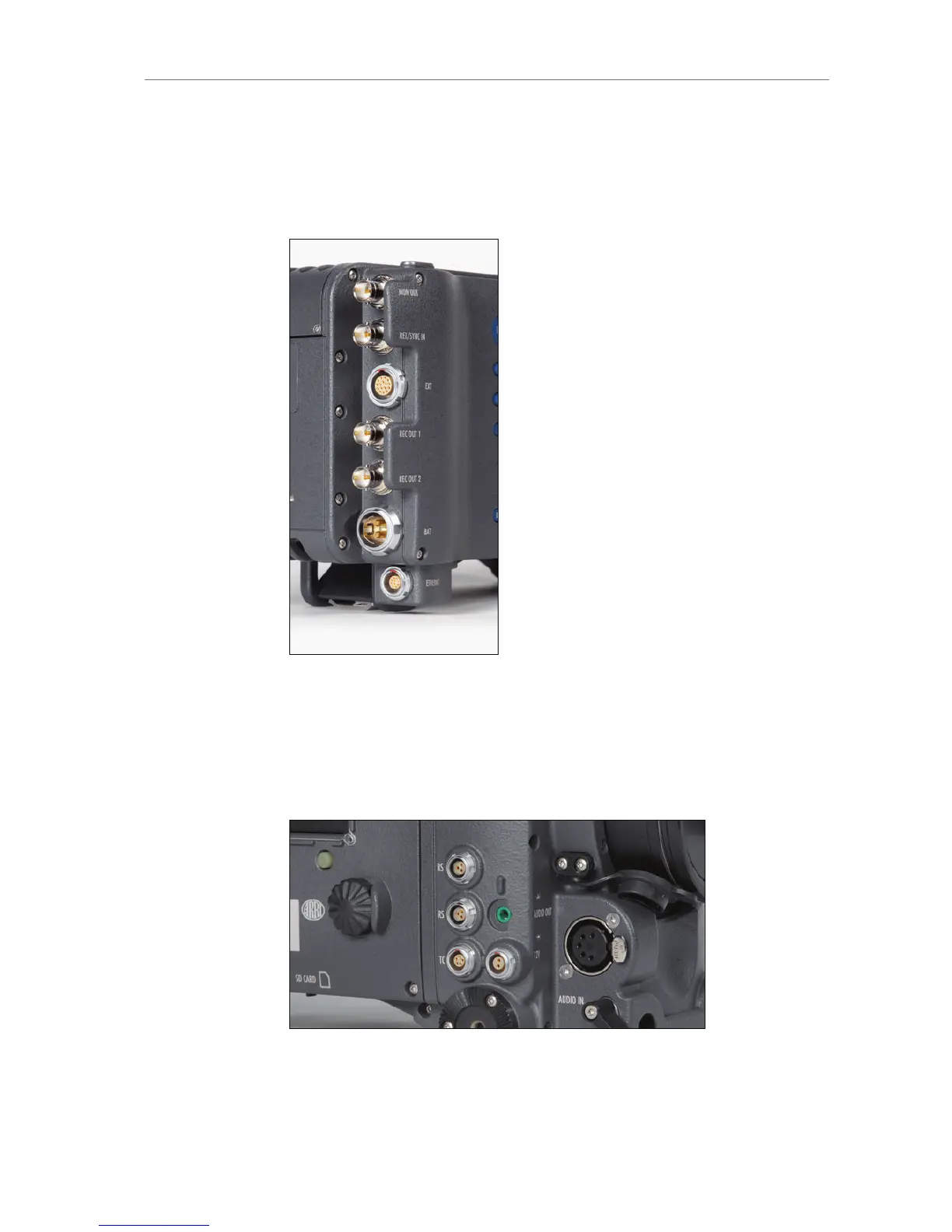

Figure 30: Connectors at back
From top to bottom: MON OUT, RET/SYNC IN, EXT, REC OUT 1, REC
OUT 2, BAT, ETHERNET
Camera right
Figure 31: Connectors on right side
From left to right, top to bottom: 2x RS (24 V) out, AUDIO OUT, TC, 12V
out, AUDIO IN, SD CARD (camera bottom)

ARRI ALEXA Series Specifications

General

Dynamic Range	14+ stops
Resolution	4.5K (ALEXA LF), 6.5K (ALEXA 65)
Recording Formats	ARRIRAW, Apple ProRes
Lens Mount	PL mount
Viewfinder	Optional EVF (Electronic Viewfinder)
Sensor Size	Super 35 (most models), Large Format (ALEXA LF, ALEXA 65)
ISO Range	EI 160 - EI 3200 (Base ISO 800)
