ARRI ALEXA Series User Manual

230 ALEXA XT Cameras

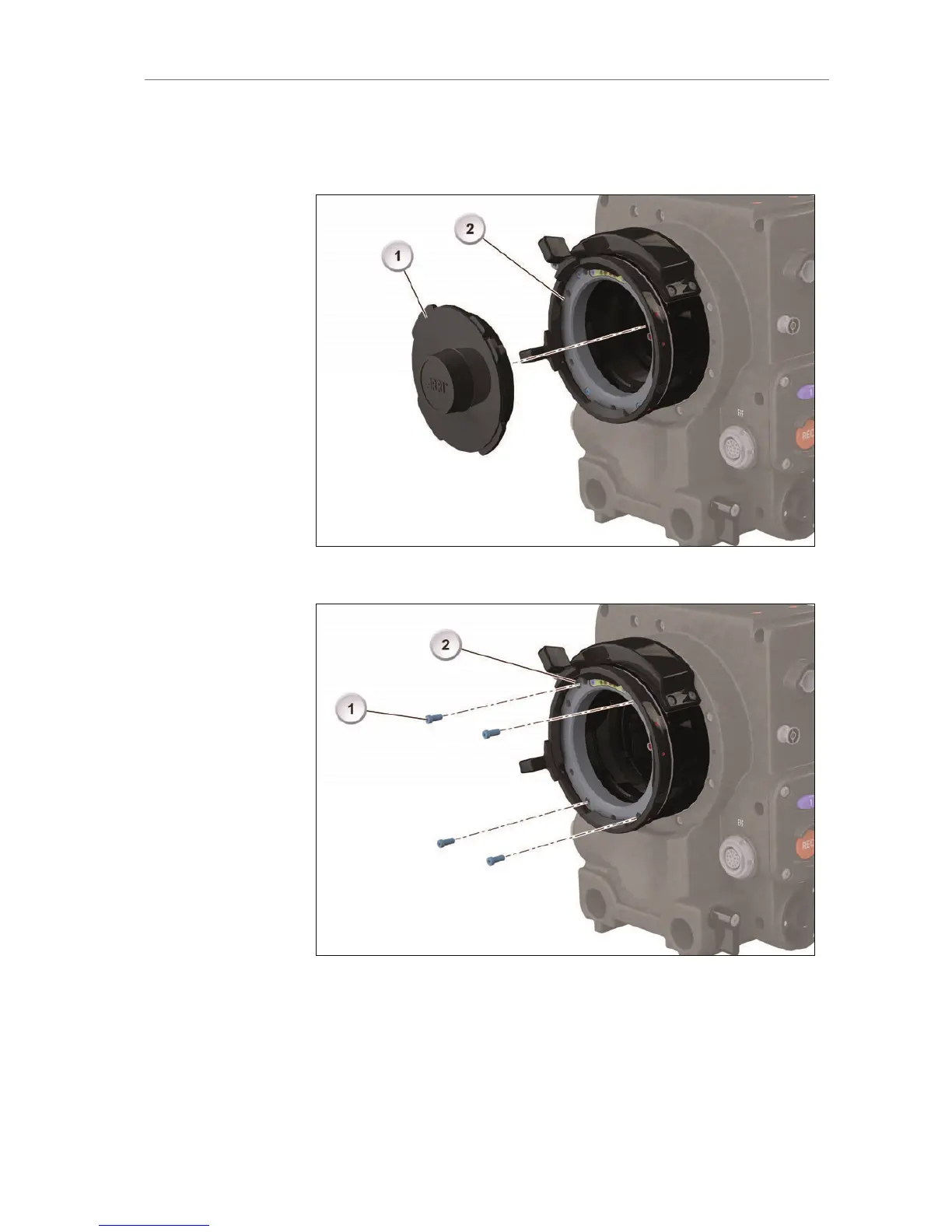

To shim the mount:
1. Remove lens or lid (1) from the PL lens mount and turn the lens lock
into position CLOSED (2):
2. Unscrew (only with a TX6 torx screwdriver!) the four accessible torx
screws (1) that hold the lens lock (the other two torx screws are still
hidden by lock position CLOSED):

ARRI ALEXA Series Specifications

General

Dynamic Range	14+ stops
Resolution	4.5K (ALEXA LF), 6.5K (ALEXA 65)
Recording Formats	ARRIRAW, Apple ProRes
Lens Mount	PL mount
Viewfinder	Optional EVF (Electronic Viewfinder)
Sensor Size	Super 35 (most models), Large Format (ALEXA LF, ALEXA 65)
ISO Range	EI 160 - EI 3200 (Base ISO 800)
