Connector Pin Outs Appendix 255

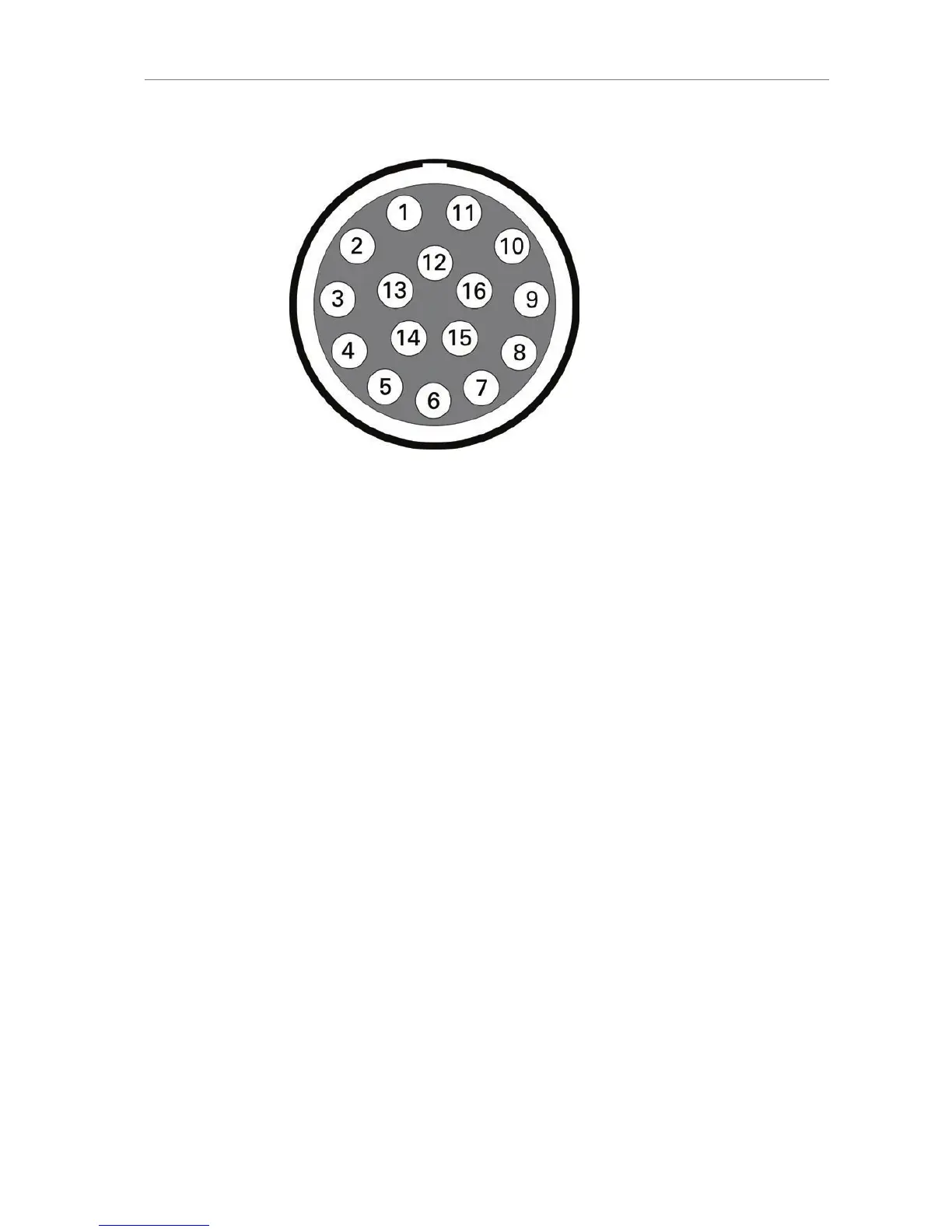

EXT
1 RS422-TXD(+)
2 RS232-TXD
3 CAN1-L
4 CAN1-H
5 CAN2-L
6 CAN2-H
7 24V-AUX
8 RS232-RXD
9 RS422-RXD(-)
10 RS422-RXD(+)
11 RS422-TXD(-)
12 GND
13 TTL-IN1
14 TTL-IN2
15 24V-AUX
16 GND
