ARRI ALEXA Series User Manual

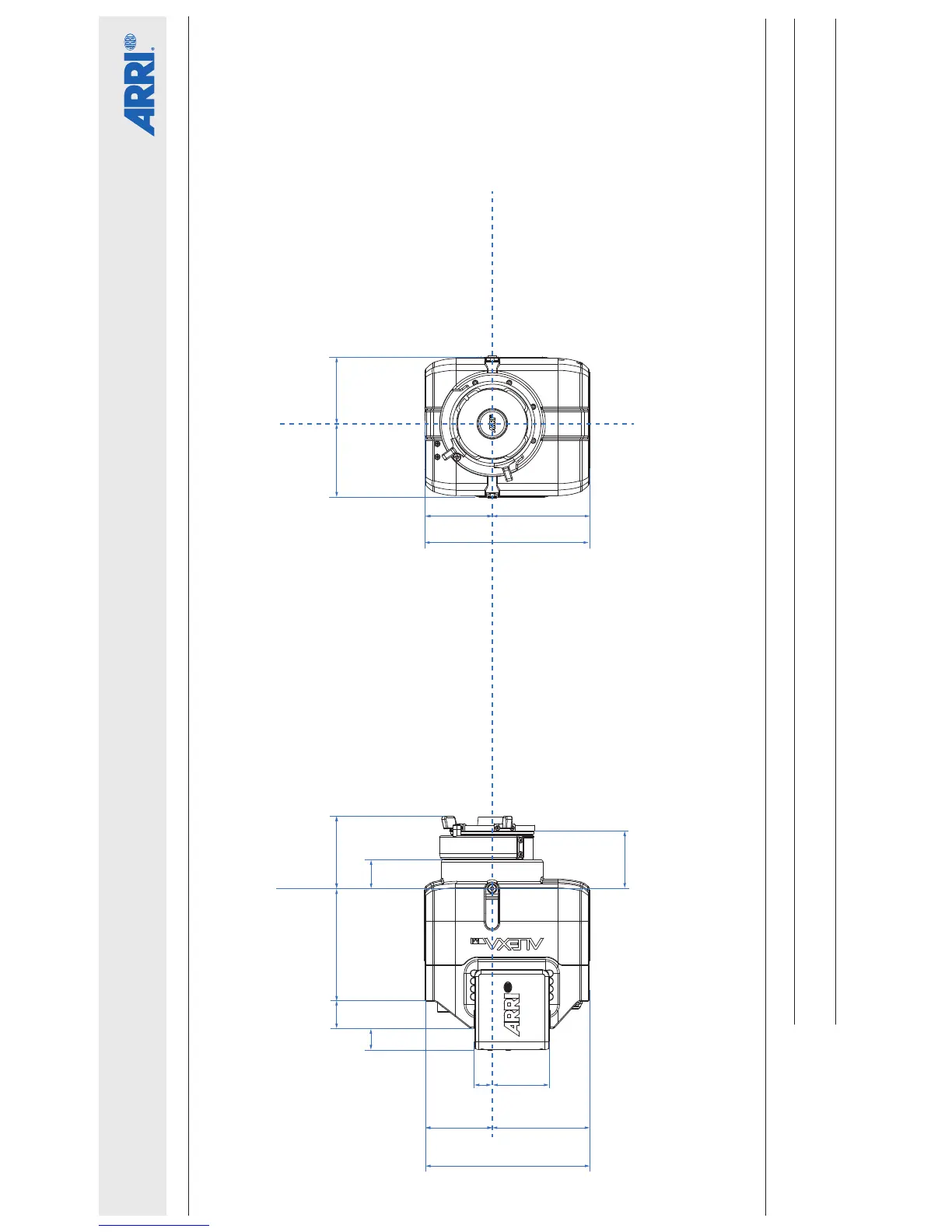

Technical Data are subject to change without notice.CAMERA DIMENSIONS – Version 2012-03
ALEXA M
ALEXA M Length Width Height Weight
ALEXA M Head 212 mm - 8.35” 129 mm - 5.08” 149 mm - 5.87” 2.9 kg - 6.39 lb
ALEXA M Backend 323 mm - 12.72” 153 mm - 6.02” 158 mm - 6.22” 5.5 kg - 12 lb
Head Right Image Plane
Head Front Optical Center
Optical Center
149 mm
5.87”
61 mm
2.4”
61 mm
2.4”
51.7 mm
2.04”
16 mm
0.63”
88 mm
3.47”
88 mm
3.47”
66.2 mm
2.61”
60.2 mm
2.37”
65.1 mm
2.56”
26 mm
1.02”
19.4 mm
0.76”
102 mm
4.02”
52 mm
2.05”
24.3 mm
0.96”
149 mm
5.87”

ARRI ALEXA Series Specifications

General

Dynamic Range	14+ stops
Resolution	4.5K (ALEXA LF), 6.5K (ALEXA 65)
Recording Formats	ARRIRAW, Apple ProRes
Lens Mount	PL mount
Viewfinder	Optional EVF (Electronic Viewfinder)
Sensor Size	Super 35 (most models), Large Format (ALEXA LF, ALEXA 65)
ISO Range	EI 160 - EI 3200 (Base ISO 800)
