With the CDL server connection enabled, the ALEXA periodically tries to
contact the CDL server and displays the connection status on the LOOK
FILES screen as well as on the HOME screen. When the CDL server
connection is established, INT in the COLOR section of the HOME
screen has a green background, otherwise the background is red and it
is blinking.

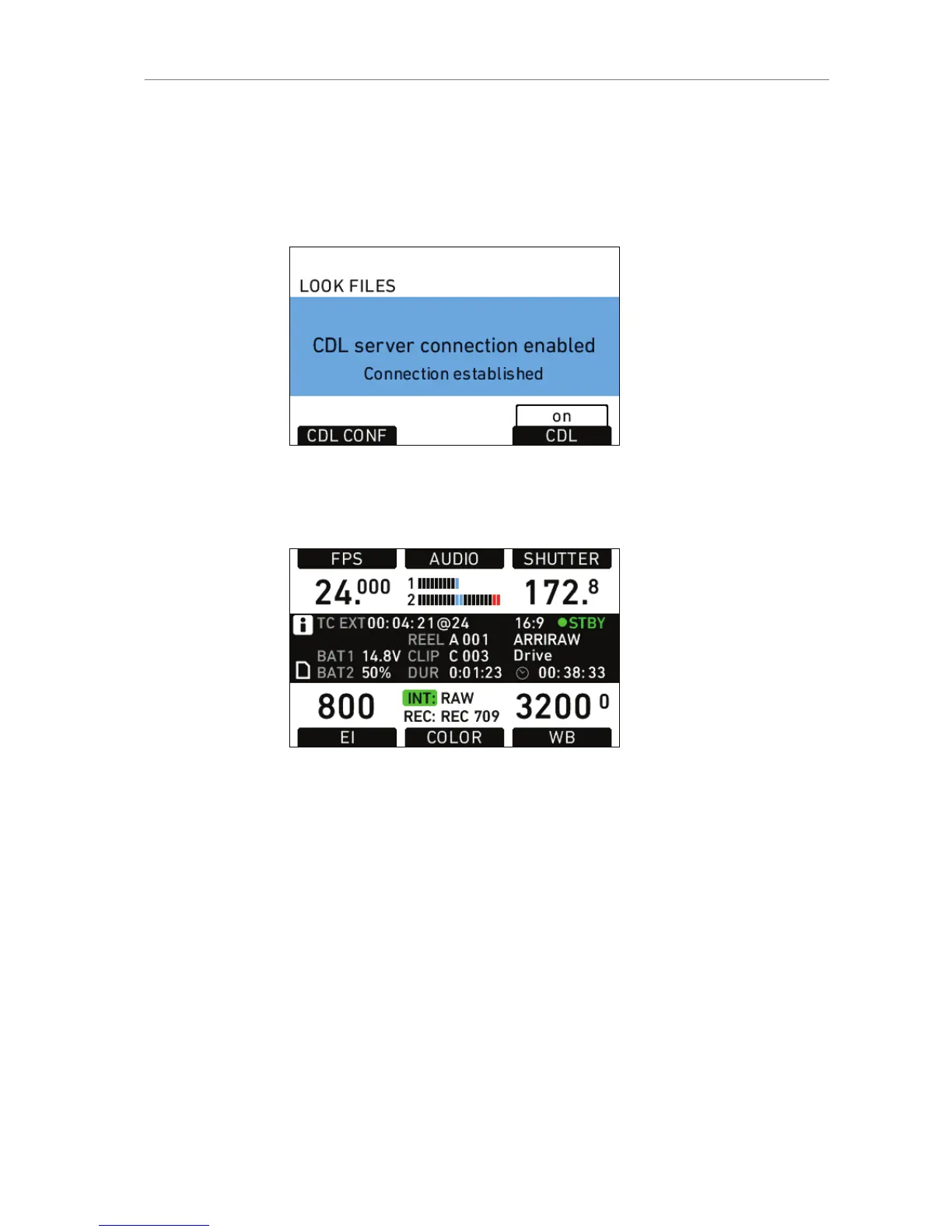

Figure 56: LOOK FILES screen with CDL server connection enabled and
established
Figure 57: HOME screen with CDL server connection enabled and
established
11.1.3.7 WB
White Balance (WB) is the color balance of the camera that should be
set to the value appropriate for the light in use. There are three
methods for setting the white balance:
white balance presets
user-defined white balance
automatic white balance
On the HOME screen, press the WB button to open the WHITE
BALANCE screen. The ALEXA has the following white balance presets:
Tungsten 3200K 0CC
Fluorescent 4300K 0CC
