Asante 1012 - Figure 1-19. Backbone Network with Asantéview; Network Connections to Thin Ethernet

Quick Start
1-27
This section describes network connections via the BNC port, to a thin
Ethernet backbone, as illustrated below. For other network configurations,
see Chapter 2, “Hardware Description.”

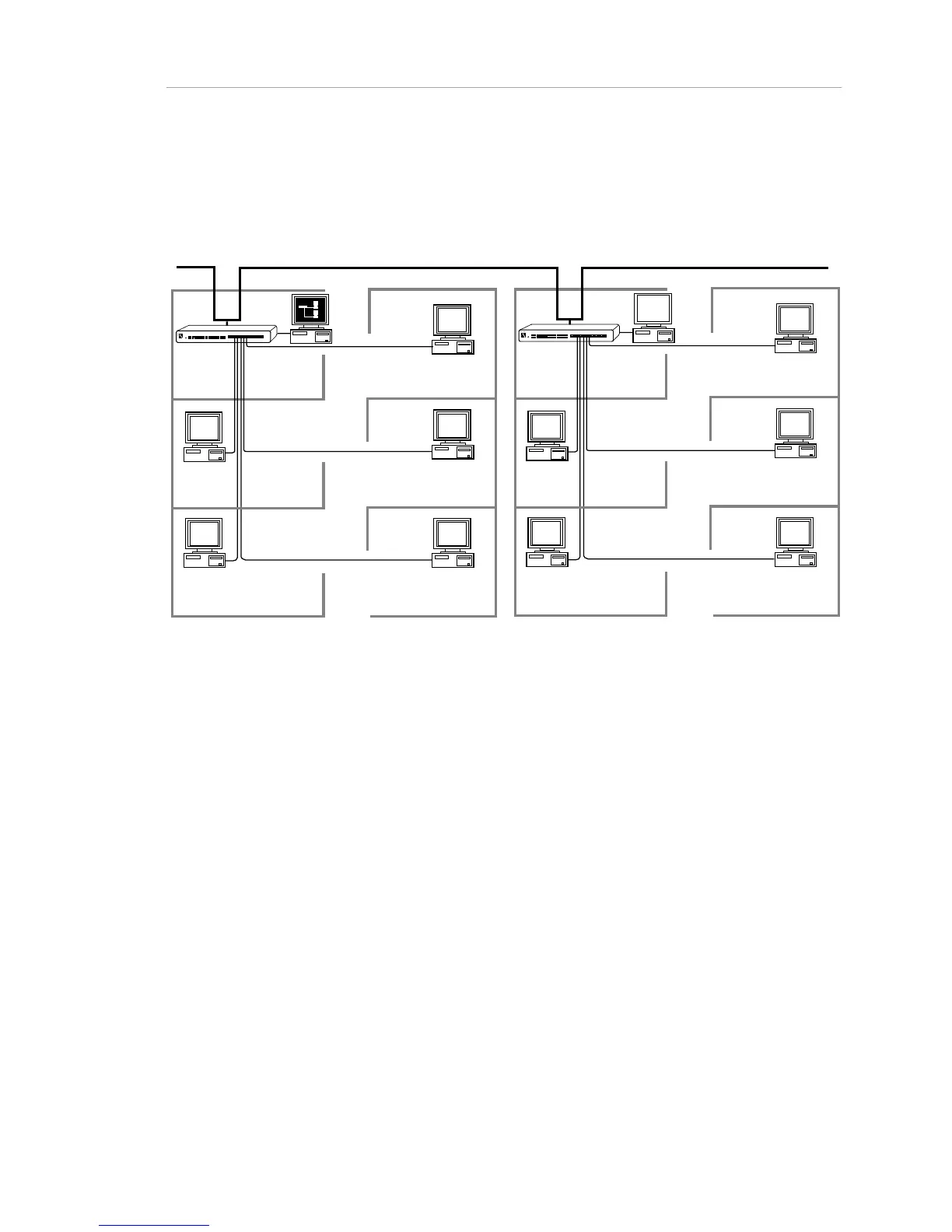

Figure 1-19. Backbone network with AsantéView
Network Connections to Thin Ethernet
The most common network connection is the thin Ethernet backbone
network. This configuration uses the BNC port on the rear panel. The
T-connector on the backbone cable is connected directly to the BNC port.
This connection is simple to make. See the following figure.
