Chapter 3
3-6
Common Network Configurations
Single-Hub Star Network
The simplest AsantéHub network consists of a single hub with attached devices
(nodes). This configuration yields thirteen device ports, using the rear panel RJ-
45 IN port in addition to the twelve front-panel device ports. Only twisted-pair
wiring is used.

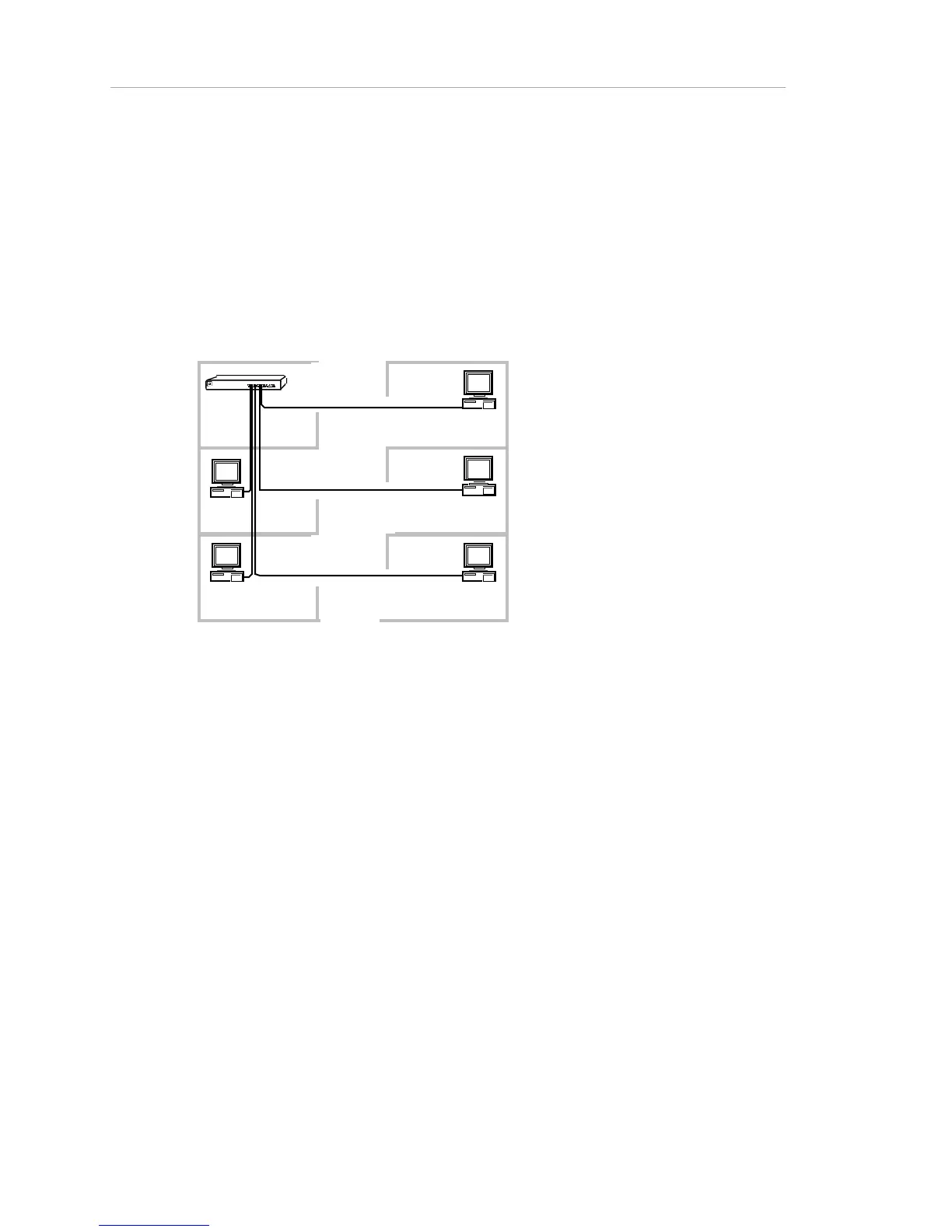

Figure 3-2. Star Network
Tree Network
A tree network, or hierarchy of multiple stars, is created when hubs are
interconnected from the front panel ports of the central hub, to the rear panel RJ-
45 OUT port of each associated hub, using twisted-pair wiring.
Some advantages of a tree topology are:
• Cost savings; unshielded twisted-pair wire is less expensive
than other wire types
• Uniform wiring; Device and network connections are made
using the same type of wire
• Easy troubleshooting. Jabber error (continuous transmission)
on a hub can be easily identified.
