Appendix C
C-2
252423222120191817161514131211109 8 7 6 5 4 3 2 1
50494847464544434241403938373635343332313029282726
1
2
3
4
5
6
7
8
1
2
3
6
50-pin cable connector
Hub punch-down block
House punch-down block
8-pin modular jack

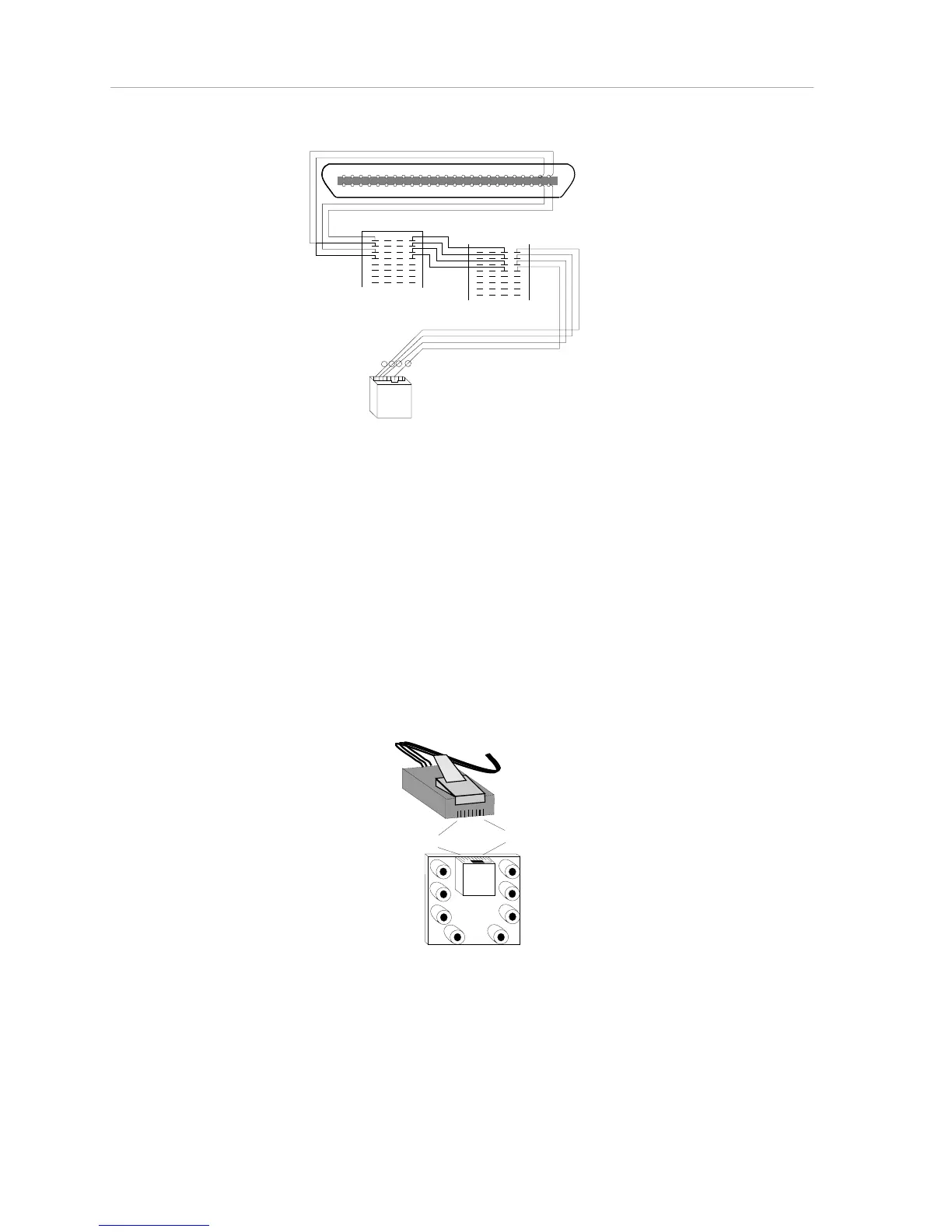

Figure C-2. Single Device Link - Amphenol Connector to 8-Pin
Modular Jack
RJ-45 Modular Jack to Wall Jack Pinouts
These pin numbers are for an Asanté 10BaseT card or MAU positioned correctly
with the notch on the 8-pin modular jack down. Pin 1 is the left-most pin, and Pin
8 is the right-most pin.
1 TD+ Data Transmit positive
2 TD- Data Transmit negative
3 RD+ Data Receive positive
6 RD- Data Receive negative
1 2 3 4 5 6 7 8
1
2
3
4
5
6
7
8
Figure C-3. RJ-45 Wall Jack to Modular Jack Pinouts
