TD 92599EN
1 September 2011/ Ver. B
User Manual
Ascom i62 VoWiFi Handset
17
3.1.3 Icons and Text in the Display
The icons and text in the display indicate functions and settings the user has access to. The
display normally displays date and time, the Owner ID and VoWiFi Handset number. The
Owner ID can manually be set by the user.

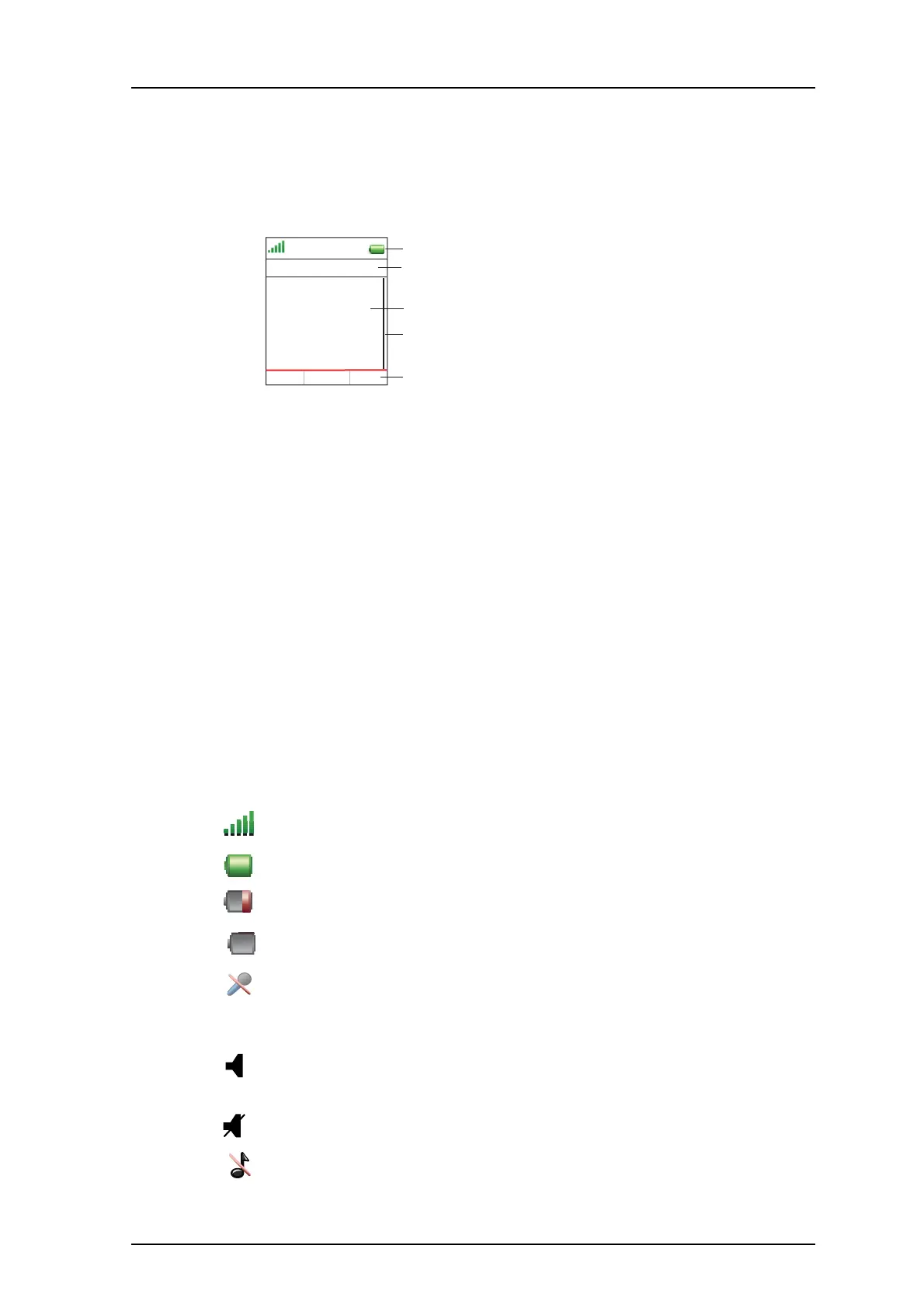

Figure 3. Example of a display configuration in idle mode.
The top row (Status bar) is used for icons which give the user information about signal
strength, missed call, new message, phone lock, key lock, sound off, time and battery status.
This row is always visible in all screens.
The next row (Header bar) displays the current date, headset connection, and profile. During
call it also displays microphone on and loudspeaker on.
The next rows (Active area) are used for information such as the name of the system that
the VoWiFi Handset is connected to. A user identity provided from the system and/or an
Owner ID can also be displayed if configured in the Settings menu. This is also the area for
dialogue window text, for example “missed calls” or to confirm an action.
The bottom row (Soft key bar) is used for Soft keys which can be used as short cuts for
functions in the VoWiFi Handset. See 3.1 The VoWiFi Handset on page 13.
The (Scroll bar) is placed to the right of the “Active area”. It becomes visible when a menu
screen has more than six menus, or if the complete text in a message cannot be displayed
on the screen simultaneously.
Icons
Figure 3.
“Signal strength” icon is visible in the upper left corner. The staples shown in
display depends on the signal strength.
“Full battery” icon is displayed in upper right corner.
“Low battery warning” icon is shown when the battery has 10% or lower of
its capacity left.
“Empty battery warning” icon is flashing when the battery has 5% or lower
of its capacity left.
“Microphone off” icon indicates a silenced microphone. It is displayed after a
long press on the Sound off key or Mute button during a call.
During a PTT (Push-to-Talk) call, the microphone is silenced when the PTT
button is released.
“Loudspeaker on” icon is displayed in the soft key bar during an incoming
call. Pressing this icon will turn on the loudspeaker. The icon remains in the
header bar during the call as long as the loudspeaker is on.
“Loudspeaker off” icon.
“Sound off” icon is displayed when the Sound off key or Mute button is
pressed in idle mode.
Menu
11:00
05/12/2009
123456
System A
Status bar
Header bar
Active area
Soft key bar
Scroll bar
