The IPBS2 can be powered using the following methods:
• Power over Ethernet, IEEE 802.3af
• A local AC-adapter
Note: For more information about power distribution, see 5.3 Power the Base Station on
page 34.
Software
The software in the IPBS2 can be updated by downloading new software without
disconnecting the equipment. The new software is stored in flash memory. See 8.18
Update on page 130 for information.
Connectors
• Two 8-pin RJ45 modular jacks for LAN/PoE and powering
LEDs

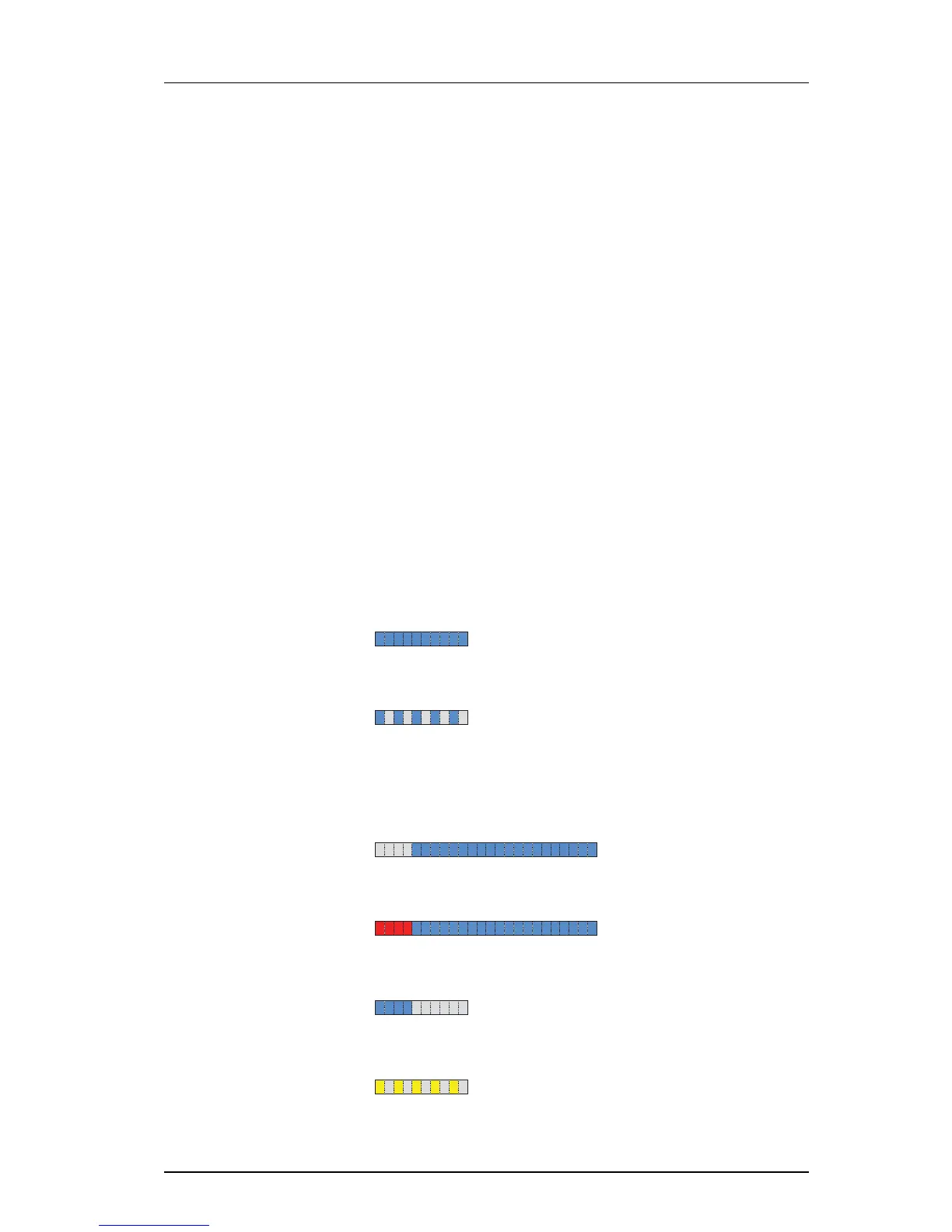

The IPBS2 has one RGB LED to indicate status. This section describes the different
indications and when they shall be used. In the illustrations below: Each blink pattern is
represented by a number of blocks where each block is 100 ms. Light grey blocks means
that the LED is off. Whenever the indication is changed the new pattern always starts from
the first block.
Idle/OK Solid blue. IPBS2 operational and no
traffic on the IPBS2.
Starting up/
searching
100 ms blue, 100 ms off. The IPBS2 is in start-up
phase, e.g. waiting for
parameters from PARI
Master, or is searching for air
synchronization.
Active traffic 400 ms off, 2000 ms blue. IPBS2 operational and traffic
on the IPBS2.
Fully occupied for
speech traffic
400 ms red, 2000 ms blue. Fully occupied with traffic.
Software
download
400 ms blue, 600 ms off. Download of firmware in
progress.
Mini firmware 100 ms yellow, 100 ms off. The IPBS2 is in mini firmware
mode.
