TD 92579EN
15 February 2012 / Ver. H
Installation and Operation Manual
IP-DECT Base Station & IP-DECT Gateway (software version 5.0.x)
17
DIP Switches
The DIP switches can be found on the back of the DB1, see figure 6 on page 15.
Note: DIP switch 3 and 4 shall be set to ON.
Set DIP switch 1 and 2 to ON or OFF as follows:
2.5.2 DB1 with External Antennas
This section contains the differences between the DB1 with internal antenna and the DB1
with external antennas. For all other information see 2.5.1 DB1 with Internal Antenna on
page 15.

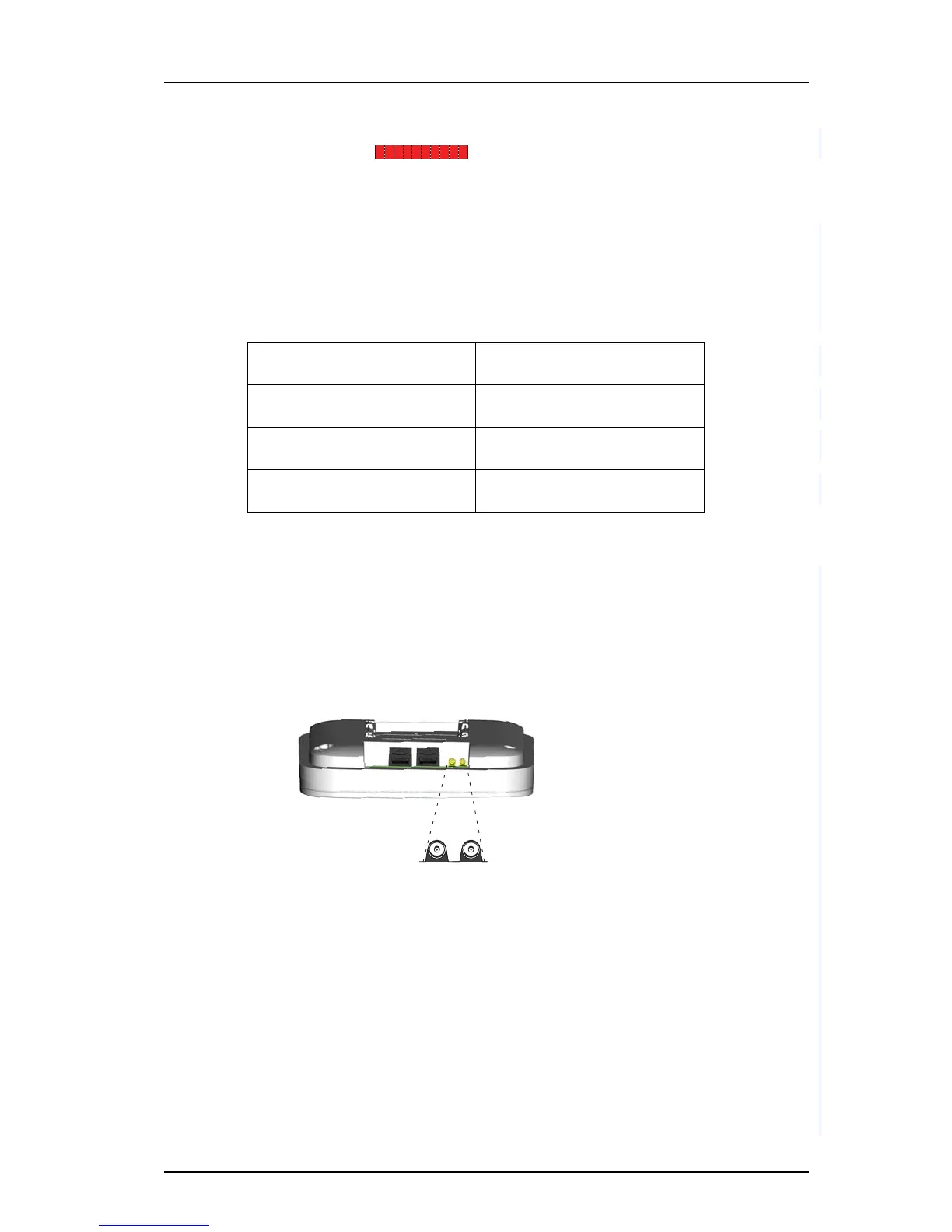

Figure 7. DB1 with MCX connectors for external antennas.
Contents of the Box
The box in which the DB1 is packed contains:
• A DB1 with external antennas.
• A mounting bracket
• An antenna bracket
• Two antenna coaxial cables.
• Two antennas.
• Four screws with wall plugs
Fatal error Solid red. Fatal hardware error.
DIP switch 1: ON
DIP switch 2: ON
Europe frequency
DIP switch 1: OFF
DIP switch 2: ON
China frequency
DIP switch 1: ON
DIP switch 2: OFF
South America frequency
DIP switch 1: OFF
DIP switch 2: OFF
North America frequency
Back view while lying down
MCX connectors
