2.4 DECT Base Station (BS3x0)
The following versions are available:
• BS330 with Internal antenna
• BS340 with External antennas
2.4.1 DECT Base Station
Test
(RJ12)
Data/Power
(RJ45)
Data/Power
(RJ45)
Front viewBack view
LED1
LED2

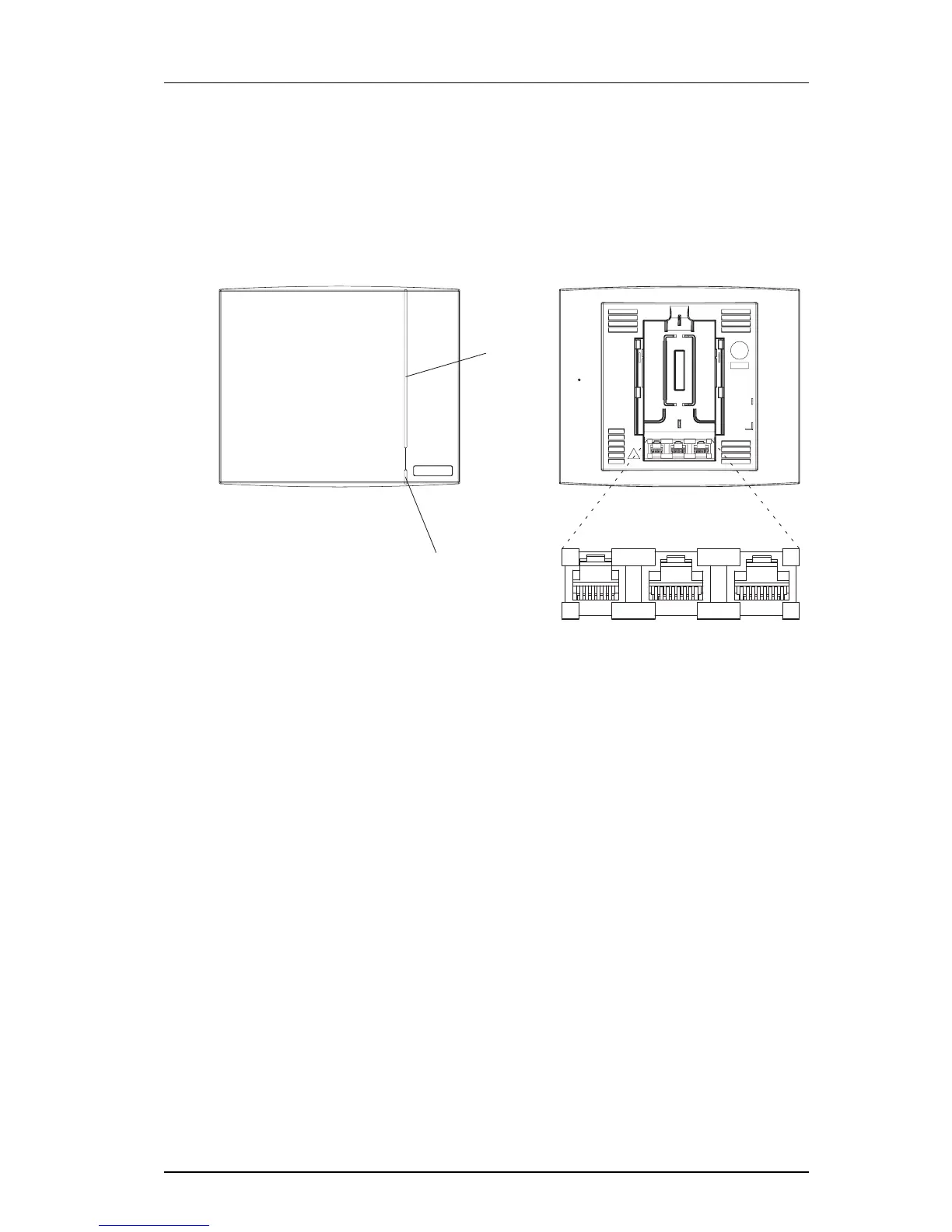

Figure 5. BS3x0 Overview
Contents of the Box
The box in which the base sta
tion is packed contains:
•A base station
• Two antennas (only base station with external antenna)
• A mounting bracket
• Two screws with wall plugs
Power Distribution
The base station can be powered using the following methods:
• From the IPBL via the Express Powering Pair (EPP) and data pairs
• With a local AC-adapter
Note: For
more information about power distribution, see 5.3 Power the Base Station on
page 34.
