TD 92579EN
15 February 2012 / Ver. H
Installation and Operation Manual
IP-DECT Base Station & IP-DECT Gateway (software version 5.0.x)
29

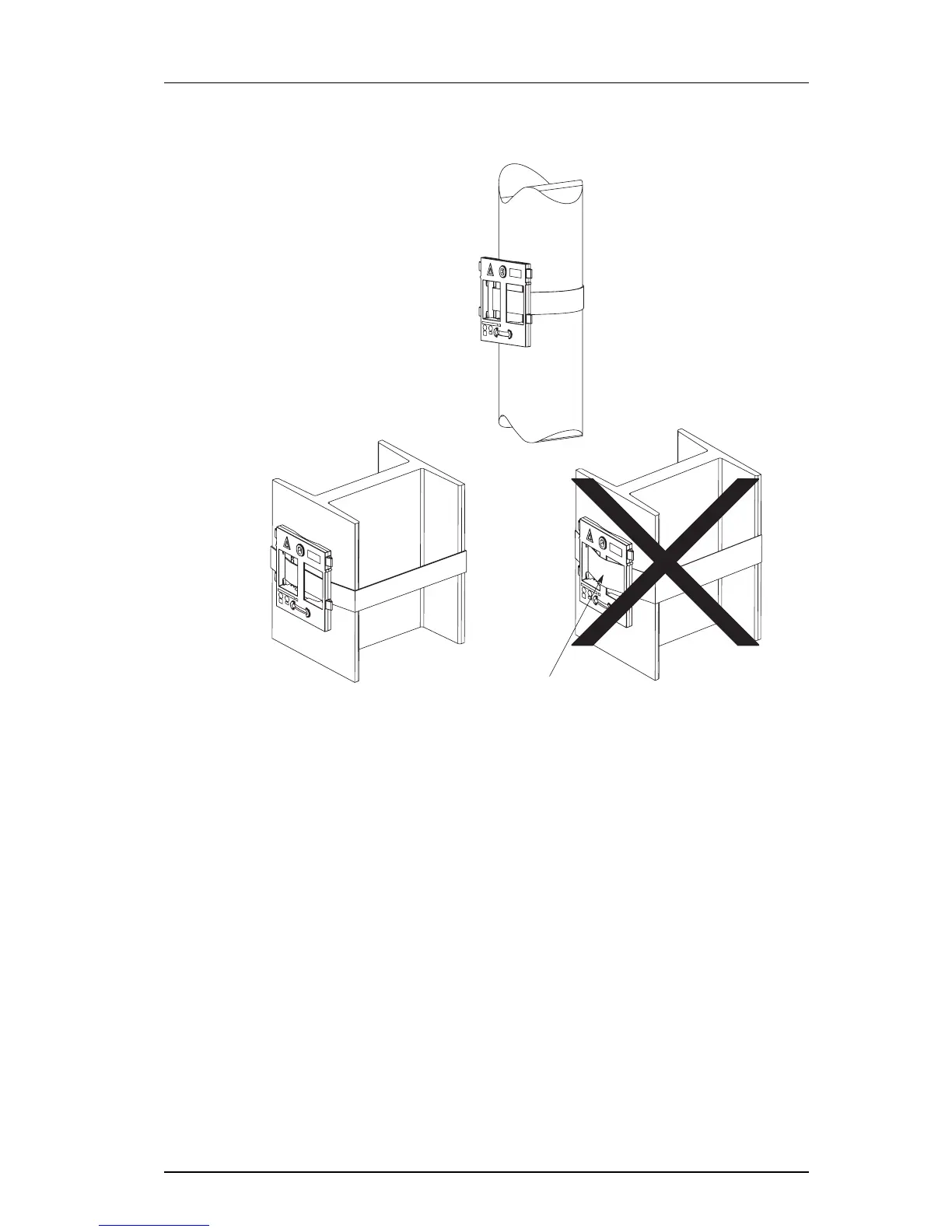

Figure 9. Fixing the mounting bracket to a pole or beam.
5.2.4 Use the Cable Ducts for IPBS1
When the base station IPBS1 is mounted to the wall, cable ducts can be used to route the
wiring through.
1 Fix the cable duct to the wall in one of the positions shown in figure 8 on page 30.
Figure 7.
