TD 92579EN
15 February 2012 / Ver. H
Installation and Operation Manual
IP-DECT Base Station & IP-DECT Gateway (software version 5.0.x)
40
6.3 Power the IPBL
The IPBL power supply connectors are located at the rear. The power supply feeds both
the IPBL and the connected RFPs. There are two alternatives to power the IPBL:
110/230 VAC, 60/50 Hz
48 VDC
6.3.1 110/230 VAC
The 110/230VAC (100 – 240 VAC) power input is protected against overload by a 4A fuse.
The IEC 60320 type C14 (male) connector consists of:
live lead (1)
neutral lead (2)
protective earth (3)

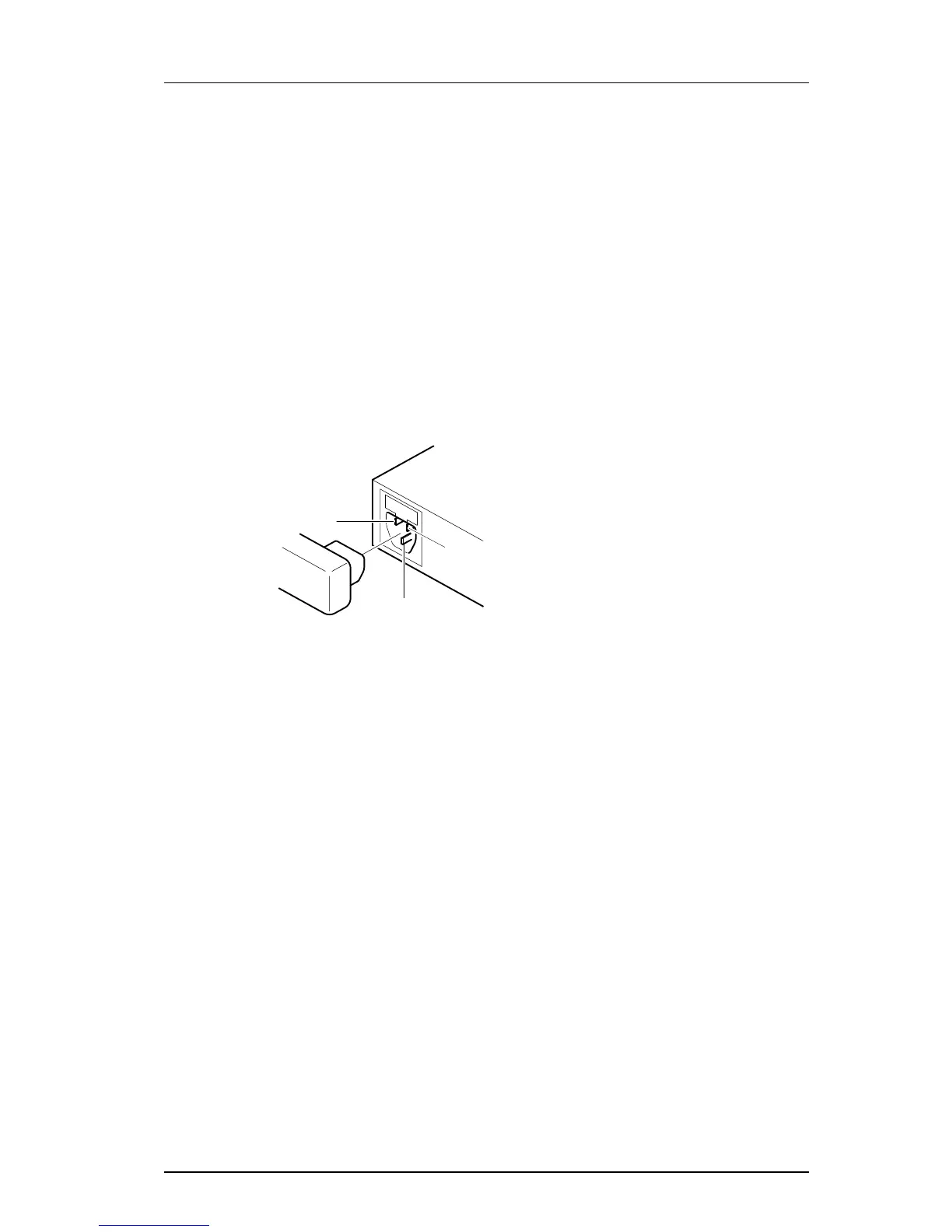

Figure 19. Pinning of the 110/230 VAC power supply
1 Connect the power cable on the IPBL.
2 Connect the power cable in a wall socket with protected earth.
The IPBL is switched on.
Figure 15.
1
2
3
010
