6.2.2 RFP Cable
The RFP cable connects the IPBL with the RFPs. The maximum cable length between IPBL
and a single RFP must not exceed 1500 meters.
Note: Ensure that during the installation, each RFP is given an extra length (5-10 metres)
of cable because it is possible that it will have to be moved for one reason or another.
1 Cut the cable to the correct length.
2 Connect the cable to a RJ45 modular jack. For information on the pinning, see
below.
IMPORTANT: If local power supply is used for the RFP, the EPP cable pairs must NOT be
connected.
3 Label the cable.
6.2.3 LAN Cable
Note: The TX/RX crossover/straight cable feature does not work in the IPBL. It must be a
straight cable between the IPBL and the switch port.
1 Cut the cable to the correct length.
2 Connect the cable to a RJ45 modular jack. For information on the pinning, see
below.
3 Label the cable.

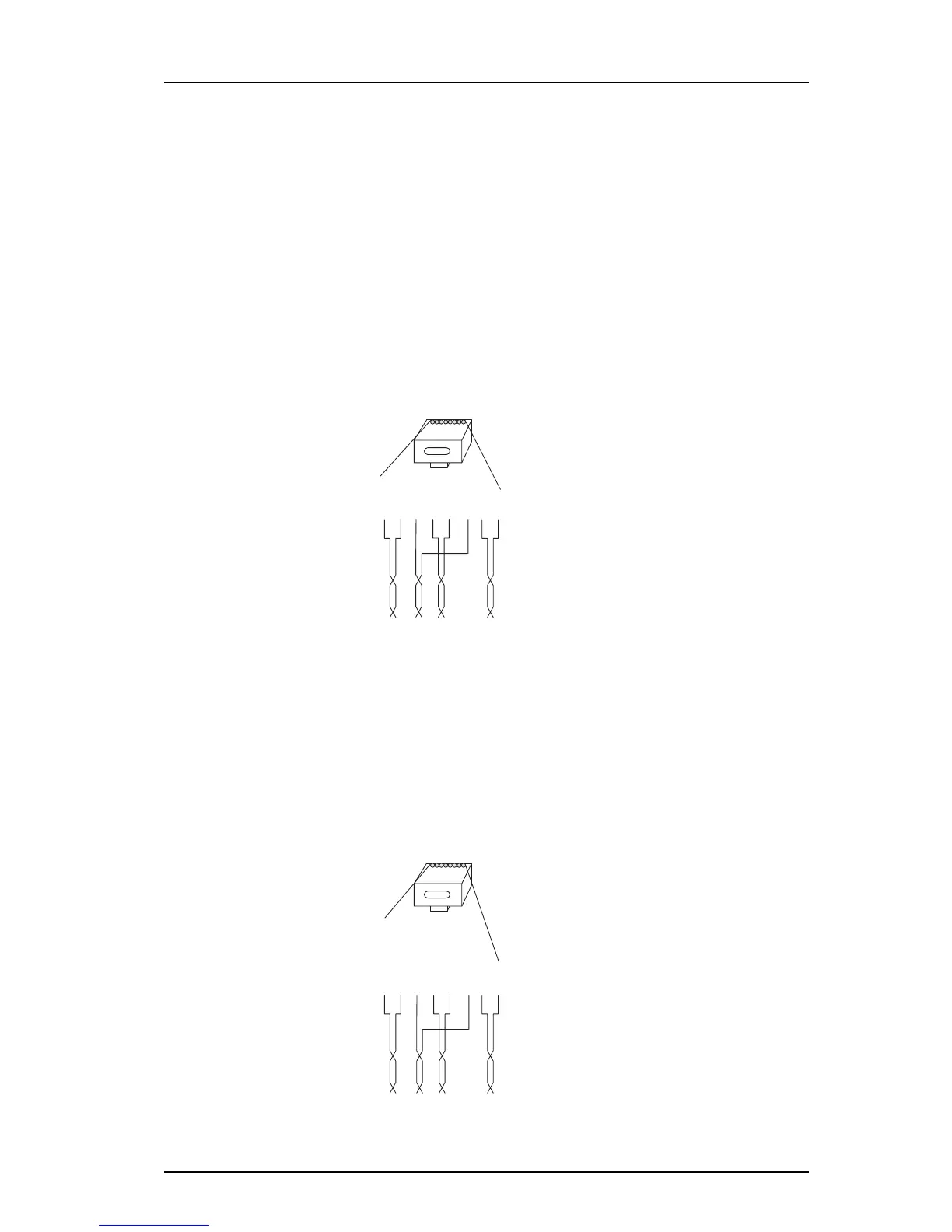

RJ45
modular jack
EPP -b
EPP -a
SC1 -a
SC0 -a
SC0 -b
SC1 -b
NC
NC
NC= Not Connected
EPP= Express Power pairs
SC = Data pair lead
028
15432678
RJ45
modular jack
Ethernet A +
Ethernet A -
Ethernet B +
NC
NC
Ethernet B -
NC
NC
NC = Not Connected
029
15432678
