TD 92579EN
15 February 2012 / Ver. H
Installation and Operation Manual
IP-DECT Base Station & IP-DECT Gateway (software version 5.0.x)
32
5.2.6 Secure the Cable
For safety reasons secure the base station cable to
a convenient point at about 30 cm from
the base station.
If for some reason the base station drops, it is secured by the cable.
5.2.7 Pinning
1 Cut the cable to the correct length and conne
ct the cable to a RJ45 modular jack.
2 For information on the pinning of the data jack see the following:
IPBS, Pin th
e IPBS Cable on page 32.
BS3x0 and DB1, Pin
the BS3x0/DB1 Cable on page 33.
Do no
t plug the connector in the base station yet!
Note: Since the distance betw
een the base station and the wall is limited, a RJ45 modular
jack without cable retention must be used.

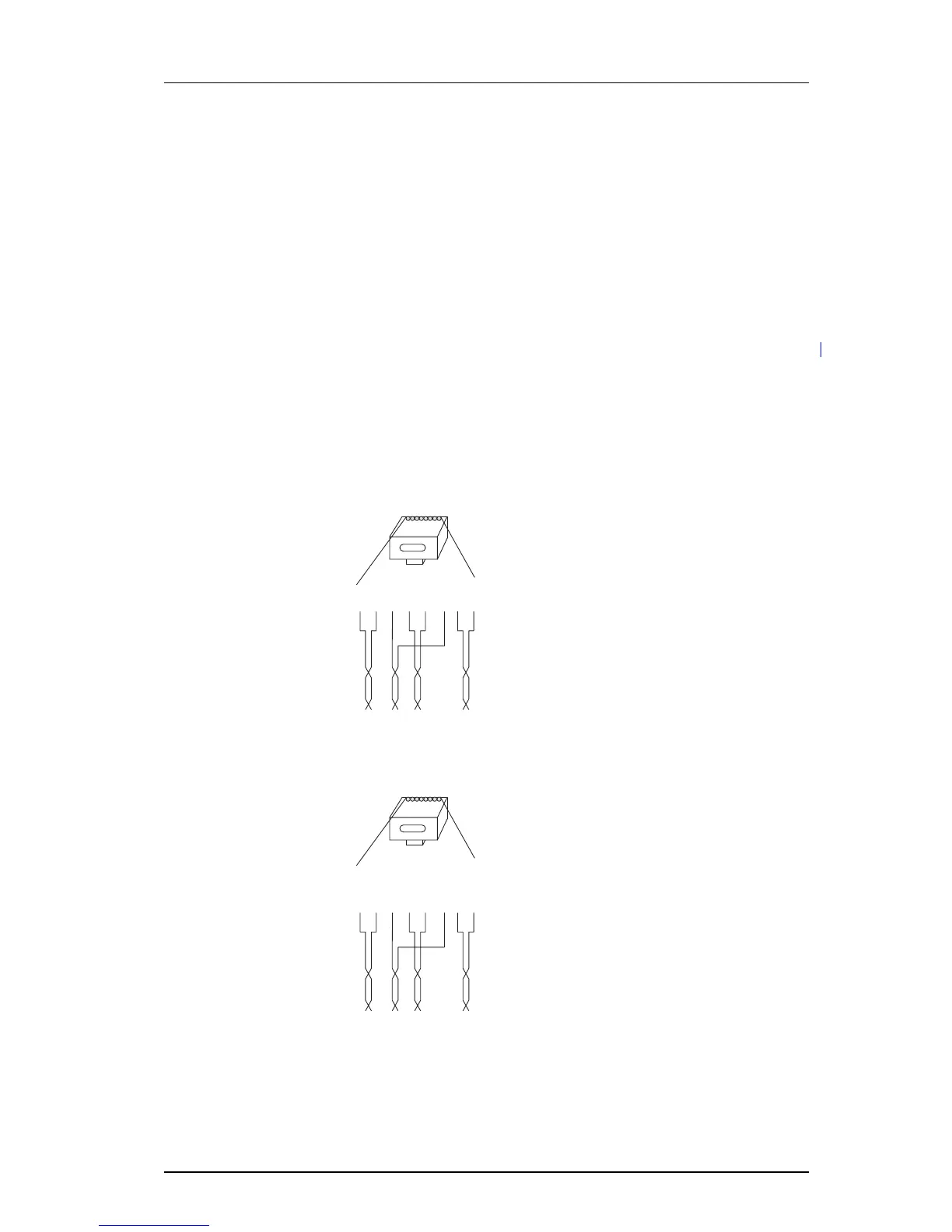

Pin the IPBS Cable
Figure 9.
RJ45
modular jack
Tx
Tx
Rx
Pwr
Pwr
Rx
Pwr
Pwr
Pwr = Power pairs
Rx = Reciever data pair
Tx = Transmitter data pair
014
15432678
Figure 12. Connector pinning of the LAN/PoE connector, power feed over the spare
cable pairs.
Figure 10.
R
J45
m
odular jack
Tx/Pwr
Tx/Pwr
Rx/Pwr
Spare
Spare
Rx/Pwr
Spare
Spare
NC
=
Not Connected
Rx/Pwr
=
Reciever & power pair
Tx/Pwr = Transmitter & power pa
ir
015
15432678
Figure 13. Connector pinning of the LAN/PoE connector, power feed over the Rx/Tx
data cable pairs.
