Power Distribution
The DB1 can be powered using the following methods:
• From the IPBL via the Express Powering Pair (EPP) and data pairs
• With a local AC-adapter
Note: For more information about power distribution, see 5.3 Power the Base Station on
page 34.
Software
The software in the DB1 can be updated by downloading new software without
disconnecting the equipment. The new software is stored in flash memory. See 8.18
Update on page 130 for information.
Connectors
• Two 8-pin RJ45 modular jacks for data and powering
LEDs

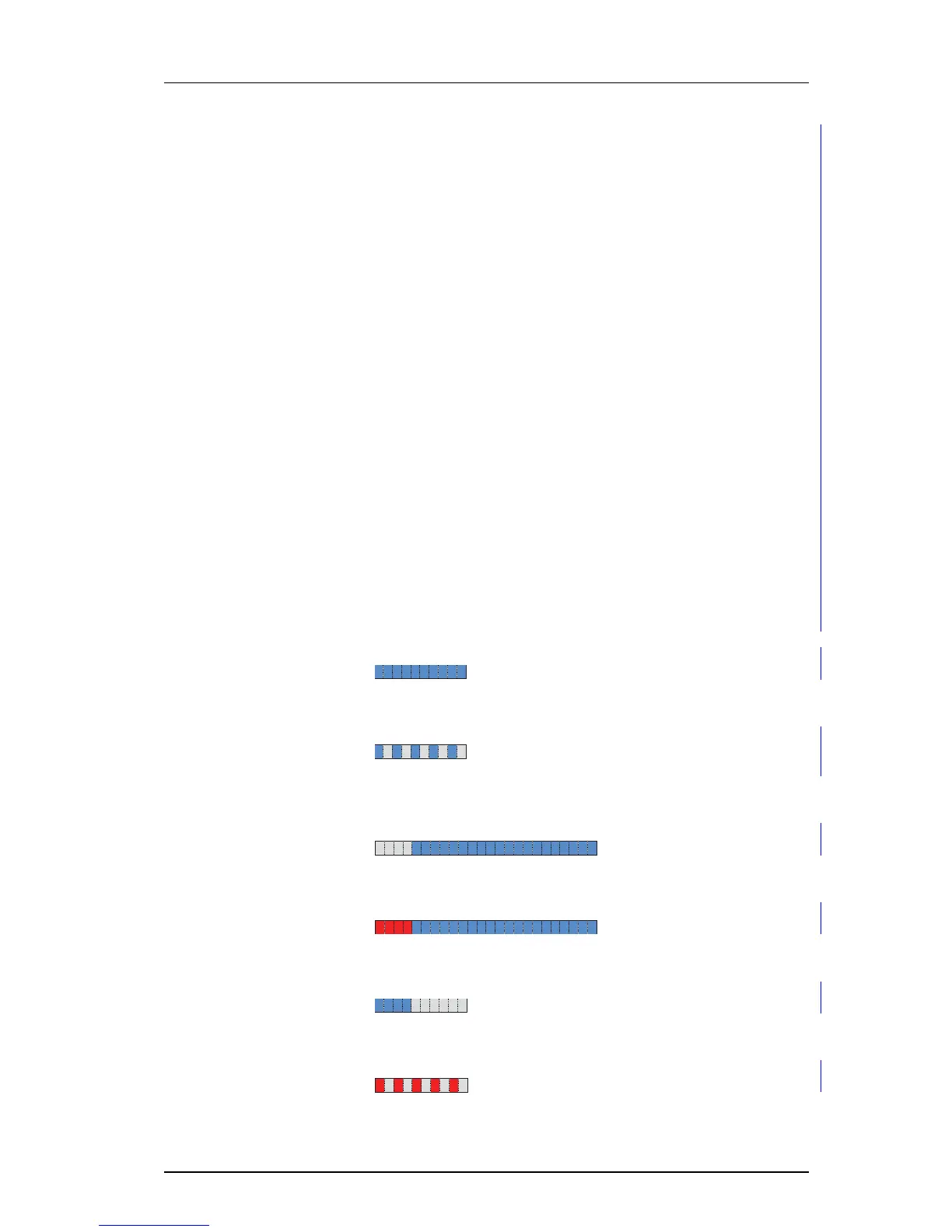

The IPBS2 has one RGB LED to indicate status. This section describes the different
indications and when they shall be used. In the illustrations below: Each blink pattern is
represented by a number of blocks where each block is 100 ms. Light grey blocks means
that the LED is off. Whenever the indication is changed the new pattern always starts from
the first block.
Idle/OK Solid blue. DB1 operational and no
traffic on the DB1.
Starting up 100 ms blue, 100 ms off. The DB1 is in start-up phase,
i.e. waiting to be initialized
by the IPBL.
Active traffic 400 ms off, 2000 ms blue. DB1 operational and traffic
on the DB1.
Fully occupied for
speech traffic
400 ms red, 2000 ms blue. Fully occupied with traffic.
Software
download
400 ms blue, 600 ms off. Download of firmware in
progress.
Error 100 ms red, 100 ms off. U
PN
layer 1 communication
error.
