CHAPTER 5 CUSTOMIZING THE EVOLUTION BACKUP DISPLAY
Page 5-10
091-00027-001 REV A Evolution Backup Display Pilot’s Guide
Page 5-11
091-00027-001 REV A
Evolution Backup Display Pilot’s Guide
KEY DESCRIPTION OPTIONS
External Power Source Voltage. Displays voltage level of inputpower. Status Only
Battery Status Description
Status Only
##% Displays battery % charge.
CHARGING
The battery has sucient voltage and can accept
charging, aircraft power is available, and the
temperature sensor is within limits (0°C to +55°C).
FAILED
The battery voltage is less than 6 volts; i.e.
insucient for charging.
READY
The connected battery and battery voltage are
satisfactory.
Table 5-17
Menu – POWER SETTINGS
KEY DESCRIPTION OPTIONS
Main Application Processor Software Version Status Only
Input Output Processor Software Version Status Only
Unit Serial Number Status Only
Table 5-18
Menu – SYSTEM STATUS

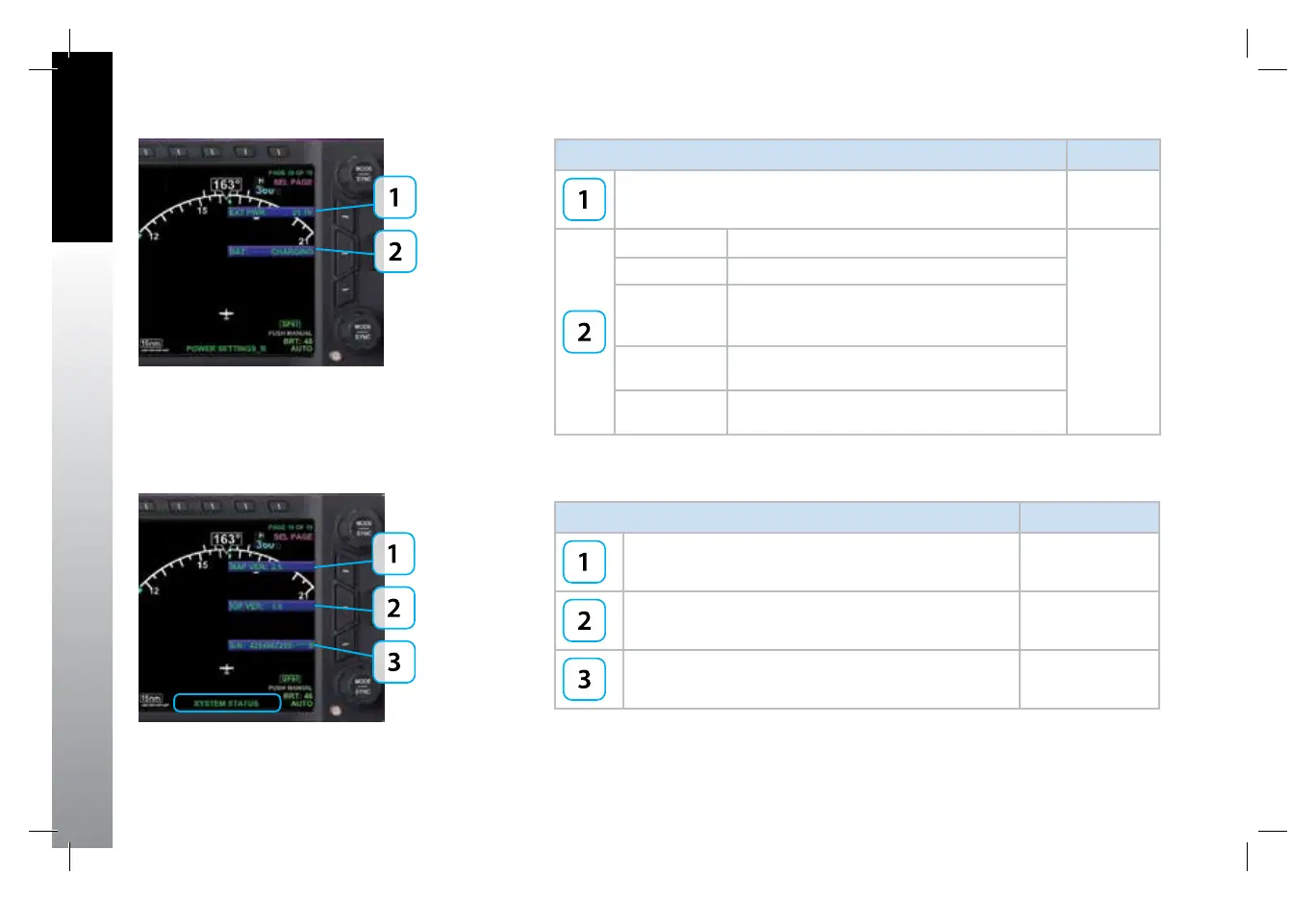

Figure 5-18
SYSTEM STATUS
Figure 5-17
POWER SETTINGS B
