Programming Guide
© Copyright Asyril S.A.
000.101.572
Version : A1
11/83

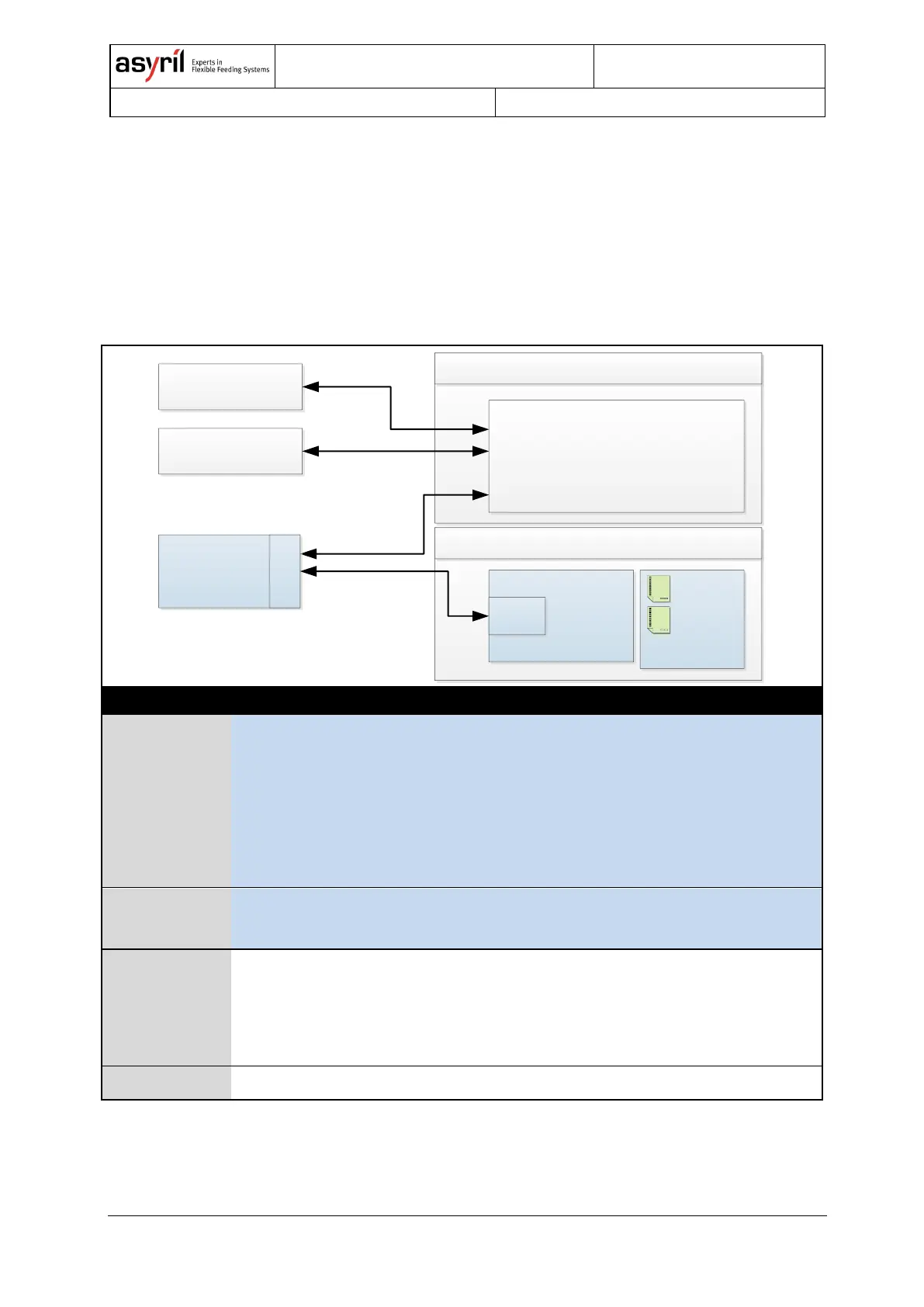

3.1.1. Direct connection to the Asycube, configuration with Asycube HMI
In this integration mode, the integrator uses the Asycube HMI (installed on a computer, the
same as the integrator system or another one) to configure the Asycube, and communicates
with the Asycube from his own system in order to execute the vibrations. All the
configurations are made with the Asycube HMI and can be exported in different types of files
(*.fconf and *.fseqfiles).
HMI PC (can be the same as controller)
PC
Controller
Asycube HMI
.fconf
.fseq
CAMERA
ROBOT
.dll
ASYCUBE
Firmware
LEVEL
TASKS
Asycube
 Generation and synchronization of the desired vibration
 Execute sequences
 Save and reload 25 vibration sets (26 for the reload)
 Save and reload 25 sequences (26 for the reload)
 Activation of the outputs and backlight
 Choice/Management of the optimal sequence based on the vision feedback
Asycube HMI
 Configuration and optimization of the feeding (vibration) parameters
 Configuration and optimization of the sequences
Integrator
 Communication with the Asycube
 Recipe management (memorize vibration set ID and sequence ID for each
component).
 Synchronization of the feeder and the machine
Optional
 Treatment of the recipe (read/write parameters)
Table 3-1: Integration mode: Asycube only
