Asyril Asycube 530 Programming Guide

Asycube - Asyril SA
Programming Guide
© Copyright Asyril S.A.
000.101.572
Version : A1
7/83
Vibration
Number
Platform direction
Hopper direction
(only for Asycubes 50
and 80)
Hopper: outputs activation
(only for Asycubes 240 and
530)
A
0
Forward
Forward
Output 1
B
1
Forward left
Output 2
C
2
Forward right
D
3
Left
E
4
Right
F
5
Backward
G
6
Backward left
H
7
Backward right
I
8
Flip
J
9
Long axis centering
(only for Asycubes 240 and
530)
K
10
Short axis centering
(only for Asycubes 240 and
530)
Table 2-2: Vibration direction convention

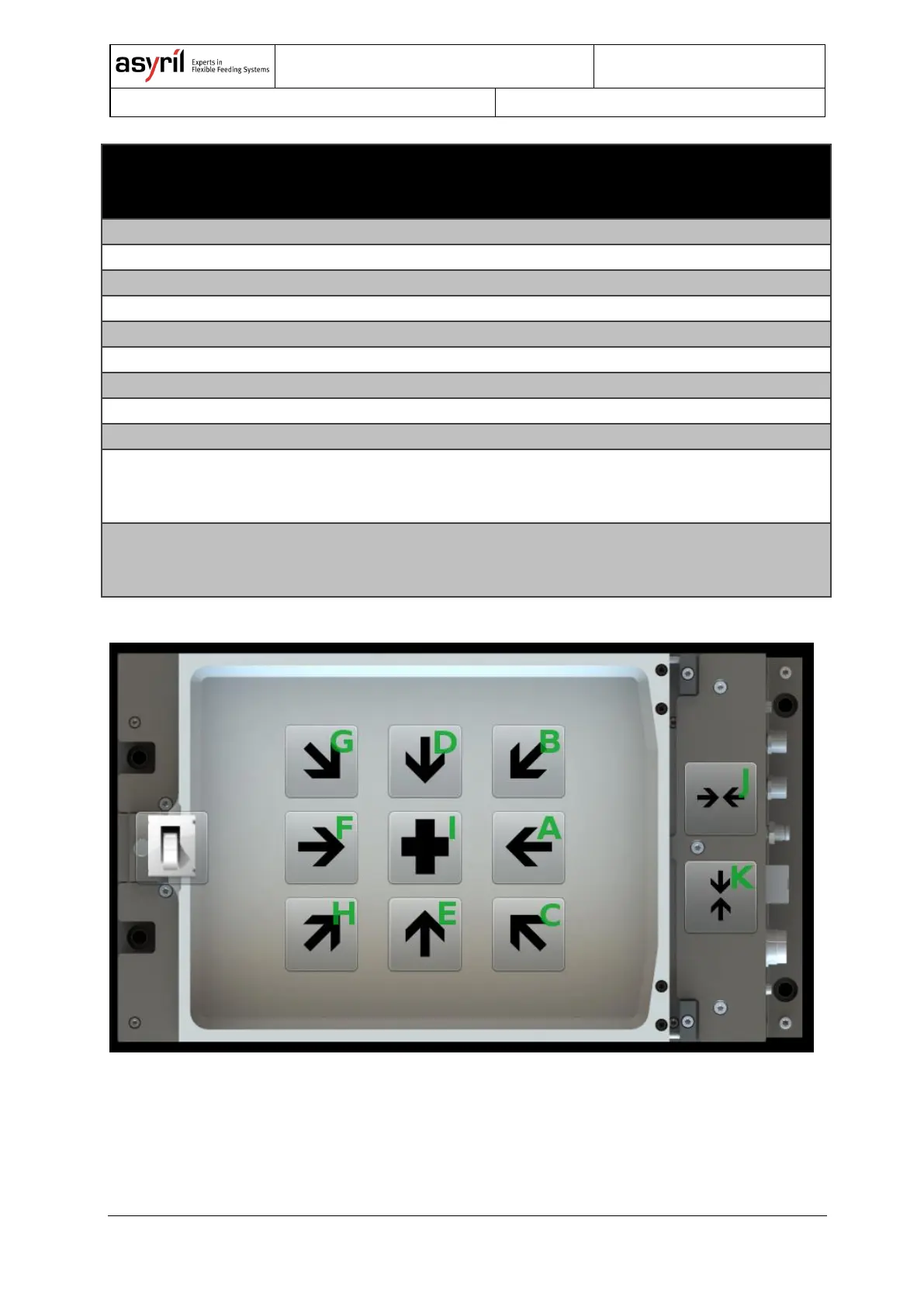

Figure 2-3: Graphical representation of the direction convention for the Asycube 240
