FlexiROC T35 R/T40 R 8 Drilling
107 No: 3171473547.1 en
!
NOTE: The rod grippers are opened automatically when the carousel rotates. Applies
only to FR T30 R -01 with RHS.
1.
Make sure the shank joints are broken loose.
2.
Activate the rapid feed stops. Switch S113, position (a).

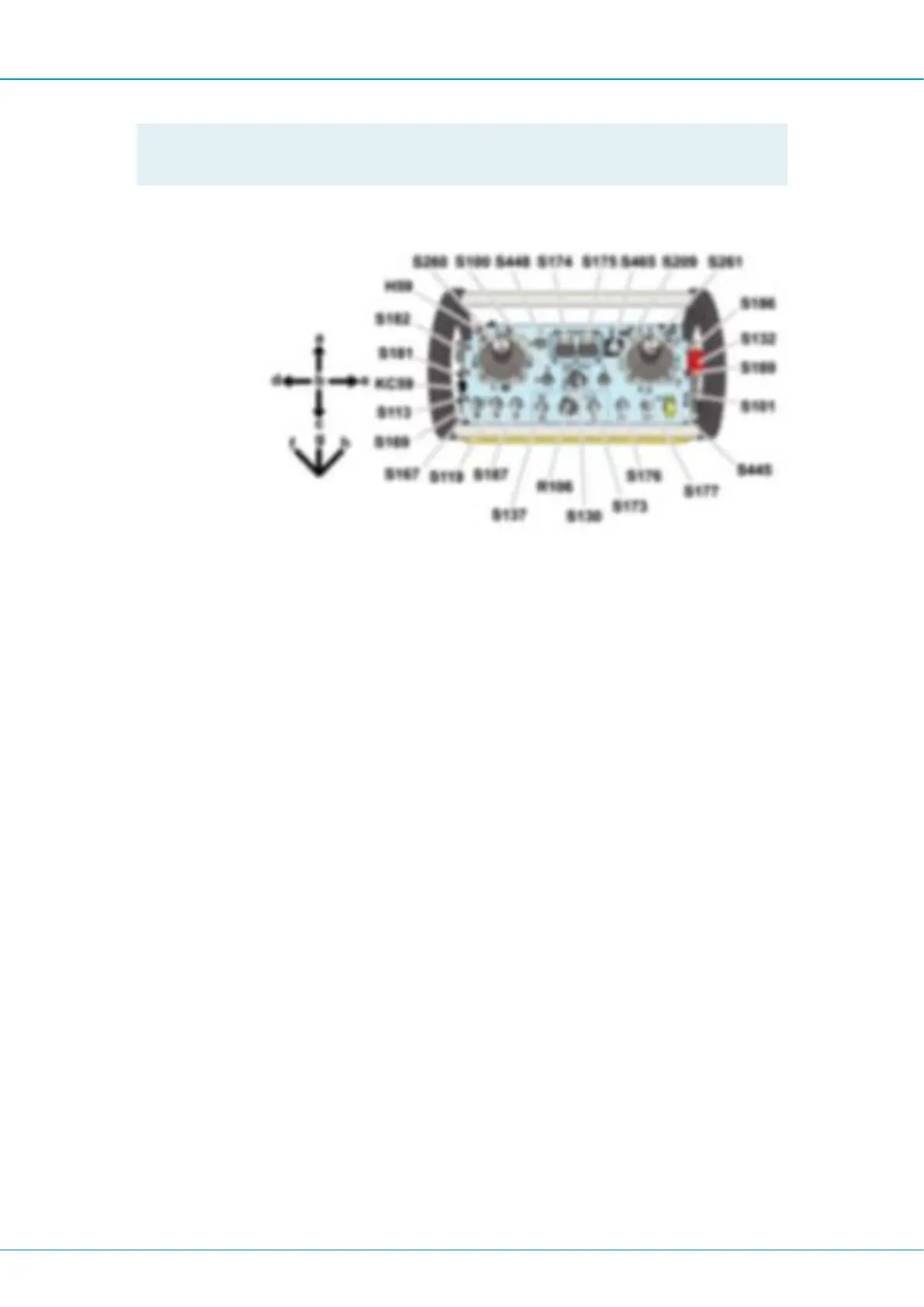

Remote control box.
3.
Open both drill-steel supports. Switches S119 and S187, position (c).
4.
Extract the drill string until the rock drill stops automatically with the sleeve in the up-
per drill-steel support. Right multi-function lever, sector (c).
5.
Close the upper drill-steel support. Switch S119 to position (a).
6.
Open the rod handling grippers by turning the left multi-function lever in any direction.
7.
Open the rod handling arms by pulling back the left multi-function lever.
8.
Close the grippers to hard grip by leaving the multi-function lever pulled back and
turning the lever to neutral.
9.
Move the right-hand multi-function lever to threading position, sector (g), in order to
tighten the joint between the shank adapter and the sleeve.
