FlexiROC T35 R/T40 R 2 General
11 No: 3171473547.1 en
11 Hydraulic oil pumps
12 Electric cabinet
13 Radio receiver
14 Track frames
2.4 General system description
2.4.1 General description of the drill rig
This drill rig is a fully diesel-hydraulic drill rig designed for surface drilling applications such
as in quarries and on construction sites.

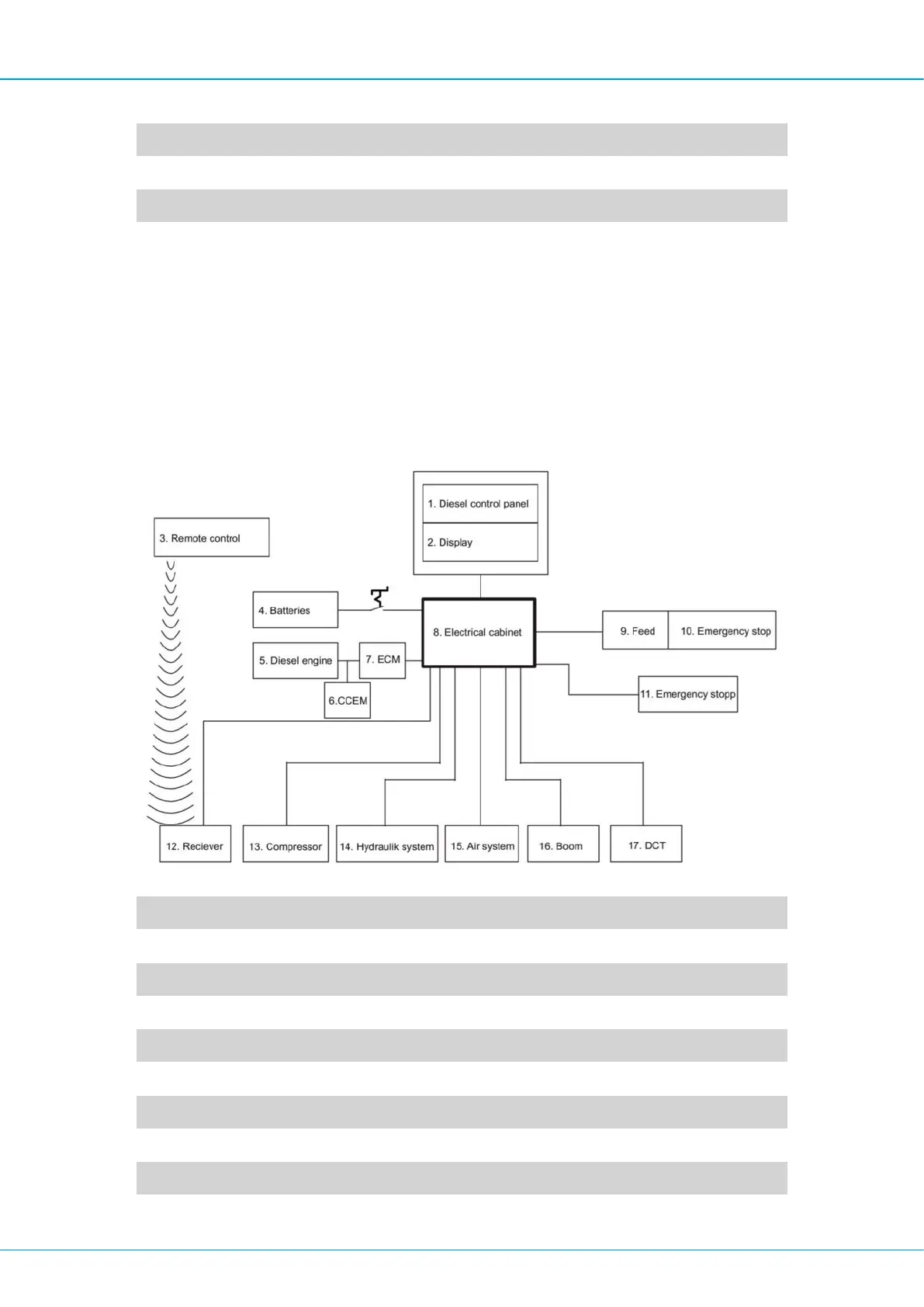

The drill rig consists of the following main components: (See illustration under General De-
scription)
General Description
1 Control panel for diesel engine
2 Display
3 Remote control box
4 Batteries
5 Diesel engine
6 Engine emissions cleaning unit CCEM
7 Engine electronic control module ECM
8 Electrical cabinet (A1)
9 Feeder
