FlexiROC T35 R/T40 R 5 Controls
47 No: 3171473547.1 en
5.1.10 Display for engine and directional instruments
Display for engine and directional instruments
Display for engine and directional instruments.
The diesel engine is controlled by an electronic unit that continually sends information to
the engine display. The engine display consists of two fields and nine function buttons (See
illustration: Engine display).
!
NOTE: Do not use the drill rig if an error signal is shown on the display. If a warning
symbol is displayed, the drill rig must be deactivated and the fault rectified.

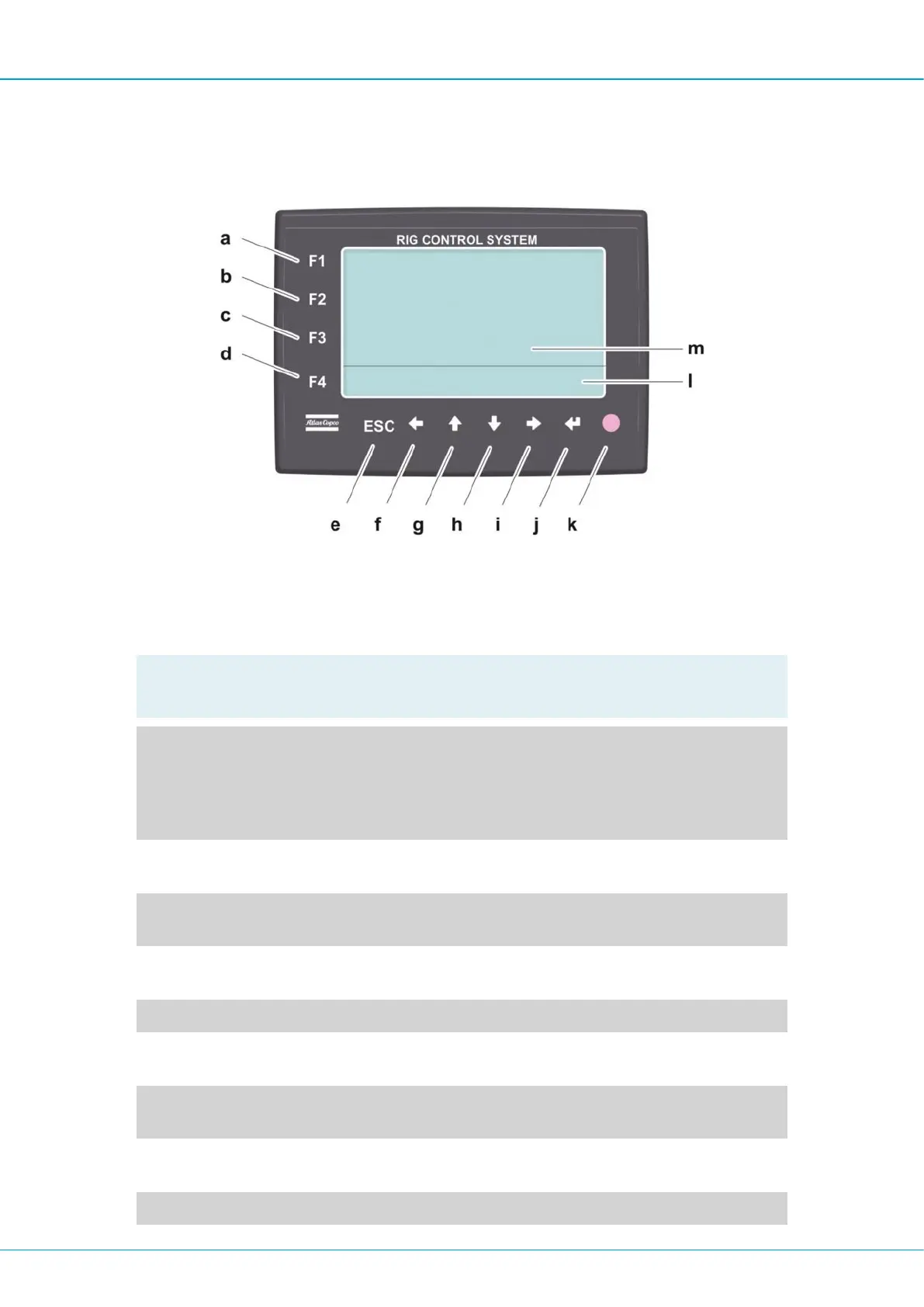

a Function button F1: Provides information on
engine speed, engine temperature, hydraulic oil
temperature and compressor temperature. To ac-
cess information on the soot content in the ex-
haust cleaner press F1 again.
b Function button F2: Gives information on the
directional instrument.
c Function button F3: Provides information on
drilled length
d Function button F4: GPS compass (additional
equipment)
e ESC : Returns to previous presentation.
f - i Arrow keys: For making selections in graphic
presentation (Marked in green).
j Enter key: To confirm selection of graphic
presentation.
k Indicator lamp: Indicates in connection with
graphic presentation for directional instrument
l Status field
