FlexiROC T35 R/T40 R 5 Controls
38 No: 3171473547.1 en
c Max. water mist
S465 Button for zeroing hole depth
R106 Winch traction potentiometer (when tramming)
Clockwise - Increased pressure, more traction
Anticlockwise - Reduced pressure, less traction
H59 Indicator lamp
n Flashes green quickly: Indicates that the remote control box is searching for
contact
n Red flash: Indicates low battery level in remote control box
n Slow green flash: Radio system active
n Flashing irregularly: Indicates fault on transmitter*
KC59 Socket for remote control box cable
Table15: Functions
5.1.3 Right-hand multifunction lever in drilling position

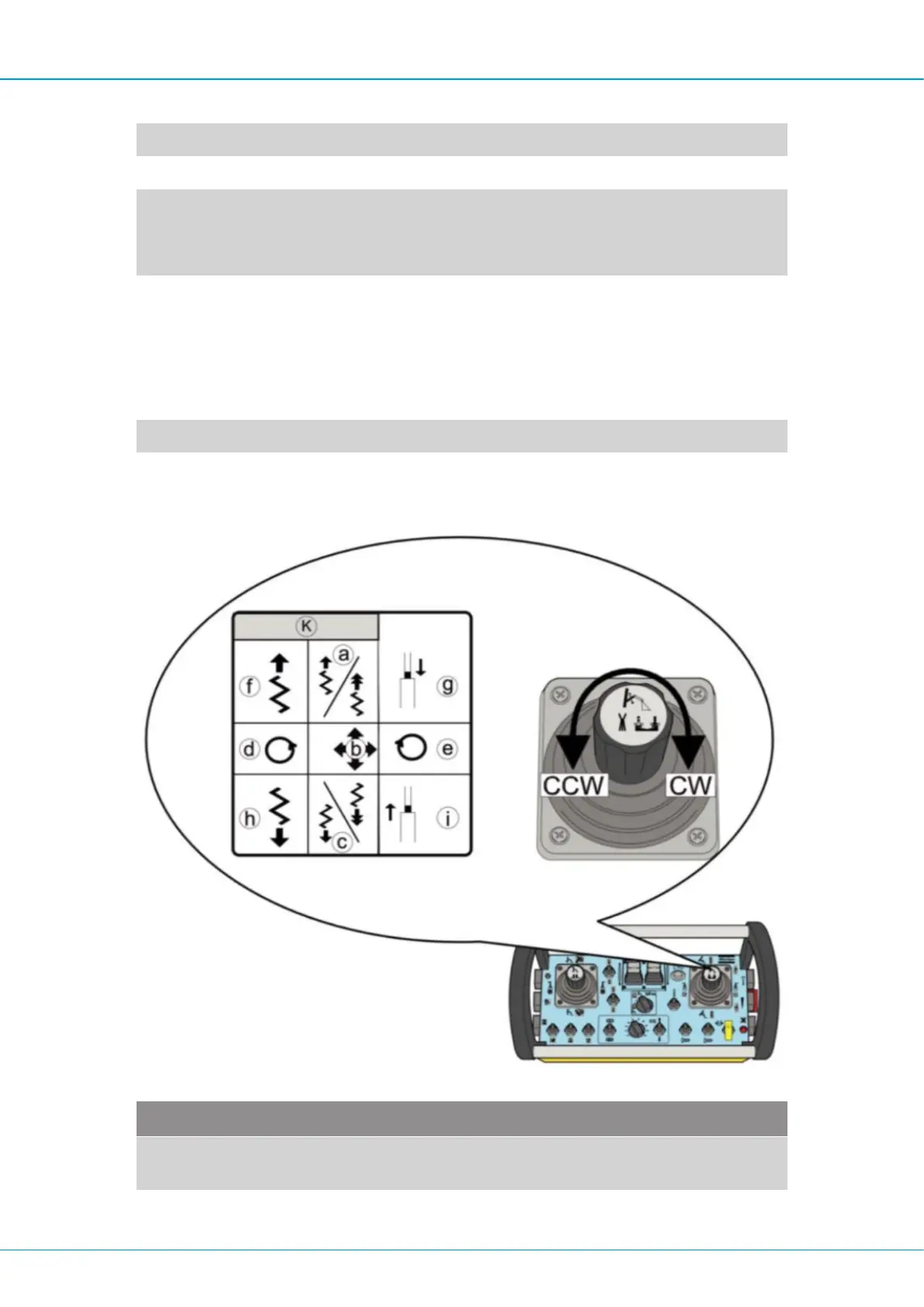

Sector description - Multi-function lever S261
Sector Function
a Drill feed forwards (when percussion active)/
Rapid feed forwards (when percussion inactive)
b Neutral
