FlexiROC T35 R/T40 R 9 Angle instruments
117 No: 3171473547.1 en
g Number of drill rods.
h Reset of drilled length counter: Before the start of each hole, the drill bit should be posi-
tioned against the ground. Use the arrow keys to mark the button next to the symbol and
press Enter. The button will then become blue. Current drilled length (b) should show 0. This
reset is also available in the angle instrument menu.
i Activation of the laser plane function: See the chapter Options.
Table43: Drilled length
9.1.5 Settings
When the system is installed or a sensor is replaced, the system must be calibrated and
configured. This is done by logging in with a password in the "Settings" menu.
1.
Press the ESC key until the basic menu of the display is shown.
2.
Use the arrow keys to select the button by the symbol for the "Settings" menu and
press Enter to confirm. The display will then show the "Settings" menu.
3.
Use the arrow keys to mark the numerical field for logging in and press Enter to obtain
a flashing cursor in the field.
4.
Use the arrow keys to enter the password (6 characters). When an authorised pass-
word has been entered, "OK" will be displayed by the digits. Confirm with Enter to ac-
cess the "Logging in" menu.

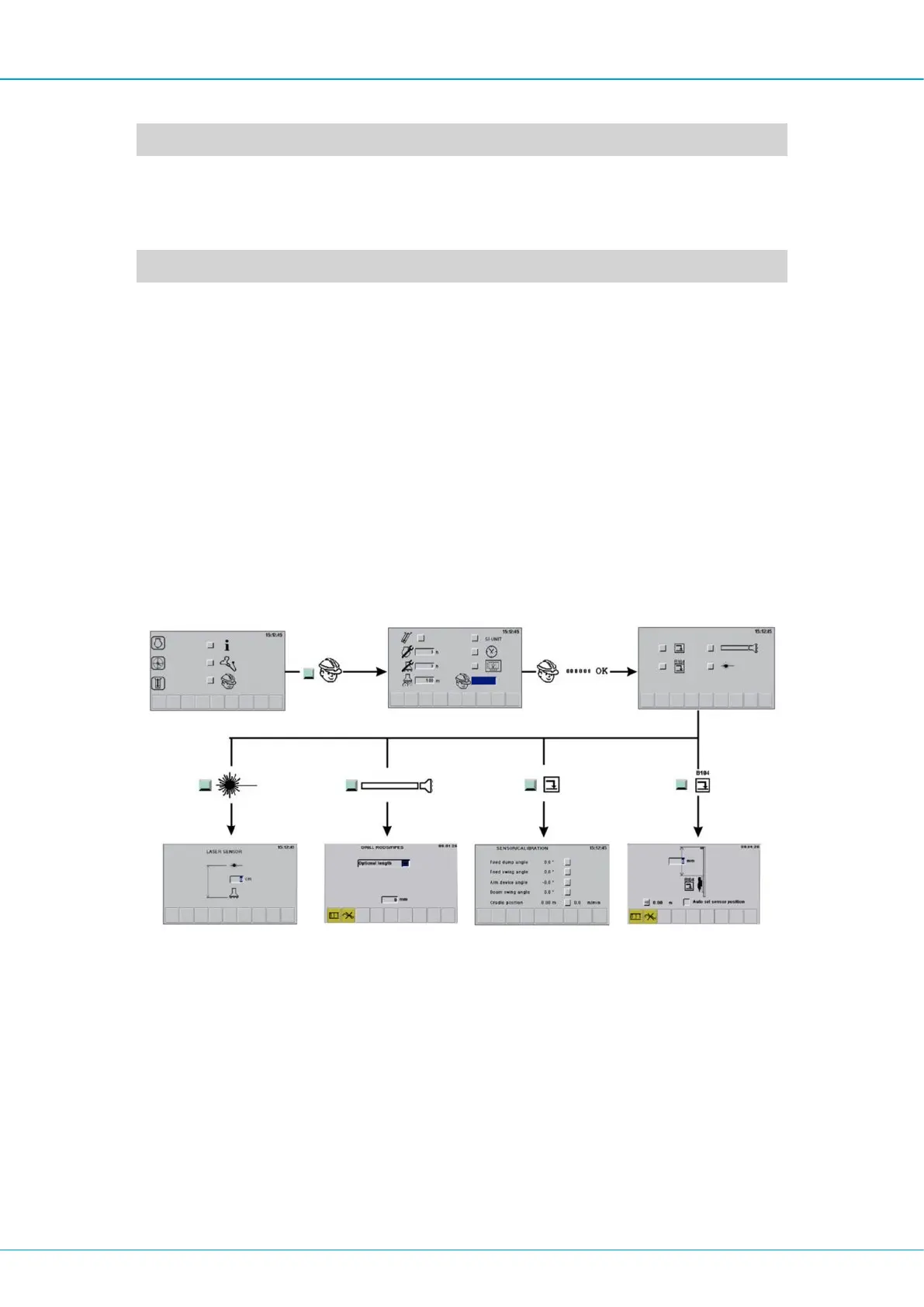

Menu tree for basic settings
Basic settings
The following settings are not normally required when calibrating the angle measuring in-
strument. If, on the other hand, any of the following has taken place, the basic settings
must be redone.
n The display unit has been replaced.
n A drill steel of another type than was originally supplied with the drill rig is being used.
1.
Log in to the "Logging in" menu following the instructions above.
2.
Use the arrow keys to highlight the button by the "drill steel" symbol. Confirm with
Enter to access the "drill steel" menu.
