FlexiROC T35 R/T40 R 8 Drilling
108 No: 3171473547.1 en

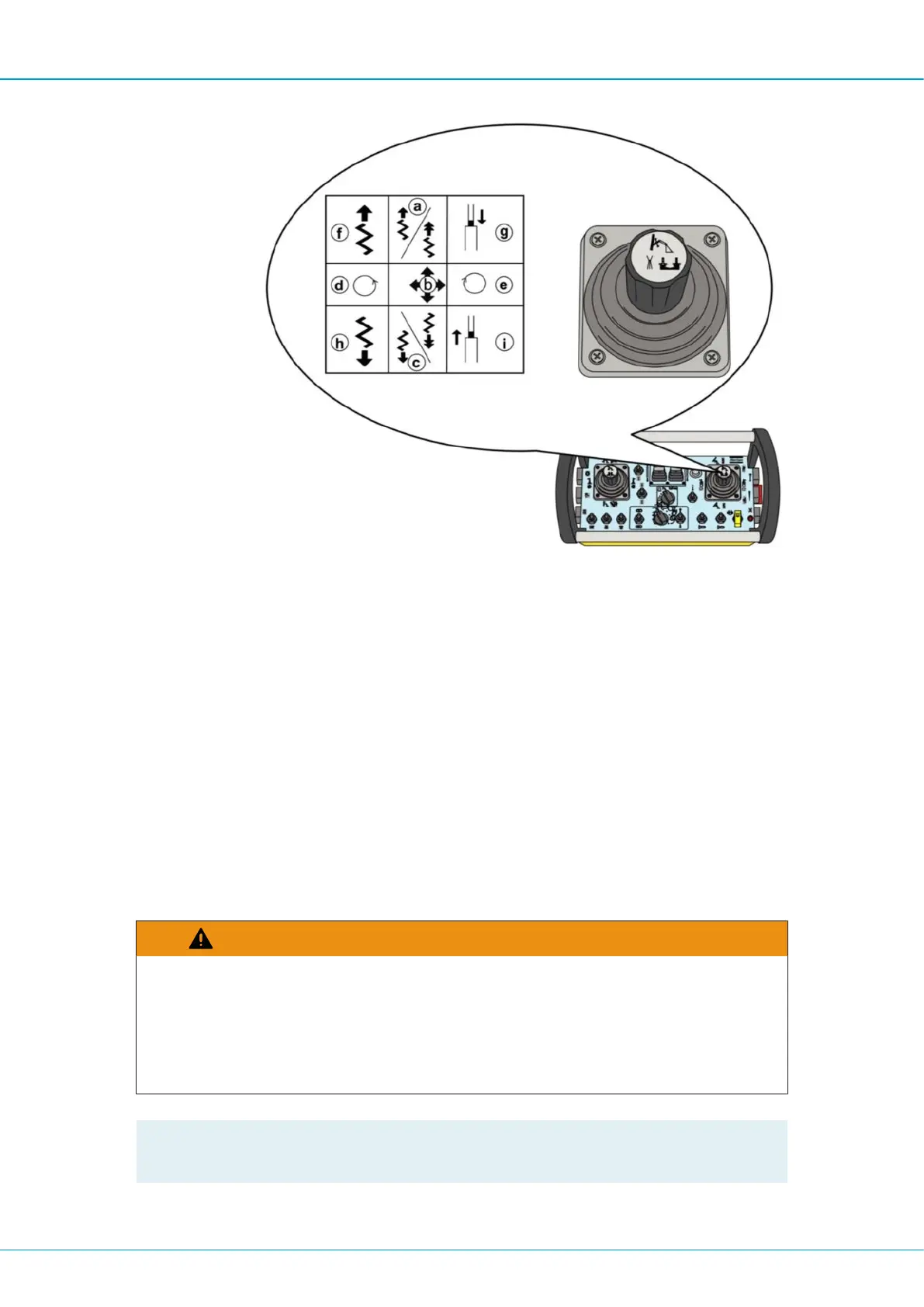

Sector description, right multi-function lever.
10.
Return the left-hand multi-function lever to neutral position (loose grip).
11.
Activate unthreading by moving the right multi-function lever to sector (i) (break loose
rod joints).
12.
Pull back on the right-hand multi-function lever (rock drill stops at limit switch).
13.
Pull back on the left-hand multi-function lever (hard grip).
14.
Unthread the shank adapter from the drill rod by moving the left multi-function lever to
sector (i).
15.
Insert the drill rod into the carousel by moving forward the right multi-function lever.
16.
Rotate the carousel by moving the left multi-function lever to the left.
8.6 Changing drill bit
WARNING
Serious injury
Moving parts
u Risk of personal injury, clothing can be trapped
u Stop rock drill rotation when changing bits
!
NOTE: Never start percussion with the drill bit free without any resistance.
1.
Operate the feeder until the spike is approx. 10 cm from the rock.
