FlexiROC T35 R/T40 R 3 Technical data

21 No: 3171473547.1 en

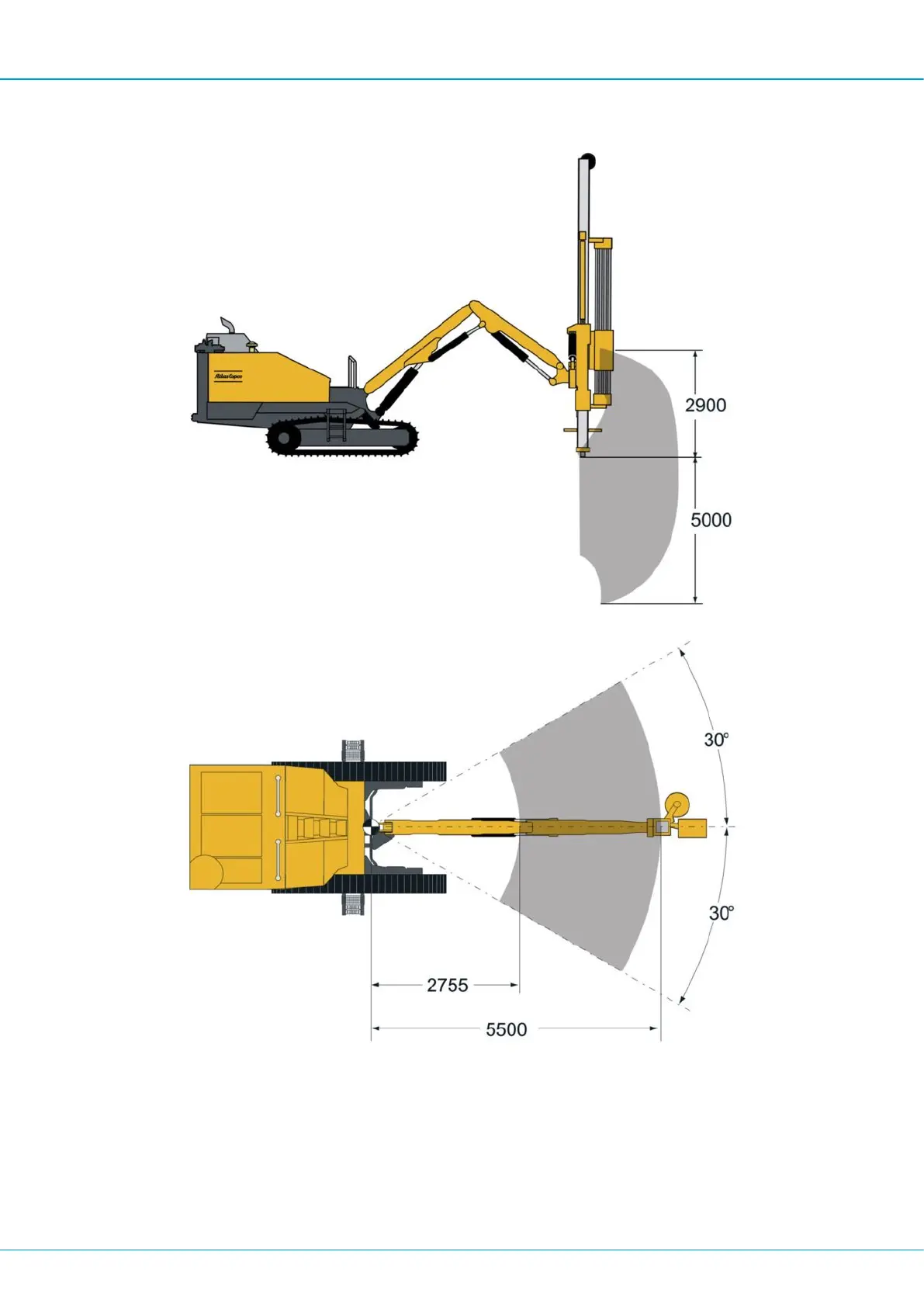

Coverage area

Feeder angles of inclination

Feed inclination angles with swing cylinder connected in various ways.
