FlexiROC T35 R/T40 R 5 Controls
43 No: 3171473547.1 en

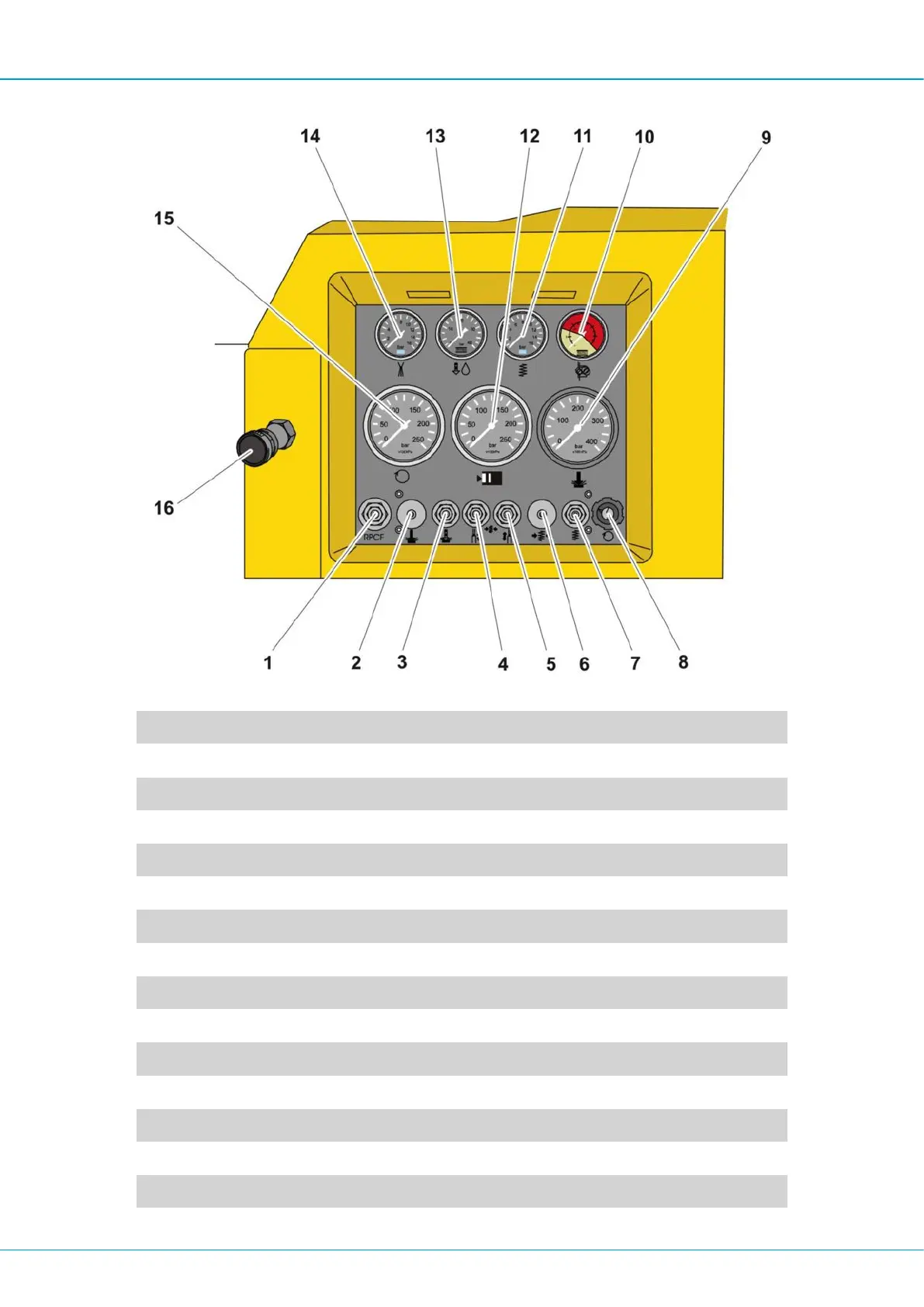

Pressure adjustment and pressure gauges.
1 Adjustment of RPCF
2 Adjusting high percussion pressure
3 Adjusting low percussion pressure
4 Adjusting threading pressure
5 Adjusting unthreading pressure
6 Adjusting high drill feed pressure
7 Adjusting low drill feed pressure
8 Adjusting rotation speed
9 Percussion pressure gauge
10 Return oil pressure gauge
11 Drill feed pressure gauge
12 Damper pressure gauge
13 Lubrication oil pressure gauge
14 Flushing air pressure gauge
15 Rotation pressure gauge
