Page 63

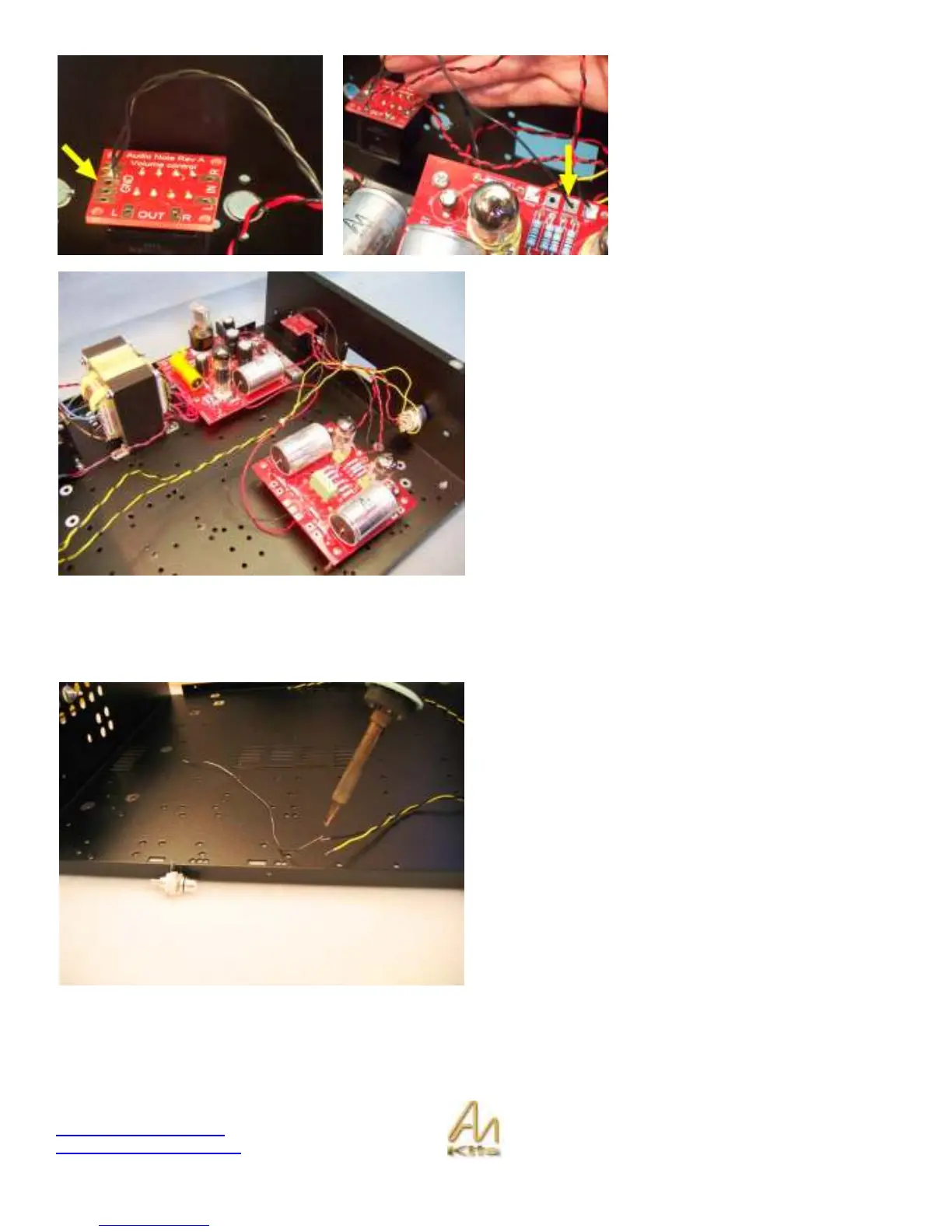

Now connect a ground wire – Black –
from the NOBLE PCB Ground to either
the LINGND or the RINGND (these
are connected internally).
That should do it! We now have a completed wiring for a
single Line Stereo Input for your pre-amp! You can do a
quick tie wrap to clean up some of the wiring.
You can now add your required number of extra line inputs
or wait until you have carried out the test outlined in the
next section.
Step 2: Prepare a twisted PTFE pair.
Take one end and strip the ends off with wire strippers.
Then tin the ends by adding solder to them – see opposite.
