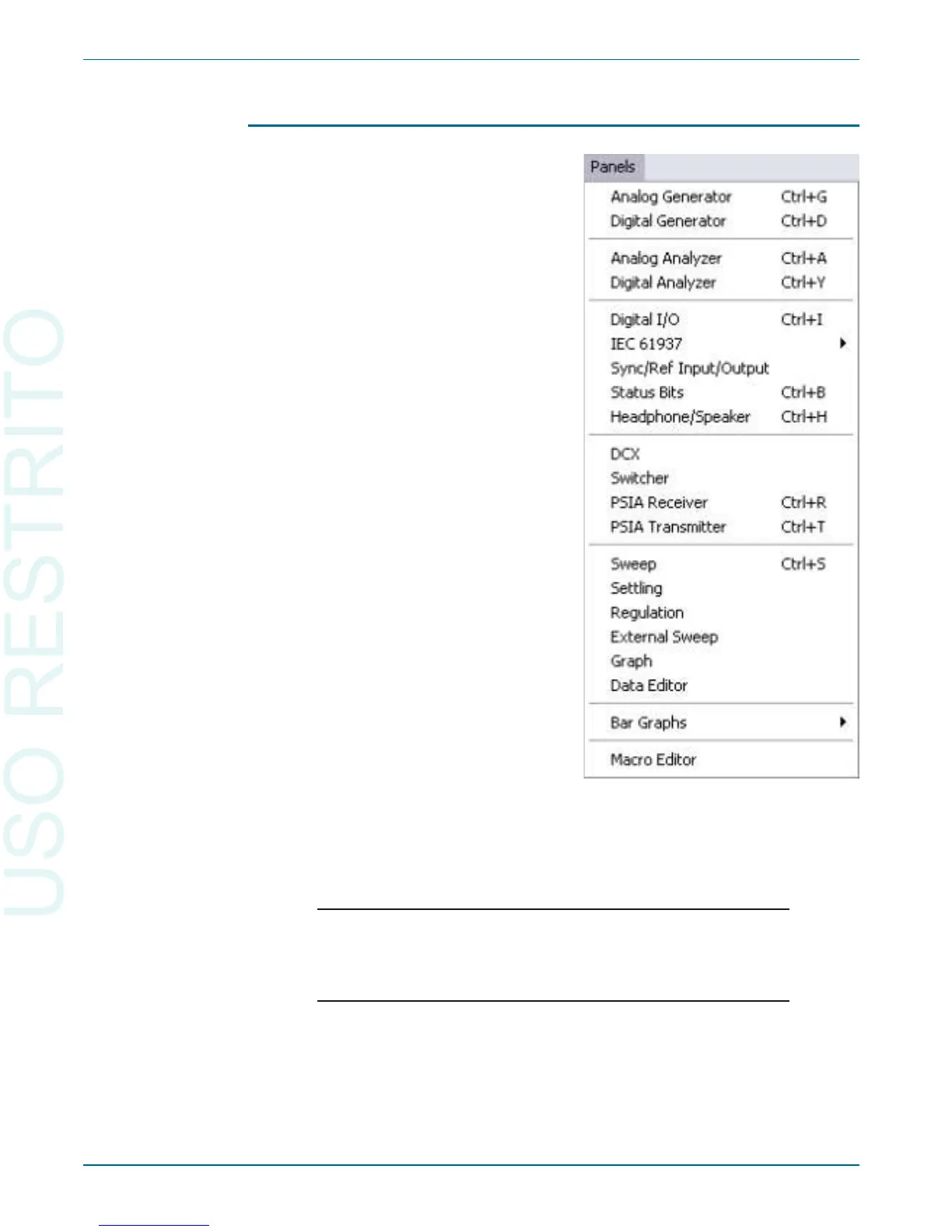

The Panels Menu
The Panels menu shows all the con trol pan els avail able in the con trol soft -
ware. Click on a Panel name (or on its cor re spond ing Toolbar but ton) to open
a panel on the cur rent workspace page. Panels can be du pli cated on more than
one page for con ve nience.
Closing a panel does not stop its ac tiv ity. If a gen er a tor panel
has been set to out put a sine wave, or an an a lyzer panel to
mea sure a volt age, these activities con tinue whether or not
the panel is vis i ble on any page.
The panel func tions are dis cussed in de tail in the 2700 Se ries User’s Man -
ual.
28 Getting Started with Your 2700 Series Instrument
Chapter 4: 2700 Series Control Software The 2700 se ries menus
