Chapter 5
Quick Guides
Introduction
The Quick Guides in this chap ter pro vide a way to get fa mil iar with the
2700 se ries user in ter face, and to get some im me di ate re sults from your in stru -
ment. As you be come more com fort able with the sys tem, please re fer to the
2700 se ries User’s Man ual for fur ther in for ma tion.
The Quick Guides be gin with the as sump tion that your 2700 se ries in stru -
ment is turned on and con nected to your PC, and that the AP2700 soft ware has
been launched and is in com mu ni ca tion with and prop erly con trol ling your in -
stru ment. No au dio ca bles or external de vices un der test (DUTs) are needed
for the Quick Guides.
Getting Started with Your 2700 Series Instrument 33

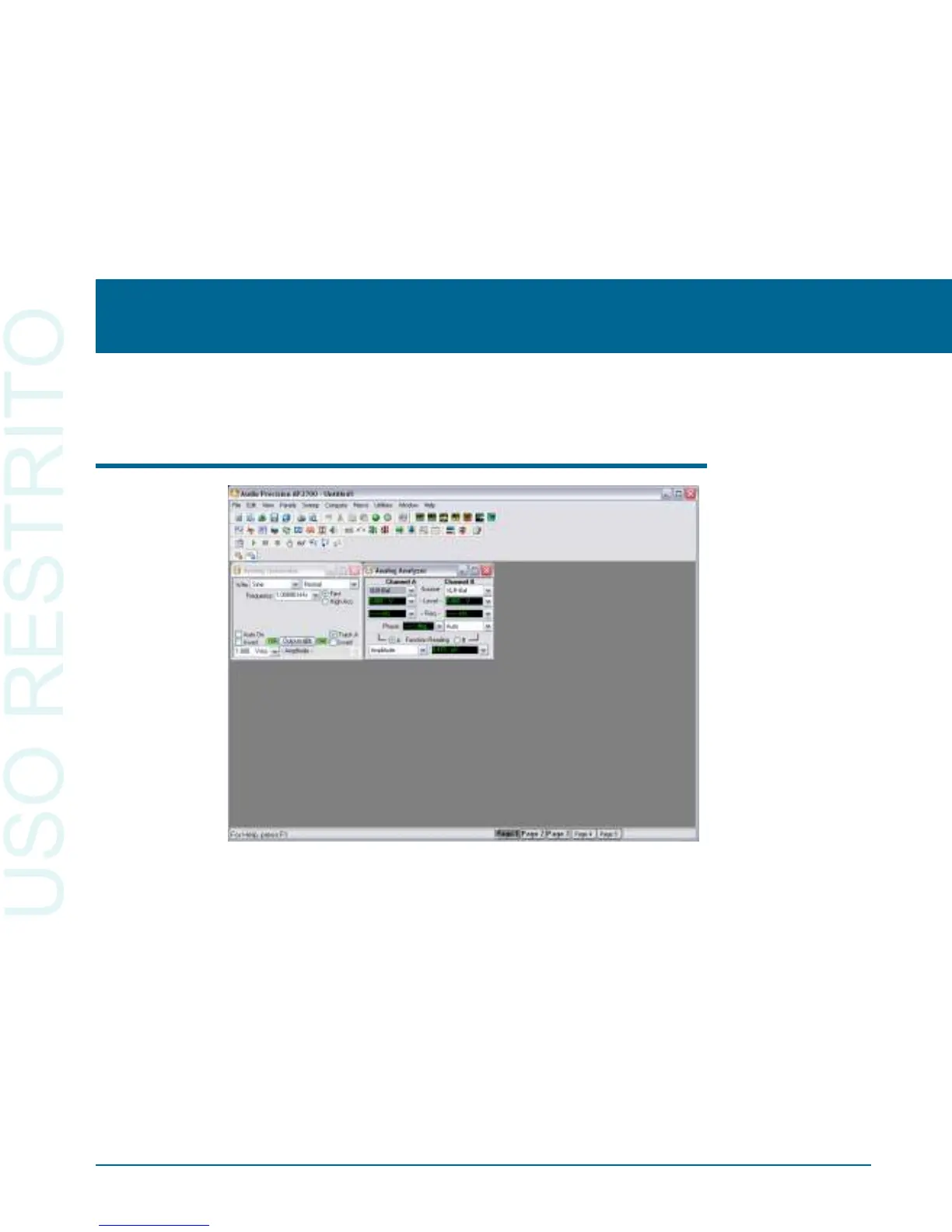

Figure 16. 2700 series workspace, New Test defaults.
