Graphs of Typical Digital Domain Performance
Digital Analyzer Chapter 6: Specifications
Getting Started with Your 2700 Series Instrument 85

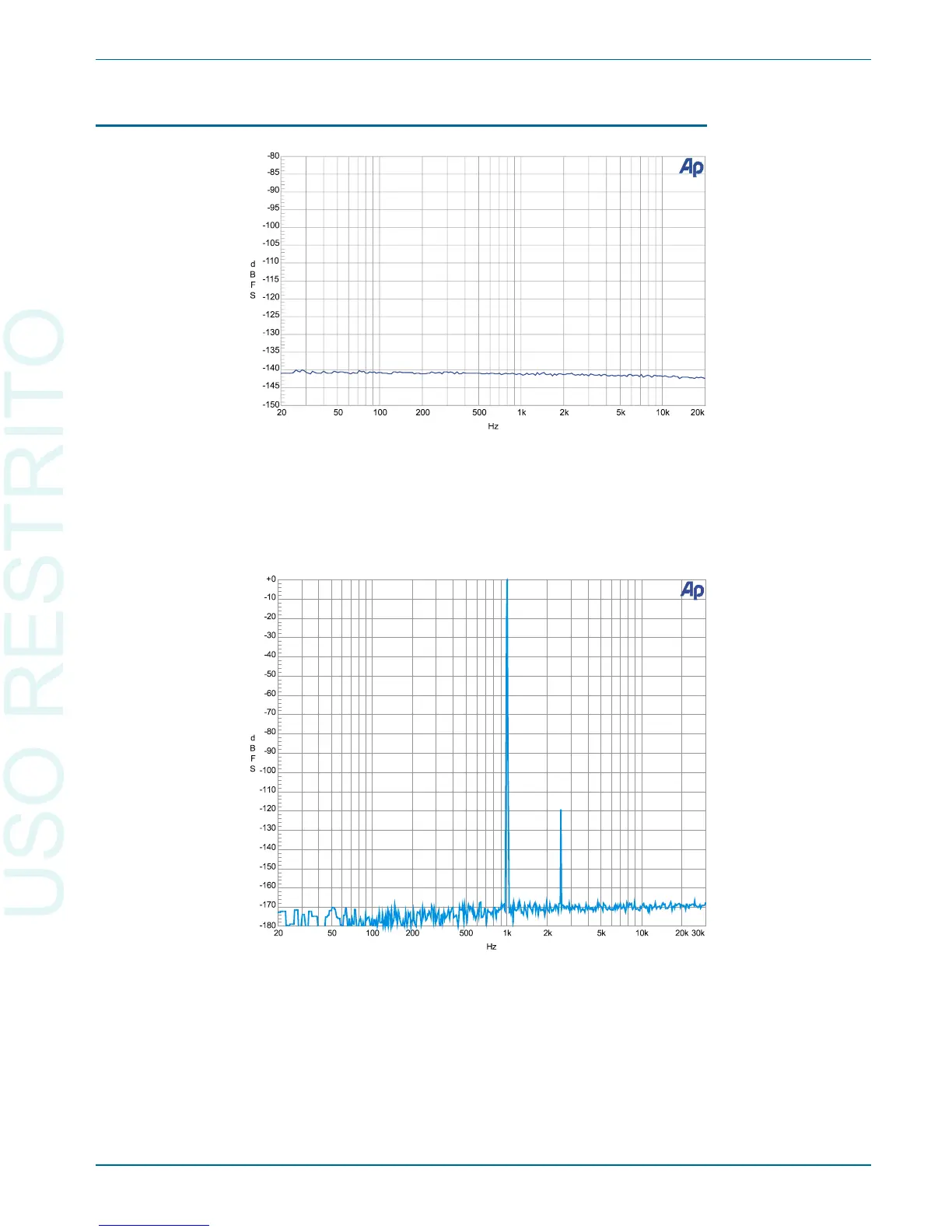

Figure 61. Typical Digital Domain system residual THD+N showing
components below –140 dB.
Figure 62. Illustration of typical Digital Domain FFT dynamic range.
Signal is 0 dB 1 kHz with a secondary signal at –120 dB and
2.5 kHz.
