Harmonics/Spurious Products £0.000001% [–160 dB].
Variable Phase Sine Wave
Phase Range ±180 deg.
Phase Resolution 0.01 deg.
Sine + Offset
Offset Amplitude Sine amplitude + |offset amplitude| £100% F
S
.
Sine Burst and Shaped Sine Burst
Envelope Rectangular for Sine Burst,
Raised cosine for Shaped Burst. –see Figure 60
Interval 2 cycles–65536 cycles.
Burst On 1 to (number of Interval cycles minus 1).
Square Wave
Frequency Range £1 Hz to 1/6 Sample Rate. Frequencies are
limited to even integer sub-multiples of the
Sample Rate.
Even Harmonic Content £0.000001% [–160 dB].
SMPTE/DIN Waveform
Upper Tone Range 2 kHz to 47% of Sample Rate
[22.56 kHz at 48 ks/s].
Lower Tone Range 40 Hz–500 Hz.
Amplitude Ratio 1:1 or 4:1 (LF:HF).
Distortion/Spurious £0.000001% [–160 dB] at 4:1 ratio.
Digital Signal Generator Chapter 6: Specifications
Getting Started with Your 2700 Series Instrument 77

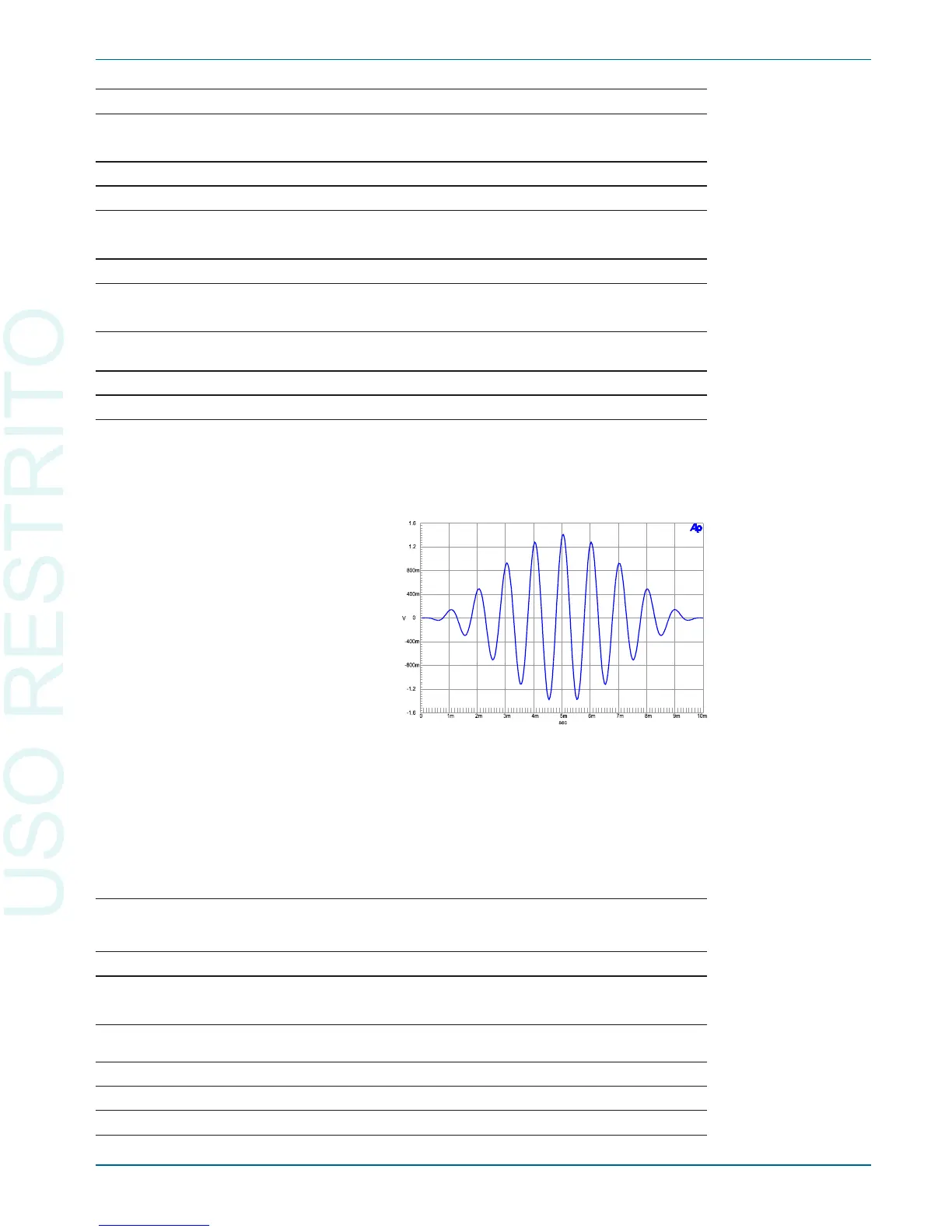

Figure 60. Shaped Sine Burst signal.
(1 kHz, 10 cycles)
