Place the drilling template provided in the package onto the foundation, aligning
with the marked area (C). Mark the four drilling holes (D) and remove the drilling
template.
Drill four holes with over 110 mm in depth and 20 mm in diameter in the
foundation at the marked positions (D) for inserting the expansion bolts into the
holes. Clean the drilling ashes.
For MaxiCharger DC 120
For MaxiCharger 240

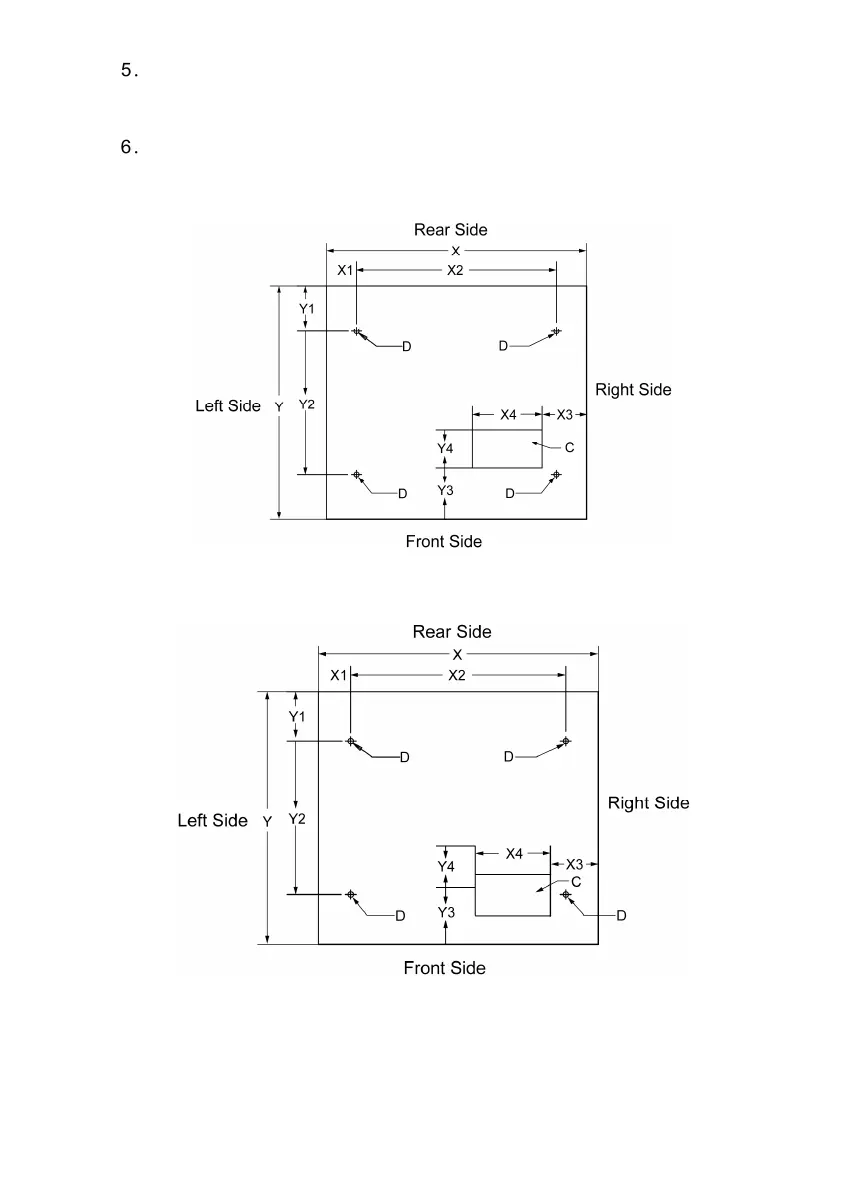

Figure 5-4 Drilling Holes
