AUX air conditioner service manual

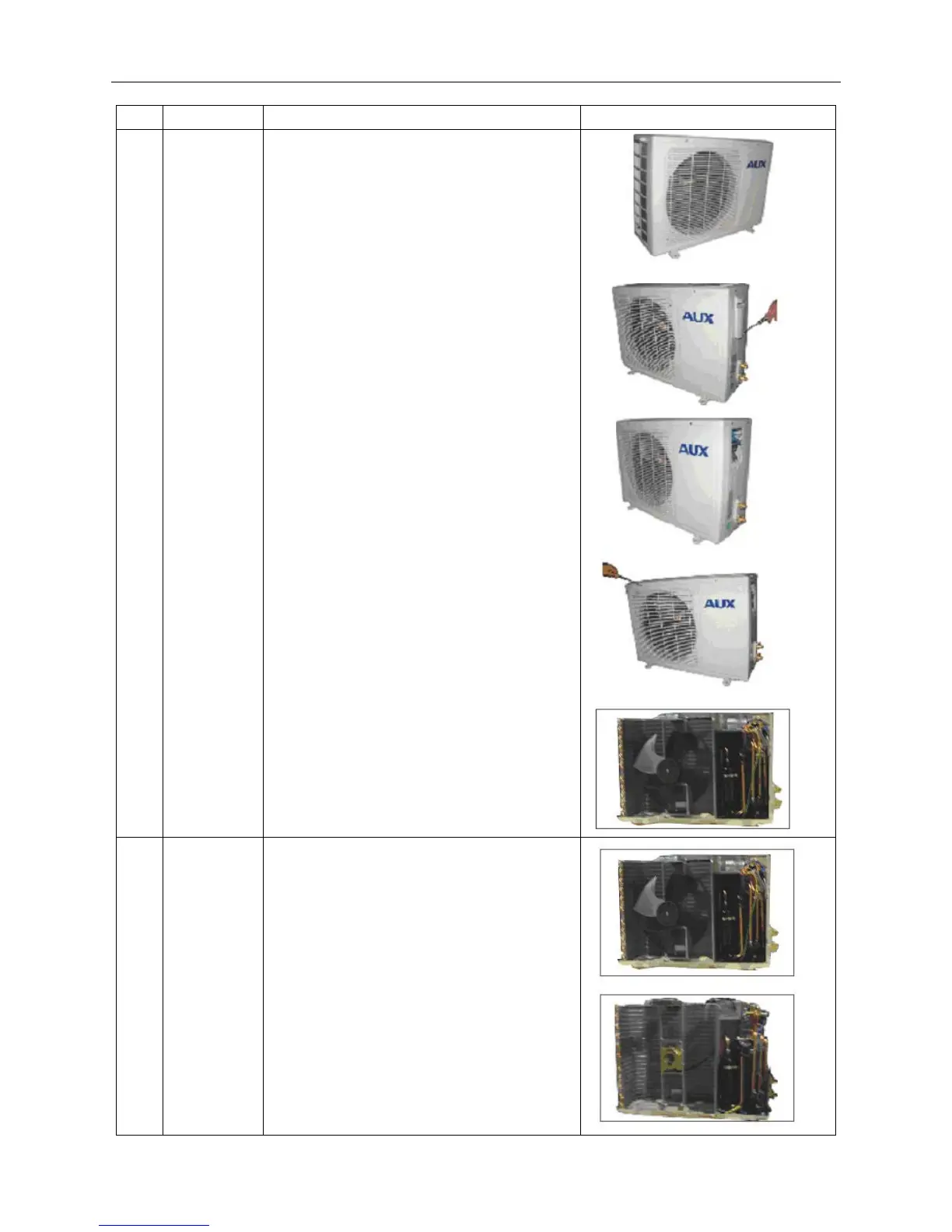

2. Outdoor unit:
No. Part Operation Process Remark
1 General
operation
1) Screw off one fastening bolt from the
electrical box cover, and offload the
box cover;
2) Pull out the interconnection cord from
the electrical box;
3) Screw off the five fastening bolts from
the cover board, and offload the board;
Screw the six fastening bolts from the
front panel, and offload the front
panel;
4) Screw off the fastening bolts from the
electrical assembly;
5) Screw off the eight fastening bolts and
offload the outer frame;
2 Outdoor
fan motor
1) Do No. “1” firstly;
2) Screw off the fastenings screws
clockwise.
3) Offload the fan.
4) Screw off the four fastening bolts and
offload the fan motor;
5) Screw off the two fastening bolts and
offload the fan motor bracket.
152
